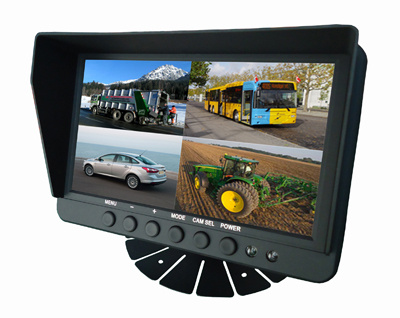

Model No.: TD0704A
Product features:
1. Screen size 7" / 16: 9
2. Innolux high brightness digital panel
3. With built-in quad control box function
4. Support four camera inputs
5. With remote controller
6. Mirror/Normal image can be set for each camera independently
7.7 languages OSD menu
8. Single View/Split view/Quad view selectable
9. PAL/NTSC/AUTO video format optional
10. Trigger priority: CAM1>CAM2>CAM3>CAM4
11. Automatically turn on when vehicle is placed in reverse
12. Day/night sensor to auto adjust screen brightness according to the surrounding luminance
13. Short circuit protection, Overload protection
Company brief introduction:
Shen Zhen Junson Security Technology Co. Ltd is a high-tech company who engaged in research & development, produce and sale. Our company devotes to design, produce and sale for many kinds of famous security systems such as access controller, electric bolt, electric-magnetic lock, power supply etc. All of the raw materials are imported, the craft of our products are excellent, and function steadily. We are also able to design the software for access controller management according to the customer's demands. Depending on the abundant technology and outstanding development staffs, the brand Junson has been established. Our products have been checked by National Public Security and Protection Department, we have got many certificates, such as CE, UL, FCC, etc.
Junson Security Technology Company paid much attention to the sale of the products in network. With the ingenious principle of management, the high quality of corporate culture, the justly manner of managerial style, we have achieved the brand of Junson today.
We promise that we will provide after sale service for all and we will regard honest management as the basis.
We can offer excellent technical supports and normative selling platform.
| Model No | TD0704A (Digital quad monitor) |
| Screen Size | 7" / 16: 9 (Innolux digital panel) |
| Brightness | 350cd/m 2 |
| Resolution | 336× 960pixels |
| Contrast ratio | 300: 1 |
| Wide view angle(CR> 10) | up/ down: 40/60 left/right: 60/60 |
| Video input | 4 Channels |
| Color system | PAL/NTSC |
| Housing protection class | IP30 |
| Power supply | 12V / 24V DC |
| Power consumption | ≤ 7W |
| Operating temperature | -20º C to +70º C |
| Storage temperature | -30º C to +80º C |
| Dimension | 180mm(L)× 124mm(W)× 50mm(D) |
| Weight Approx | 720g |
Shenzhen JunSon Security Technology Co., Ltd., is a high-tech company whom engaged in research & development, produce and sale. Our company devotes to design, produce and sale for many kinds of famous security systems. We offer: Magnetic lock. Electric lock. Electric strike. Electric bolt lock, door lock, Electronic lock. Lock panic bar, push bar exit, access controller, CCTV camera and so on. All of the raw materials are imported, the craft of our products are excellent, and function steadily. We are also able to design the software for access controller management according to the customer s demands. Depending on the abundant technology and outstanding development staffs, the brand Junson has been established. Our products have been checked by National Public Security and Protection Department, we have got many certificates, such as CE, UL, FCC, etc.
Junson Security Company pay more attention to the sale of the products in network. With the ingenious principle of management, the high quality of corporate culture, we have achieved the brand of Junson today.
We promise that we will provide after-selling service for all and we will regard honest management as the basis.
We can offer excellent technical supports and normative selling platform.
Junson Security has designed a kind of low temperature electric lock successfully using the high technology. Relying on our managerial principle Faith First, Quality First and Service First, we get our products sold well at home and aboard, holding a high praise in this field.
JUNSON is a brand growing fastly,
A team deserving trust,
A enterprise creating miracle continually,
A believable company.
We produce Magnetic lock. Electromagnetic lock. Electric lock. Electric strike. Electric bolt lock, door lock, Electronic lock. Lock panic bar, push bar exit, access controller, CCTV camera and so on.
