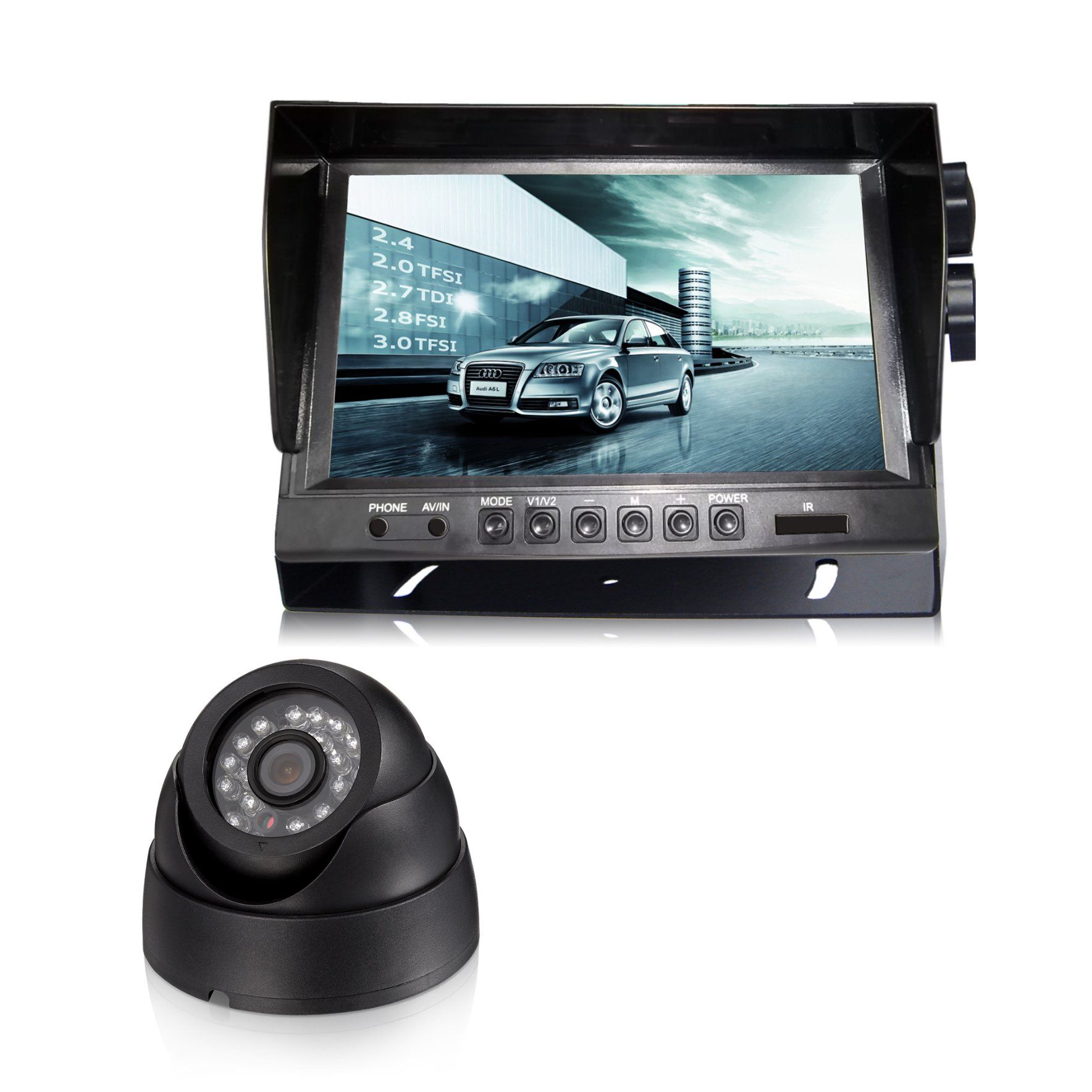

7" industrial grade reversing video system
Input voltage available from 10-36V DC
Mirror could be set separately in each channel with dimming function
3-channel video, audio and 3-auto triggers
Grid lines could be adjusted up or down, left or right
Built to withstand the shock and vibration associated with industrial applications
Dust and waterproof design, all connectors are waterproof
Meets the requirements for hot, cold weather also shock and vibration
20G for vibration and 100G for shock
User could adjust the OSD menu:
Could rename each channel
Could adjust the delay time in each channel
Could adjust trigger name on each channel
Brightness, contrast, audio mirror could be adjust in each channel
Specifications of 7 LCD monitor: (LED digital panel):
Resolution: 800 x 3 (RGB) x 480p
Contrast: 500:1
Brightness: 400 nits
Dot pitch: (H) 0.192 x (V) 0.1805p
Viewing angle
U: 50
D: 60
L/R: 70
Input power: 10-36V DC
System: PAL and NTSC
Respond time: 30ms
Shock resistant, specifically design for mobile use
Picture display format: 4:3/16:9
Eight languages OSD menu: Chinese, English, Russian, German, Spanish, Portuguese and French
Display with two video frequency input automatic/manual switcher
Includes flat surface/in-dash and adjustable universal mounts
Front panel controls with on-screen menu
Operation temperature:- 30 to +70ºC
Headrest installion optional
Key with light at night
Sunshade cover is easy to install and take off
Specifications of camera: day and night CCD camera:
1/3 CCD sharp sensor
Waterproof: IP69K
Pixels:
NTSC: (H) 769 x (V) 494p
PAL: (H) 752 x (V) 582p
Resolution: 600 TV lines
Lens shading compensation
Minimum light: 0 lux (LED ON)
Variable electronic shutter: 1/50,1/60, 1/100,000s
S/N ratio, more than 48 Db
Video output: 1Vp-p 75
Voltage: 12V DC (+/-15%)
Angle: 120 degree
18-piece IR
Vibrations resistant, especial design for mobile use
Camera optional: auto-heating when operation temperature is bellow 7ºC
24V optional for camera
| | Type | 16:9 wide screen |
| MONITOR | Resolution | 800 R.G.B x480 dots |
| | .Brightness | 400cd |
| | Power requirement | 12V-24V DC |
| | .IC & electronic component: | Tech-well .Industrial Grade IC |
| | Operating temperature | -20ºC to +75ºC |
| | MIRROR/NORMAL switch | Yes |
| | Speaker | Yes |
| | Reversing gear is engaged | Automatically |
| | Min illumination: | 0Lux (LED ON) |
| | IR led: | 18pcs |
| | Night Vision distance: | 45ft |
| | Waterproof | IP68 |
| camera | View angle: | 120° |
| | Operation Temp.: | -20ºC~+70ºC |
| | audio | audible(mic) |
| | Shell material | Zinc alloy |
| | Sensor | Sharp CCD |
Mingshang International Group has its head office in the Shenzhen China and consists of Shenzhen mingshang industrial co, Ltd, Mingzong technology co, Ltd and Mingshang high technology(huizhou) co, Ltd
Found in 2003, Mingshang has produced excellence car visual safety solutions to the worldwide vehicles markets, is the one of China's leading suoopliers of backup camera system, Rear view camera system, mobile DVR and so on.
MINGSHANG is one of China's leading suppliers and manufacturers for Wired and Wireless Rear View Camera Systems, and Mobile DVR for
- Commercial and School Buse
- RV's and Motorhomes.
- Cargo and Delivery Vans.
- Trucks and Trailers.
Products:
1. Trailer camera system
2. Forklift camera system
3. HD heavy duty camera system in wired and digital wireless
4. Mobile DVR
5. Wireless hitch camera system---for trailer, horsebox, caravan, forklift, Boat
6. Recordering 4CH wireless camera system
MINGSHANG has over 14 years of experience in designing and developing visual safety systems for eliminating blind spots around vehicles to avoid the challenges that today's vehicles drivers face out on the open road.
MINGSHANG is proudly to server Ford, GMC, YUTONG BUS, KINGLONG, and Dometic (Waeco).
MINGSHANG certified with TS16949: 2009 & ISO9001: 2008 International Quality Management System since 2011, also compliant with RoHS requirements. The certificates include CE, FCC, and E-MARK...etc.
