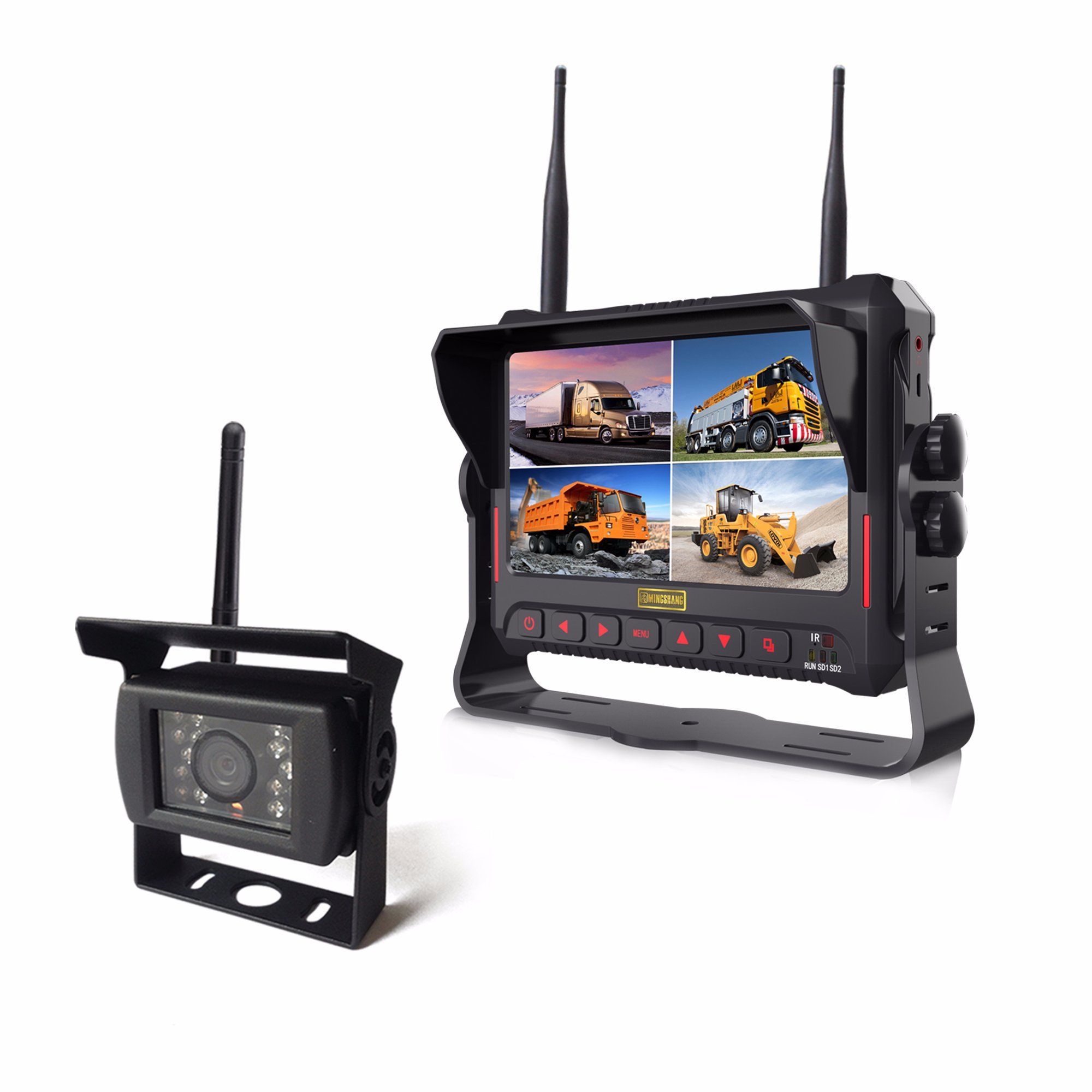

7" 4CH Digital Wireless Rear View System

Key Specifications/Special Features:
7-inch digital wireless camera system

Model: MS-708RSM

Digital wireless
No interference digital signal
Frequency: 2400MHz-2483.5MHz
Distance: 100m (barrier-free)
With barrier is about 32M
2CH video, 1 split view and 1 audio
With one trigger
With recorder function optional
With the switch off with and without backup line
Built to withstand the shock and vibration associated with industrial applications
Dust and waterproof design, all connectors are waterproof
Meet the requirements for hot, cold weather also shock and vibration
20G force for vibration an 100G for shock

Specification of 7" LCD monitor: (LED digital panel)
Resolution: 800 X 3 (RGB) X480
Contrast: 500:1
Dot pitch: 0.192 ( H) X 0.1805 (V)
Viewing angle: U: 50/D: 60, L/R: 70

Input power: DC 9-32V
System: PAL and NTSC
Respond time: 30ms
Shock-resistant, specifically design for mobile use
Picture display format: 4:3/16:9
Brightness: 450 nits
Includes flat surface/in-dash and adjustable universal mounts
Operating temperature: -30°C-+70°C
Headrest installation optional
Key with light at night
Sunshade cover is easy to install and take off
Operating voltage: DC 10-36V

Specification of camera:
Day and night camera
Color sensor
Waterproof: IP69K
System: NTSC: 720x480, PAL 756X504
Resolution: 480 TV lines
Minimum light: 0 lux (LED on, 18pcs IR)
Electron shutter: 1/100,000(s), on/off
S/N ratio: more than 48dB
Video output: 1Vp-p 75Ω
Voltage: DC 24V(+/-10%)
Vibrations-resistant, especial design for mobile use
With 120 degrees
Operating voltage: DC 10-36V
