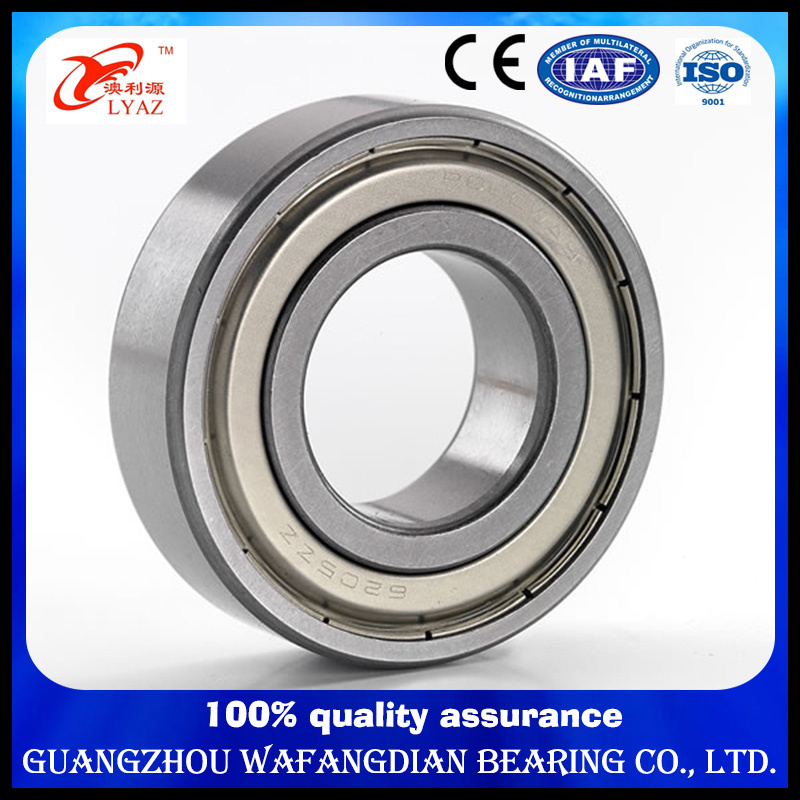

6208 Radial Ball Bearing 40X80X18mm Bearing for Motorcycle

Packaging & Delivery

Packaging Details:	1.Neutral Package:Plastic Bag+Carton+Pallet;  2.Commercial Package:Plastic Bag+Box+Carton+Pallet;  3.As Clients' Requirement.
Delivery Detail:	3-25days



6208 Bearing Information

Brand High Quality Motor Bearing 6208 Bearing  Item 6206 6207 6208 bearing  Ball Bearing seals ZZ LLU LLB OPEN  Material Gcr15 steel,carbon steel,stainless steel etc. Precision P0,P6,P5,P4,P2 Clearance C0,C2,C3,C4,C5 Bore size 30-40 mm Outer diameter 62-80 mm Cage type brass;steel plate,nylon,aluminium alloy etc. Seal type open,sealed(ZZ,2RS) Ball Bearings Feature Long-life with high quality Low-nosie with strict controlling the quality of deep groove ball bearing High-load by the advanced high-technical design Competitive price, which has the most valuable OEM service offered, to meet the customers'requirements Application gearbox, motor,auto,reduction box,engine machinery,mining machinery,bicycles,etc Bearing Package Pallet,wooden case,commercial packaging or as customers' requirement. Price terms FOB,CFR,CIF,EXW delivery time 3-5 days acccording the quantity   Deep groove ball bearing is one of the most common types of rolling bearing. Basic deep groove ball bearing consists of an outer ring, an inner ring, a set of steel ball and a set of cage. Deep groove ball bearing type has a single row and double row two kinds, deep groove ball structure is sealed and open two kinds of structure, open without sealing structure refers to the bearing, seal type deep groove ball into dust seal and oil seal.


Details of 6208 Bearing
Inner Size: 40mm
Outer Size: 80mm
Thickness: 18mm
Material: Chrome steel
Brand: LYAZ or OEM
Packing: Tube+Box

Most Commonly Used Deep Groove Ball Bearing:


Bearing  NO.	Old NO.	ID	OD	B	Cr	Cor	Max Speed (Grease)	Max Speed (Oil)	Mass
		(mm)	(mm)	(mm)	(kN)	(kN)	(r/min)	(r/min)	(kg)
606	180016	6	17	6	1.95	0.74	43000	51000	0.0058
607	17	7	19	6	2.6	1.05	40000	47000	0.0076
608	18	8	22	7	3.3	1.35	34000	41000	0.012
609	19	9	24	7	3.35	1.4	33000	40000	0.015
626	26	6	19	6	2.6	1.05	35000	43000	0.0081
627	27	7	22	7	3.3	1.35	31000	37000	0.013
628	28	8	24	8	3.35	1.4	28000	35000	0.016
629	29	9	26	8	4.55	2	27000	33000	0.02
6000	100	10	26	8	4.58	1.98	22000	30000	0.019
6001	101	12	28	8	5.1	2.38	20000	26000	0.022
6002	102	15	32	9	5.58	2.85	19000	24000	0.03
6003	103	17	35	10	6	3.25	17000	21000	0.04
6004	104	20	42	12	9.38	5.02	16000	19000	0.069
6005	105	25	47	12	10.1	5.85	15000	18000	0.08
6006	106	30	55	13	13.2	8.25	13000	15000	0.116
6007	107	35	62	14	15.9	10.3	11000	13000	0.155
6008	108	40	68	15	17	11.8	9000	11000	0.185
6009	109	45	75	16	21	14.8	8000	10000	0.23
6010	110	50	80	16	22	16.2	7000	9000	0.25

6200	200	10	30	9	5.1	2.38	20000	26000	0.032
6201	201	12	32	10	6.82	3.05	19000	24000	0.037
6202	202	15	35	11	7.65	3.72	18000	22000	0.045
6203	203	17	40	12	9.58	4.78	16000	20000	0.065
6204	204	20	47	14	12.8	6.65	14000	18000	0.106
6205	205	25	52	15	14	7.85	13000	15000	0.128
6206	206	30	62	16	19.5	11.3	11000	13000	0.199
6207	207	35	72	17	25.7	15.4	9200	11000	0.288
6208	208	40	80	18	29.5	18	8000	10000	0.368
6209	209	45	85	19	31.5	20.5	7000	9000	0.416
6210	210	50	90	20	35	23.2	6700	8500	0.463

6300	300	10	35	11	7.65	3.48	18000	24000	0.053
6301	301	12	37	12	9.72	5.08	17000	22000	0.06
6302	302	15	42	13	11.5	5.42	16000	20000	0.082
6303	303	17	47	14	13.5	6.58	15000	18000	0.115
6304	304	20	52	15	15.8	7.88	13000	16000	0.142
6305	305	25	62	17	20.6	11.3	11000	13000	0.232
6306	306	30	72	19	26.7	15	6600	12000	0.346
6307	307	35	80	21	33.4	19.3	8500	10000	0.457
6308	308	40	90	23	40.8	24	7000	8500	0.639
6309	309	45	100	25	52.8	31.8	6300	7500	0.837
6310	310	50	110	27	61.8	38	6000	7000	1.082

6403	403	17	62	17	22.7	10.8	11000	15000	0.27
6404	404	20	72	19	31	15.2	9500	13000	0.4
6405	405	25	80	21	36.1	19.4	9100	11000	0.53
6406	406	30	90	23	43.4	23.9	8100	9700	0.735
6407	407	35	100	25	55	31	7200	8600	0.952
6408	408	40	110	27	65.5	37.5	6300	8000	1.221
6409	409	45	120	29	77.5	45.5	5600	7000	1.52
6410	410	50	130	31	922	55.2	5300	6300	1.855

16001	7000101	12	28	7	5.1	2.4	20000	26000	0.024
16002	7000102	15	32	8	5.6	2.8	19000	24000	0.025
16003	7000103	17	35	8	6	3.3	18000	22000	0.032
16004	7000104	20	42	8	7.9	4.5	16000	19000	0.05
16005	7000105	25	47	8	8.85	5.6	15000	18000	0.06
16006	7000106	30	55	9	11.2	7.35	13000	15000	0.085
16007	7000107	35	62	9	12.2	8.85	11000	13000	0.11
16008	7000108	40	68	9	12.6	9.6	9000	11000	0.125
16009	7000109	45	75	10	15.6	12.2	8000	10000	0.155
16010	7000110	50	80	10	16.1	13.1	8000	9500	0.166



1.  6206 6207 6208 NTN Bearing Related Bearing Catalogue


New Items	Old Items	Specifications(dxDxB)	Weight/kg
NTN Bearing 6201	201	12x32x10	0.0365
NTN Bearing 6202	202	15x35x11	0.0431
NTN Bearing 6203	203	17x40x12	0.065
NTN Bearing 6204	204	20x47x14	0.11
NTN Bearing 6205	205	25x52x15	0.134
NTN Bearing 6206	206	30x62x16	0.218
NTN Bearing 6207	207	35x72x17	0.284
NTN Bearing 6208	208	40x80x18	0.37
NTN Bearing 6209	209	45x85x19	0.428
NTN Bearing 6210	210	50x90x20	0.462
NTN Bearing 6211	211	55x100x21	0.59
NTN Bearing 6212	212	60x110x22	0.8
NTN Bearing 6213	213	65x120x23	1.01
NTN Bearing 6214	214	70x125x24	1.34
NTN Bearing 6215	215	75x130x25	1.16
NTN Bearing 6216	216	80x140x26	1.39
NTN Bearing 6217	217	85x150x28	1.92

•Materials of Bearings
Materials for bearing rings and parts largely determine the bearing's performance and life. LYAZ Bearings puts more efforts to select materials for bearing ring and part suppliers in a rigorous manner.
Materials and components of bearing rings for LYAZ Bearings are provided by the world's top suppliers,especially for serving bearing manufacturers, fundamentally solving the issue that our bearings lag behind imported bearings in terms of materials for a long time.
LYAZ Bearings boasts a set of strict incoming goods inspection system. Before being put into storage, every batch of steels and parts is under systemic inspection, including analysis of material composition, metallographic analysis, accuracy check, assembly test, etc.

•Materials for Bearing Ring and Roller Body
Bearing ring and roller body are mainly made of high-Cr bearing steel. Listed below are compositions of material for bearing ring and roller body.

Chemical Composition(%)
NO.	C	Mn	Si	Cr	S	P	Ni	Cu	HB
					<
GCr15 DIN 100 GCr6  JIS UJ2        AISI52100      SKF3	0.95~1.05	0.20~0.4	0.15~0.35	1.30~1.65	0.02	0.027	0.3	0.25	170~207

Material for bearing ring and roller body mainly consists of high C-Cr bearing steel.

•Material of cages
Material of cages need good wear resistance, stable size and metal strength. Therefore, operation environment should be mainly considered in selection of material of cages.

Cold-rolled Steel Cage
These light cages hold a high strength with reduced friction and wear in an effective way after surface treatment. The following table covers compositions of material for cold-rolled steel sheet.

No.	Chemical Composition%
JISG 3141 SPCC	C	Si	Mn	P	S	Ni	Cr
	<0.12	-	<0.5	<0.04	0.045	-	-

Brass Cage
Brass cage is adopted in small and medium bearings. However, brass cage is not suitable for compressors with ammonia cooling due to potential seasonal cracking of brass. It is recommended to replace it with iron cage.
Nylon cage
According to the type and usage of bearings, nylon cages are widely adopted, but they are inappropriate for environments where the temperature is above 120ºC or below 40 ºC. Most of cast molding cages adopt nylon PA66 material, with or without glass fiber reinforcement whose advantage is a good combination of strength and elasticity.

•Materials for Dust Shield and Sealed ring

Material for dust shield
LYAZ Bearings use cold-rolled tin plate as the standard mateiral for dust shields, but also use stainless steel of AISI-300 specification sometimes.

Material for seal ring
Seal rings are mainly made of NBR. For high temperature, fluoro rubbers and silicon rubbers are widely used as well.

»Packaging and Shipping
1. By Express: DHL, FEDEX, UPS, TNT, SF EXPRESS and EMS.
2. By Air: We can ship from Shandong, Guangzhou etc.
3. By Sea: We can offer you FOB Qingdao.
4. We can also send bearings to your forwarder or agent in China, who can arrange shipment for you.

Our Services
1. We are Professional bearing factory since 2004.We offer high quality bearing with competitive price.
2. 24-hour response on line and provide technical support.
3. Huge stock goods ensure you Very Short Delivery Time(Generally 1- 3 days after payment for stocks, 15 - 30 days for OEM and new items.
4. Good after-sale service (12 months quality warranty, money can be deducted or refund if any quality problem).
5. OEM/Customized service are welcomed.
6. Various kinds of bearings and brands available.
7.100% test the quality and packing before delivery.
8. Free sample available.

Company Information
 Our factory has been founded for around 30 years, We are a professional manufacturer of ball bearings and roller bearings, including deep groove ball bearing, self-aligning bearing, cylindrical roller bearing, tapered roller bearings, with our good team work and hard working of skillful staffs and our professional engineers, we got very good reputation in the world market, especially in Mid-eastern countries. Thanks for every customer's support and trust, our company hope to establish mutual benefit and development business relations with you!


Why Choose LYAZ
ONLY THE BEST STEEL				ONLY THE BEST RUBBER
LYAZ only uses the best chrome steel. All Saifan parts that contain metal use an expensive heat treatment process that improves metal strength and performance, also our parts use a higher level of polish to allow the bearing to roll smoother and last longer.				Each Individual component of this part is made with high quality materials. Unlike our competitors Saifan uses only high quality Natural Rubber (75%) and (25%) synthetic Rubber. This means that it is more durable, will last longer, and can handle temperatures from -40 to +140 degrees. The Rubber won't rub off on your hand like the cheap replacement parts offered by competitors
ONE YEAR WARRANTY				QUALITY IS EVERYTHING
All LYAZ Parts come with a 1 Year Warranty backed by great customer service.				The synthetic lubricant Saifan uses is 10x as expensive as our competitors, and lasts 3x as long.
GERMANY QUALITY CONTROL
LYAZ Germany quality control experts ensure that all parts are of the utmost quality. We have specially developed metals and rubbers that create a super durable and long lasting end product.
