6.5 PRO Audio Midrange Speaker 225W

Name: 6.5 PRO Audio Midrange Speaker 225W
Brand: ibuyautoparts.com
SKU: 691505151
Availability: InStock
Rating: 4.5 (128 reviews)

Price:	US $ 4.5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

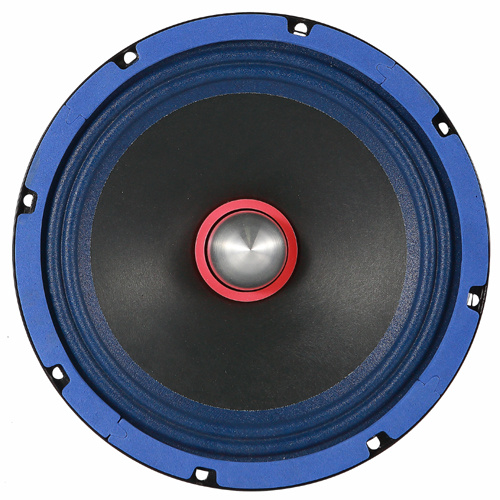

This 6.5" high-powered Bullet midrange speaker delivers 225 watts of Max power and 80 watts of RMS power
Black color paper cone with Red Bullet, cloth Surround, Black Steel basket
1.5-inch high temperature kapton voice coil with a 23-ounce magnet and rubber boot cover
Impedance: 8-ohms. Sensitivity: 94 dB. Frequency response: 160 - 10 KHz..

6" Cloth Surround Midrange / 225 Watts

FEATURES

Max Power - 225 Watts
RMS Power - 80 Watts
Sensitivity - 104dB
Impedance - 8 Ohm
Barium Ferrite Magnet

MODEL	PRO-MID605N	PRO-MID805N	PRO-MID1005N
Specification:
Nominal Diameter	6.5 inch	8 inch	10 inch
Nominal Impedance	8 Ohm	8 Ohm	8 Ohm
Minimum Impedance	6.2 Ohm	5.6 Ohm	5.4 Ohm
Continous Power Handling	225Watts	450Watts	500Watts
Nominal Power Handling(AES)	80 Watts	120 Watts	150 Watts
Sensitivity(1W/1M)	94 dB	95.0dB	96.0dB
Frequency Rang	150-8K Hz	110-8K HZ	96-6.5K HZ
Voice Coil Diameter	1.5" EISV-CCAW wire	1.5" EISV-CCAW wire	2" EISV-CCAW wire
Magnet Material	Magnet	Magnet	Magnet
Cone Material	Cloth Edge with Paper Cone	Cloth Edge with Paper Cone	Cloth Edge with Paper Cone
Frame Material	Steel	Steel	Steel

Prod Model:	PRO-MID65N
Type:	Speaker
Material:	Iron
Sound Frequency:	Mid Pitch
Connection Mode:	Double Wire
Contact Point:	With Contact Point
Energy Exchanging Mechanism:	Electrical
Speaker Design:	Bullet Midrange Speaker
Shape:	Round
Voltage:	12-24V
Current:	5A

Established in 2008, Ningbo ASM PRO & Car Audio Speakers manufacturer, has become one of the largest companies specialized in Subwoofer, Car speakers, Ceiling speakers, Boom box, professional sound systems, and other audio accessories.

As an audio equipment manufacturer with an area of 1500sq. M., 6 production lines(2 lines for car audio systems, 2 lines for professional audio systems, 2 lines for relevant audio accessories), over 100 employees, and the certificate of ISO9001: 2000 system, we still keeps specialized in R&D, sales, and OEM/ODM services. 80-95% of our products export to overseas markets, such as the United States, Europe, Middle-east, and South America etc.

The past 10 years was a glorious time for ASM, but ASM will certainly makes greater achievements in the future international market competition. ASM promises to offer his best services to his customers forever.

Welcome for your order.
