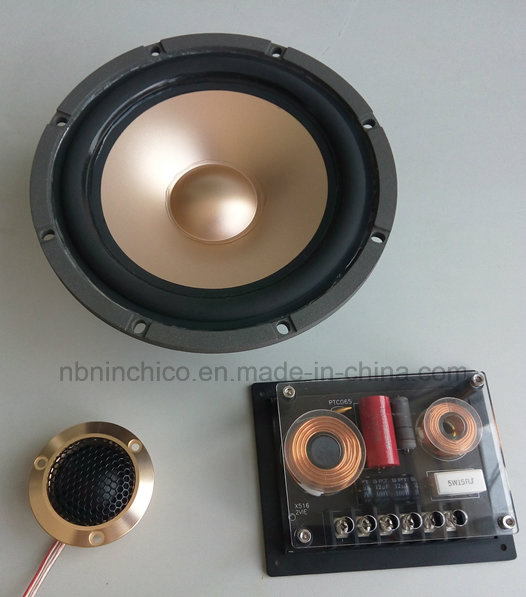

6.5 Inches 50-20000Hz Car Speaker X365.1

6.5 Inches 50-20000Hz Car Speaker X365.1
Price: Negotiableset
Min Order: 500set
Pay Type: L/C,T/T

SpecificationsParametersX365.1
ModelX365.1Re /Ohms3.6   Ohms6.5in Speaker

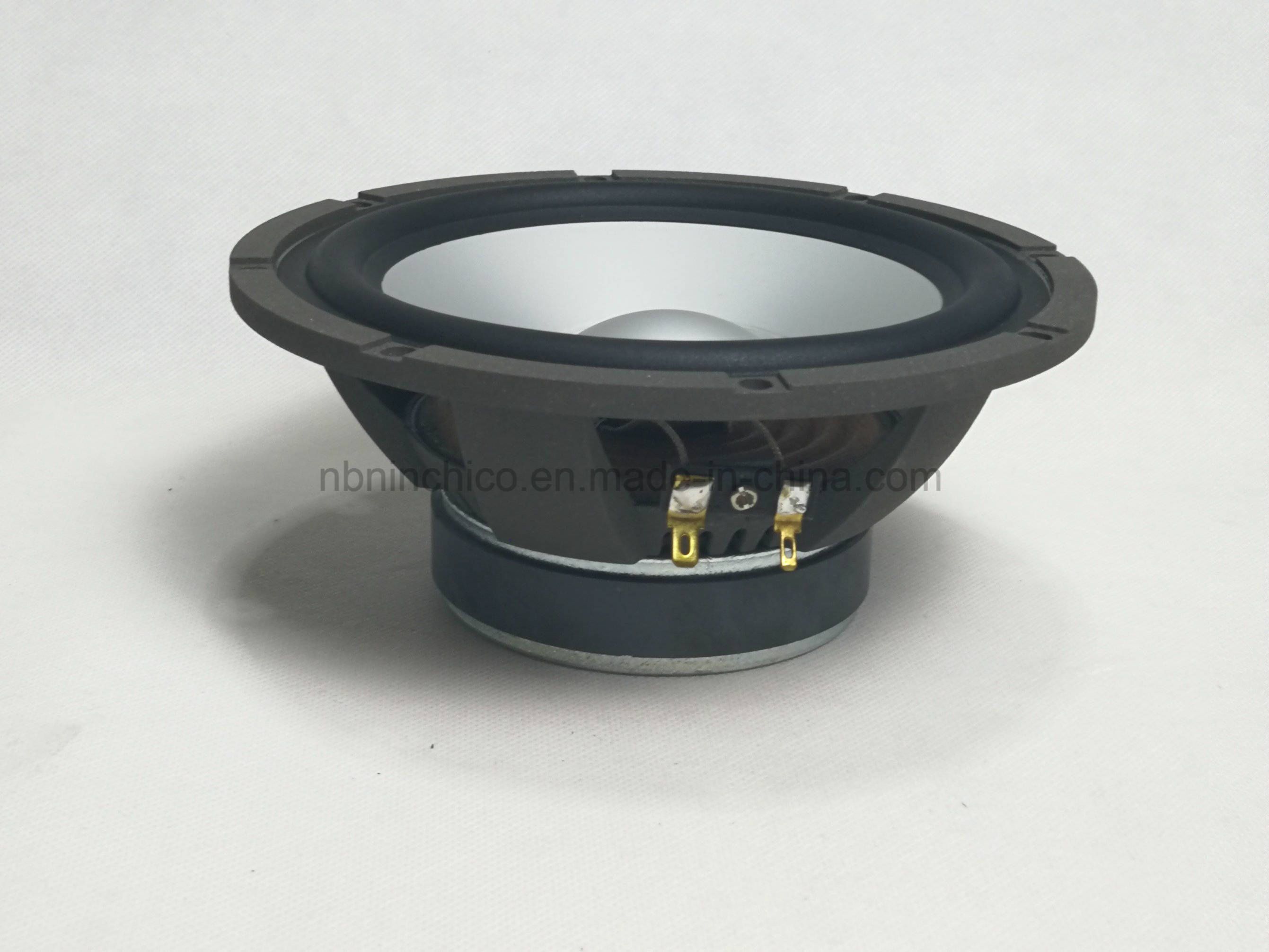

Nominal Diameter6.5in/166mmFs (Hz)- Free Air Resonance55  Hzwoofer Santoprene dege Golden aluminum anode basin,1" voice coil
Nominal Impedance/Ohms4  OhmsNominal Impedance/Ohms4  Ohms
Frequency Response /Hz50 -20000  HzPower Rating RMS / Peak65W/150W HF driver with silk diaphragm,1inVC,Aluminium shellCNC,Golden anode
Woofer/Tweeter Voice Coil 1in/25.5mm(1in/25.4mm)Qms7.8
Woofer/Tweeter Cone Rubber+AL/ SilkQes0.75Ferrite magnet:90*15mm
Overall Diameter mm/inchΦ165.5mm/6.51inQts0.68T yoke/Front plate thickness 5mm
Mounting Cutout mm/inchΦ143mm/5.63inBL5.8






Prod Model: X365.1
Normal Impedance: 4ohms
Frequency Range: 50Hz-20kHz
Woofer/Tweeter Cone: Rubber+Al/Silk
Power Rating RMS: 65W/150W
Magnet: Ferrite
Type: Speaker
Speaker Design: Tweeter
Shape: Basin-shaped
Material: Aluminum
Sound Frequency: Mid Pitch
Voltage: 12V
Connection Mode: Double Wire
Current: 2.8A
Contact Point: With Contact Point
Energy Exchanging Mechanism: Electromagnetic
Kingberly serves as an OEM supplier that specializes in car audio system and professional audio system, located in Ningbo China since 2001. We are selling our products to world widely, we are offering our clients the following services and products:

Complete audio system design solutions, including acoustic design, electronic circuit design, 3D mechanical design.

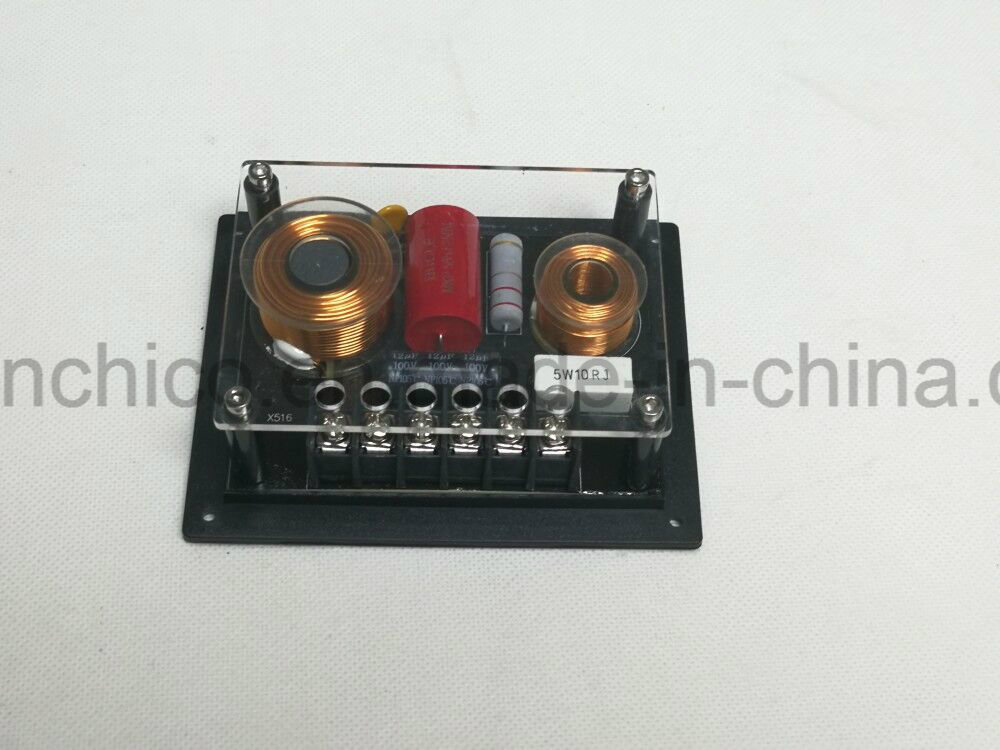

Key components for audio system, such as loudspeaker (subwoofer, woofer, midrange, compression driver, tweeter, crossover)

Key parts for audio system, such as speaker enclosure (wooden box, plastic box), plastic injection parts: Precisely machined metal, cone.

We are sure to sell all products in excellent quality with professional technology, good &timely service,

We are wiiling to customizing products according to customer's requirement, offering support of technology, and keep it in secretly for all.

We are following quality control in every procedure, making tracks for shipping, and offering shipping documents on time.

We will react it in 1 days when receiving feedback information about quality from customers, and promise to give a term of settlement in 2 days.

Kingberly is eager to built good business relation with you, and looking forwarder to hear news from you in soon future.
