6-3-2.5m Spray Booth 3-3-2.5m Oven Linking
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
PC-CD-M |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Warranty Time: |
2 Years |
| Service Time: |
Lifelong Maintenance |
| Color: |
White or Blue |
| Voltage Requires: |
380V/3p, 220V/3p Or220V/1p |
| Paint Mist Treatment: |
Dry-type |
| Heating Mode: |
Diesel |
| Airflow Direction: |
Fully Undershot-type |
| Certification: |
CE |
| Condition: |
New |
| Type: |
Painting Booth |
| Brand: |
Paintcolor |
Product Description
Paintcolor Spray Booth 6-3-2.5m paint booth linking 3-3-2.5m ovenAny booth size request can be met!!!Paintcolor company quantifies the production of standard spray booth; at the same time, "one-to-one" service is our important and special sale method and service. For different countries and the special requirements of different customers, we make the design and produce the booth based on the size of the site, the workpiece, the type of paint and the budget level. It really 100% stands on your point to solve all the problems. Paintcolor is the one specialty spray booth manufacturer you can not miss.

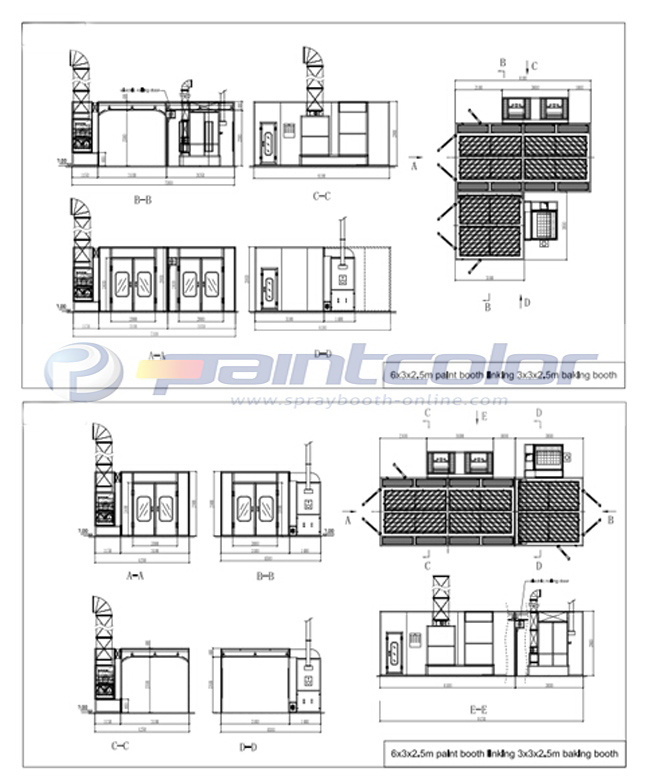

Specification1) Outside dimension: 6100*3100*2900mm(L*W*H);2) Inside dimension: 6000*3000*2500mm(L*W*H);3) Basement: none, exhaust from the back wall;4) Main door: 2-fold( 2 leaf), 2000*2400 mm (W*H);5) Wall Panels: thickness is 50 mm, and insulation is flame-resistant and heat-preserving EPS panel;0.476mm double skinned sheet;galvanized sheet roof plate;6) Lighting: Ceiling Lights: 8Groups*4Pcs=32Pcs *36W;Philip tube;7) Glass: all glass is toughened glass;8) Generator: back intake air, back extract air, quadrate steel frame, coated steel;9) Intake and exhaust air system: Intake fan: 1 centrifugal fan, 7.5KW motor, capacity: 20000m3/h;Extract fan: 1 centrifugal fan, 5.5KW motor, capacity: 15000m3/h;Extract pipe: 700*700*1000mm, 4m straight pipe and 1 elbow;10) Filtering system: Pre-filter, high efficiency filter (ceiling filter), extract filter, active carbon filter;11) Control box: PLC control;12) The total power: 14.5KW;Specification1) Outside dimension: 3100*3050*2900mm(L*W*H);2) Inside dimension: 3000*3000*2500mm(L*W*H);3) Basement: none, exhaust from the back wall;4) Linking door: electric rolling door;5) Wall Panels: thickness is 50 mm, and insulation is flame-resistant and heat-preserving rock wool panel;0.476mm double skinned sheet;galvanized sheet roof plate;6) Lighting: Side Light: 8Pcs *36W;Philip tube;7) Glass: all glass is toughened glass;8) Generator: back intake air, back extract air, quadrate steel frame, coated steel;9) Intake and exhaust air system: Intake fan: 1 centrifugal fan, 2.2KW motor, capacity: 6000m3/h;Extract pipe: 300*300*1000mm, 4m straight pipe and 1 elbow;10) Heating system: G10 diesel burner, with 100000kcal heating;11) Filtering system: Pre-filter, high efficiency filter (ceiling filter), extract filter, active carbon filter;12) Control box: PLC control;13) The total power: 3KW
Guangzhou Paintcolor Mechanical Equipment Co., Ltd. Started in 1999 and was established in 2005. It's an enterprises engaged in the field of surface treatment technology and focused on painting and coating equipment research, development, production and sales. The company is located in China's most developed industrial areas Guangzhou City, Guangdong Province. It takes 20mins to Guangzhou Baiyun International Airport. The new company Foshan Paintcolor Trade Co., Ltd was established in 2017. It's an independent sale center; Elaborate product promotion for better customer experience and service support.
Our main products includes paint booth, car spray booth, industrial paint booth, powder spray booth, auto shower testing booth, sheet metal machines, reciprocating machine, cyclone powder recovery system, powder gun, and powder coating line. Products have SGS and CE certificate.
The company has consistently adhered to the excellent staff, advanced technology and sophisticated equipment, and strict implementation of quality management system ISO900I. With "accurate, reliable, professional" the spirit of the production and service faith, the company has grown in strength and won the customers trust in the past ten years. Currently our products are sold throughout the country 34 provinces, autonomous regions and municipalities, and exported to the United States, Russia, Germany, Ghana, Indonesia and other countries.
We actively participate in industry exchanges and outreach activities. In the long process of development, we have established long-term good relations of cooperation with many large domestic manufacturers, based on our perfect product quality, good performance, and leading technology.
We have confidence to face the future challenge as we do 'customer first, service first'. If you are finding the cooperator-reducing costs, improving quality and persistent service, 'Paintcolor' is one of the best choose you can't miss.
