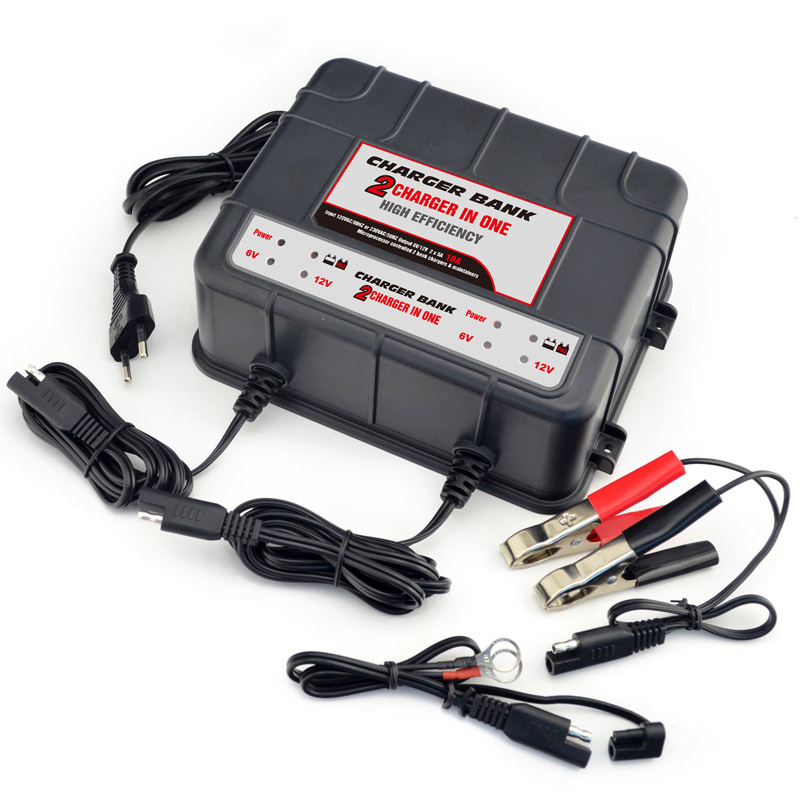

TE4-0260 SERIES AUTOMATIC SMART BANK BATTERY
CHARGERS
PRODUCT FEATURES
- Simultaneously charges and/or maintains up to five 6V or 12V lead acid batteries (WET, MF, AGM and GEL);
- 6V or 12V 5A per charging bank;
- Charging voltage auto select;
- No risk of over-charging;
- Spark proof;
- Over heat protection;
- Full protected against short circuit and wrong connections;
- With LED indicators;
- Battery recovery -- For 12V batteries voltage lower than 11V±0.5V, or 6V batteries voltage lower than 5.5V±0.5V, the charger could
- recover the battery. It is very easy to operate.
- Plug in the AC power;
- Now connect the output clamps/terminal rings with the battery correctly;
- This charger begins charging with 0.8A low current to recover the batteries automatically;
IMPORTANT -- If the battery is totally dead (below 3 volts) the Bank charger will not start. This is due to its internal safety circuit. The
charger safety circuit must sense more than 3 volts before it will allow the charger to turn on. If the battery voltage is below 3 volts, the
charger will not operate and the lights will not turn on. Have the battery checked by a dealer if the battery voltage is very low. Most 12
volt lead acid batteries are likely to be defective if their voltage is below 9 volts.
TECHNICAL DATAInput Voltage: | 105-125VAC, 60Hz |
Output Voltage: | 6V & 12V (auto-select) |
Efficiency: | >75% |
Charging Voltage: | 14.4V±0.25V (for 12V battery) or 7.2V±0.20V (for 6V battery) |
Charging Current | TE4-0260 | TE4-0260U | TE4-0261 | TE4-0261U | TE4-0262 | TE4-0262U |
1.5A | 1.5A | 2A | 2A | 2A | 2A |
With 2 USB ports | - | Y | - | Y | - | Y |
Bank Q"TT | 5 | 5 | 4 | 4 | 3 | 3 |
Ambient Temp: | -10ºC to +40ºC |
Battery Types: | 6V & 12V lead-acid batteries (WET, MF, AGM and GEL) |
Housing Protection: | IP65 (Dust and Splash proof) |
Our Services1. Reply your enquiry in 24 working hours
2. Experienced staffs answer all your questions in fluent English
3.Customized design is available .
4.Exclusive and unique solution can be provided to our customer by our well-trained and professional and staffs
5. Special discount and protection of sales area provided to our distributor

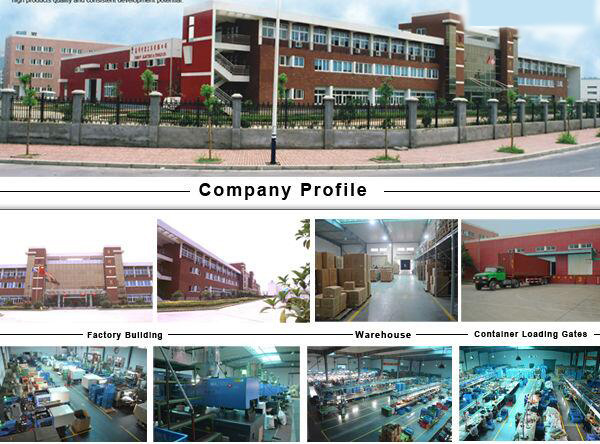

Company Information
