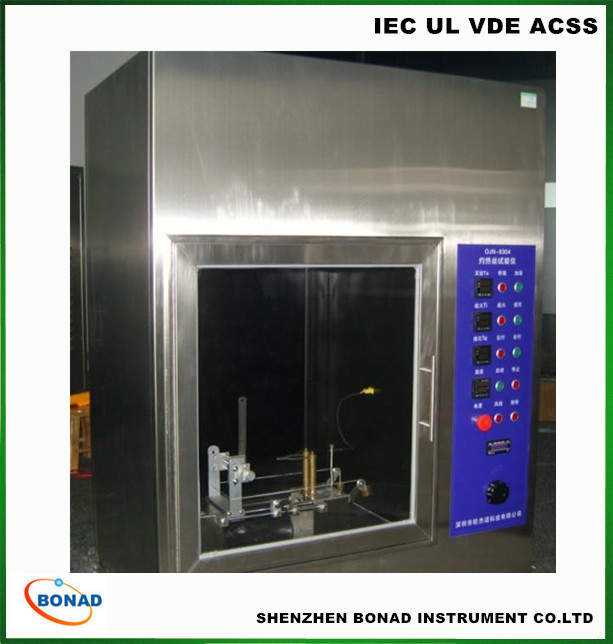

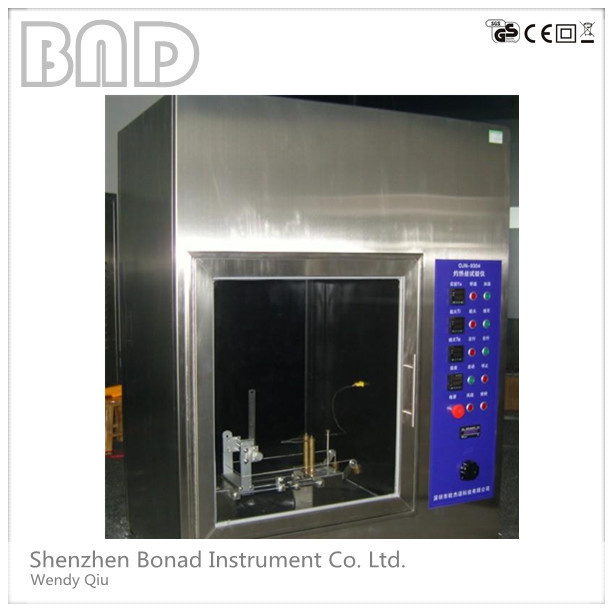

0.5mm K Type Thermocouple Automatic Glow Wire Test Apparatus

0.5mm K Type Thermocouple Automatic Glow Wire Test Apparatus
Price: US $ 2999-4999/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Contact Supplier
Showroom Product Company Profile
0.5mm K Type Thermocouple Automatic Glow Wire Test Apparatus

1,The test apparatus comforms to IEC6069
5-2-10, UL 746A, GB/T5169.10, GB4706.1

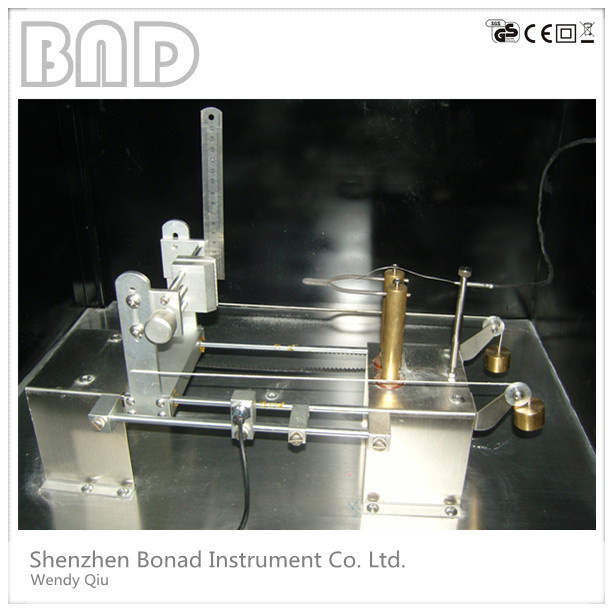

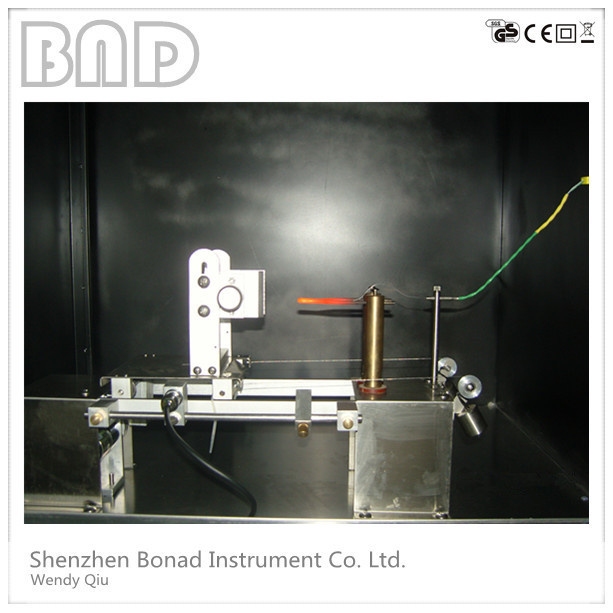

2, The glow wire test apparatus heat the stipulated material, Ni80/Cr20, and heating wire, nichrome wire with diameter of 4 mm with high current up to test temperature  550 ºC ~ 960 ºC. After 1 minute, it burn the specimen verticality for 30s with specified pressure 1.0N. The ignitability of electric and electronic equipments is tested by judging whether the specimen and bedding materials are ignited or deciding the length of burning time; also, the ignitability, ignition temperature(GWIT) , flammability and flammability index of the solid insulating material and some other solid combustible materials are tested in this way.

3,The glow wire test apparatus is usually applied to the research, production and quality testing departments for electric and electronic products as well as their parts and components, such as lighting equipment, low-voltage apparatus, electric instrument.



 Technical parameters
Glow wire temperature500 ~ 1000 °C± 2 °C continuous adjustable
Searing time0-999.9 s ± 0.1 s adjustable (usually selected for 30s)
Light-off time0-999.9 s ± 0.1 s, automatic recording, manual timeout
Fire out timeFire out time
ThermocoupleΦ 0.5 mm K type imported sheathed thermocouple.
Glow wireGlow wire
Ironing depth7mm ± 0.5 mm
Sample pressure1N ± 0.2 N
Test speed10mm/s-25mm/s
Test backgroundblack background
Test processautomatic control, independent convulsions
Consult standardGB/T5169.10-2006 , IEC60695-2-10:2000,UL746A
Studio volume0.5 cubic, stainless steel box (according to customer requirements 0.75 cubic or 1 cubic)








Prod Model: iec60695-2-10
Advantage: Advantage
Apply To: Plastic Flametester Glow Wire Test Equipment
Certificate: Ce,RoHS,Cnas
Chamber: >=0.5m3
Power Supply: 800V 220V 48-60Hz
Test Background: Black Background
Warranty: 1year
Delivery Time: 3-7days
MOQ: 1PCS
Certification: ISO
Update Method: by Hard Disk
