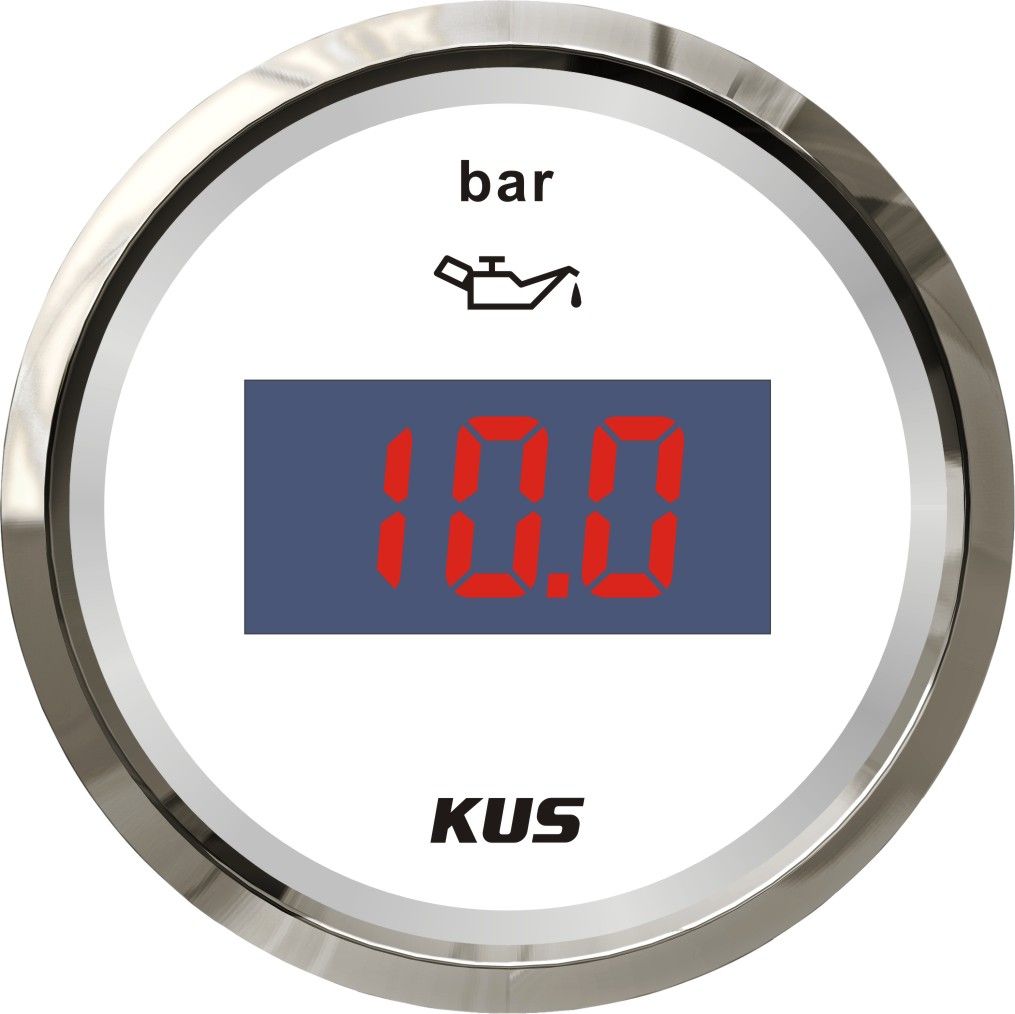

52mm Digital Oil Pressure Gauge Oil Pressure Meter 0-5 Bar White Faceplate for Car Truck Universal Boat Yacht

Product Description
Oil pressure gauge:
1.Indicating Range:0-5Bar
2.Working Voltage:12V/24V
3.Installation Dimension:52mm
4.Signal: 10-184ohm
5.Color: white
6.Bezel: SS 316



Specifications
Be suitable for all kinds of pressure sensors, and display the value of air or liquid pressure
Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
Operating temperature: -40°C ~+85°C
Protection rank : IP67.




Product Information
Product Name: Oil pressure gauge CEPR-WS-0-5
Art No.  SV-KY15115
Operating voltage: 12V/24V
Fixing dimension: 52mm.
Scale Part: 0-4/4
Description: Magnet Movement gauge
Weight: 100g/each one pcs
Resistance output: 0-5 Bar
Bezels with black, white plastic and stainless steel can be customized, and faceplate with white, black can be choosed.
MOQ : 50~100pcs. In the beginning, we can suppose you order small quantity for your test."OEM" can be customized.
Accessories:Installation Instructions; Wires and resistance.


Warranty Time:

Within one year after shipment, except for improper installation and operations by user.



 Product Features
Protection grade is IP67, the whole body is completely waterproof;
Excellent antifogging function;
316 Stainless steel bezel with curved glass;
Convenient Installation by multi-pliug socket connecting way;
Red and yellow dual-color background light can be choosed;
The moving magnet gauge need to connect to extraresistors for 8V-16V working voltage.
