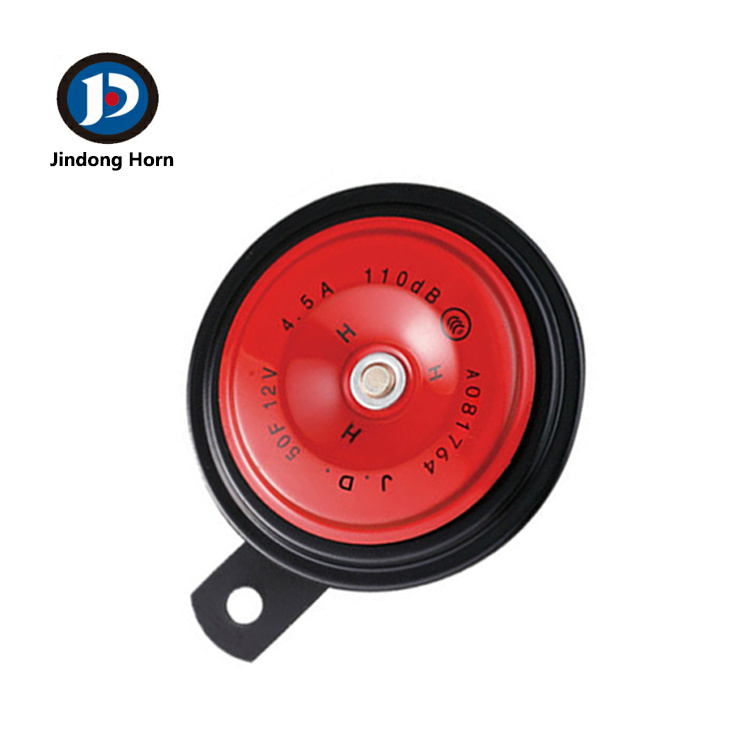

50f Disc Type Excellent and Modest Design Horn with 6V, 12V and 24V Options

50f Disc Type Excellent and Modest Design Horn with 6V, 12V and 24V Options
Price: US $ 1.1-4/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: JD. HL-B50
Horn Base Material And Thickness: 1.0mm Iron
Use Life: 150, 000times
Click Material: Manganese Steel
Horn Color: Black
Warranty: 12 Month
Car Make: Universal
Certificates: E-MARK, CCC, Ts/ISO16949:2009
Diameter: 80mm
Sound Level: 105-118dB
Frequency: 360Hz~420Hz
Type: Electric Horn
Speaker Design: 2-way
Shape: Spiral
Material: ABS
Sound Frequency: High Pitch
Voltage: 12V
Connection Mode: Double Wire
Current: 3A
Contact Point: With Contact Point
Energy Exchanging Mechanism: Electrical

Product Description






Technical parameter:

Details

Disc Horn

Voltage: (V)

12

Current: (A)

≤3A

Frequency: (Hz)

H=420±30   L=360±30

Sound level: (DB)

105dB-118dB

Diameter: (mm)

ø80

Applicable for cars

Universal

Certified

ISO/TS16949

Remarks:
1. It can be designed with other cars exclusive
2. It is very popular in America, Middle East and Europe (best quality)

3.It's our best quality car horn.It has at least twice life time than ordinary horn(Patent).

4.Sound crisp eleganceLong life,high reliableAnti-jam,SUPER WATER-PROOF(Patent)

14 months warranty, good after service, delivery on time

For more details, please feel free to contact me!

Features:
1.The real test in our laboraroy that show to us the horn can get 110db at least.
2.Super long surround sound,it make the sound powerful and comfortable so that decrease the trafficaccident.
3.We used the imported high quality manganese steel to make the soundboad so that can make the fullest possible "BABA~~" sound.
4.We use the most advanced Teflon coat technology.I can be dust-proof and water-proof effectively(We must inform you that there are not have any horn factory can make a universal horn that all waterproof).It prolong the lifetime of the horn effectively.
5.We used the 100%ABS material to make the horn bulb.It has very good Heat resistance,impact resistance,anti-corrosion so that can prevent the dinas and the heat of the engine damage for the horn.Anyway,it also has high hardness characteristic.It can drop from 1 meter that is not easy to break.


What should I note when I am Installing and using?

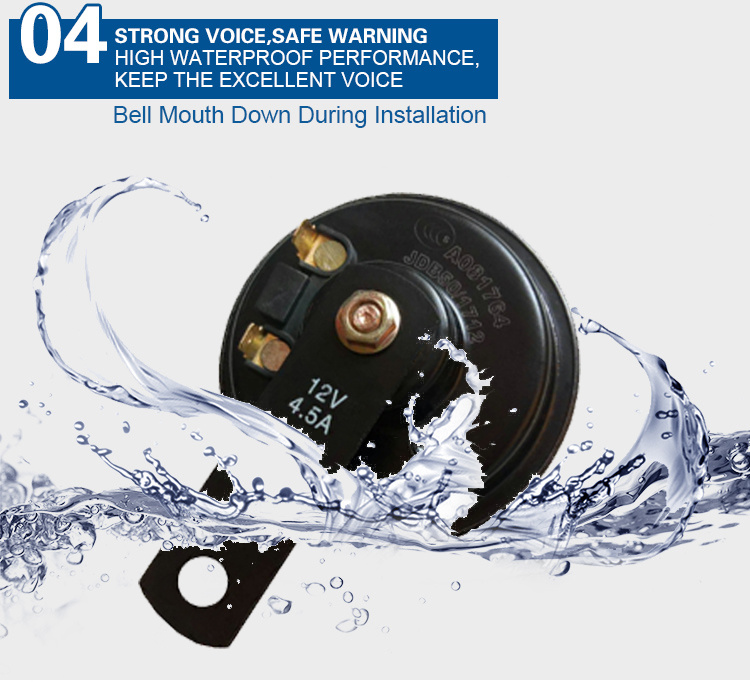

a. Snail down or 45 degree Angle installation, Prevent water  into coiled directly
b. If you are not special peason , dont change the angle degree of Steel Support,or it will change the Original air gap
c. mounting torque of Steel support is between 6Nm to 11Nm.
d. The horn support should be mounted to Solid surface to avoid resonance.
e. In order to avoid contact with other parts of the car,The horn should be connected with horn support and installed to wide and Ventilated place.
f. Nonpolarity requirements for this product, the connected place of the wire should solid enough, Double horn should installed on solid part of car body in parallel way.
g. Keep away from car motor and much Radiation place. Not be too low mounting.
h. Don't keep the horn on for 60 seconds, or it will lead to the coil burned down.
i. Using copper wire, more than 1.5mm for wire Diameter, the wire length should less than 4m.
j. Standard mounting Voltage, input working current more than 30A,12V horn voltage: 9-14.5V
