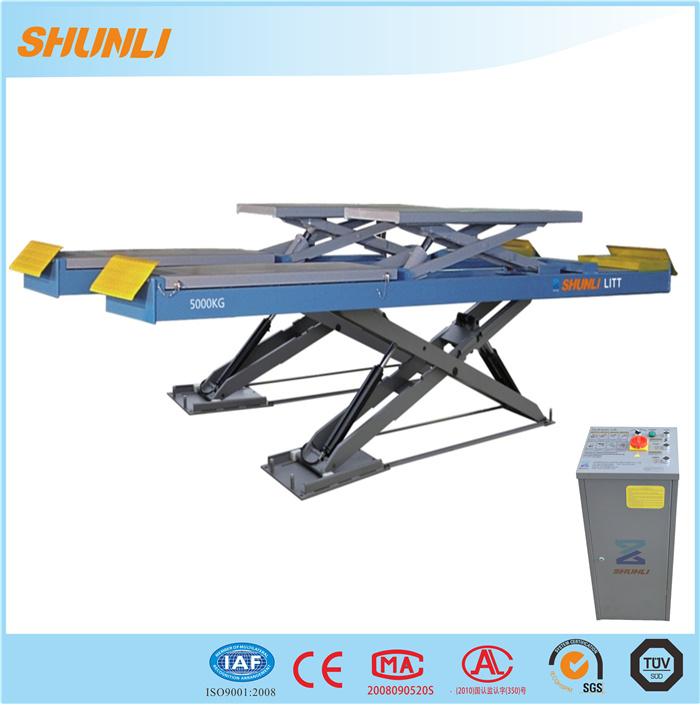

5000kg European Country Type Double Scissor Car Lift
| Price: |
US $ 5499-5699/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
Product Specification
1. Ultra thin structure ,only 140 mm above the ground at the lowest level
2. Built-in anti-explosive equipment in the oil tank;
3. The stable performance of the oil level regulating device ensures the requirement of high precision and better synchronization performance ;
4. Open the pneumatic rack insurance device automatically when declining. The structure is more reasonable and more safe. Oil less and ultra abrasive resistance slider;
5. Adopts double hydraulic system, hydraulic lock and mechanical insurance three safety device. Dual pneumatic insurance device on the sub lift can meet different height requirements.
6. Conjoined and X structure, using high quality steel plate, made and designed by high precision CNC machine technology.
7. Solid steel plate, high strength,Corrosion resistant, not rust, not easy defomation, more
reasonable structure and more safe;
8.The main hydraulic components are selected from importable parts from Japan, Germany, safe and reliable.
9. Second-level extensible platform. | Model | SHL-Y-J-50CCBL |
| Capacity of main lift | 5000 kg |
| Capacity of second lift | 5000kg |
| Main lift lifting time | 40-60s |
| Second lift lifting time | 10-30s |
| Initial height | 140mm |
| Main lift max.height | 1810mm |
| Second lifting max. Height | 500mm |
| Main lift platform length | 4500 or 5000mm |
| Second lift platform length | 1580-1750mm |
| Main lift platform width | 625mm |
| Second lift platform width | 600mm |
| Motor power | 3kw, 220V/380V, 50-60HZ |
| Air pressure | 0.4-0.6Pma |
Product detail
Our companyAbout the SHUNLI companyAs one of Top 10 car lift manufacturer in China, SHUNLI Company is professional car lift factory. We have 50 sets of standard model. Which including two post car lift, 4t, 5T, Four post car lift, 4T, 5T, Car scissor lift including 3.5T, 4T, 4.5T, 5T, 5.5T, 12T, 24T, 30T. Standard model over 11 units pass CE test and have CE certification. We can make your design car lift also.

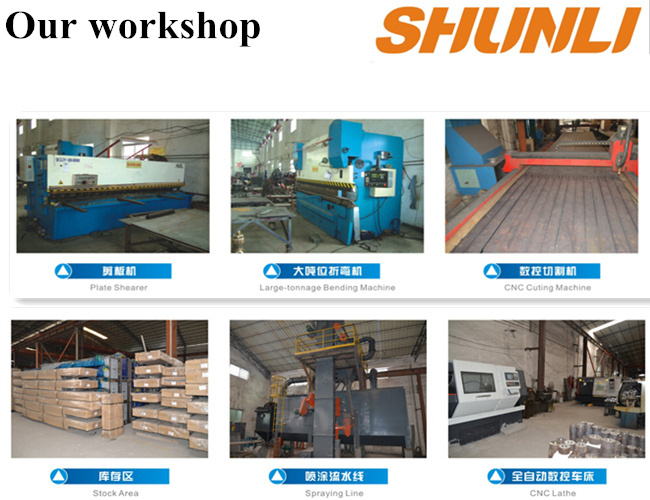

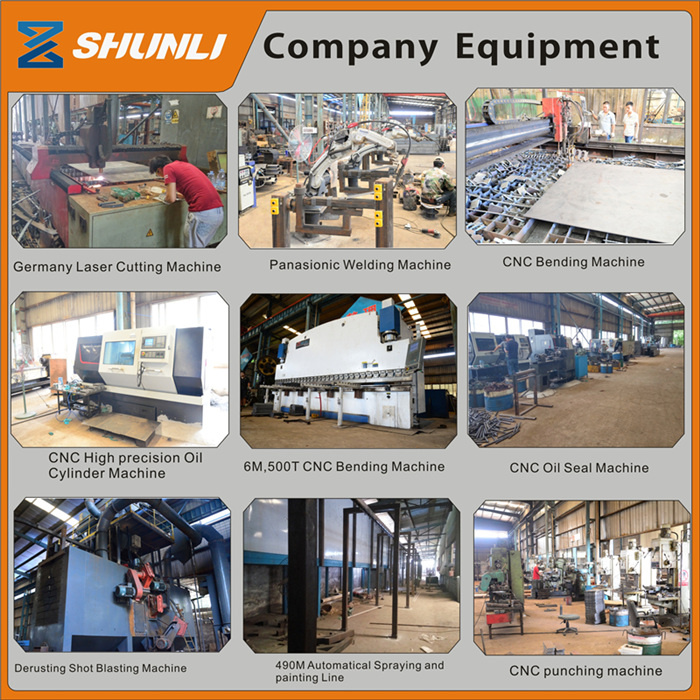

SHUNLI Factory's Advantage EquipmentThe new factory 20000M2, We have a world-class production equipment, including several Laser cutting machine, Robot welding machine, more than 20 sets punching machine, 490M blasting, painting, baking line and so on, the worker more than 130, each month we can production more than 1000 sets. Our users including the Mercedes-Benz 4S Shop, BMW 4S, VOLKSWAGEN 4S Shop and so on, CONTITRAC TR TIRES company, and the beauty car shop. Welcome to visit and contact with us for more detail, you will find the right product in here.
Oversea customer:With advanced technology and prompt service, we build long business with world customers, such as Poland, Romania, Russia, Australia, New Zealand, Canada, Panama, Ecuador, Peru, Chile, Algeria, Kenya, South Africa, Zimbabwe, Philippines, Indonesia, Kazakhstan, Mongolia, Egypt, etc. Now we are looking dealers all over the world, if you want to find the stable quality and reasonable price factory in China, contact us for more detail.
More we can do SHUNLI have stronger technical Engineer team.We can design and produce one special lift to you.We can according your request to design and produce one for you. Like the special scissor lift the table. For truck, for forklift and parking lift. CertificationSHUNLI company have more than 10 sets of standard model pass CE test and receive the certification. Which including two post lift 4T, 5T, scissor lift 3.2T, 3.5T, 4T, 5T. Model C240L, C250L, CD35T, CD40T, CD55T, CD5040TCC, CM40T, CX30TC, CX32T, CX40T
Other certification of us :SGS certification, Test report certification, AAA Certification, GOOD FAITH DEMONS TRATION UNIT and so on.
| Prod Model: |
SHL-Y-J-50CCBL |
| Motor: |
3kw |
| Lifting Height (Main Machine): |
1810mm |
| Second Lifting Max. Height: |
500mm |
| Main Lift Platform Length: |
4500 or 5000mm |
| Second Lift Platform Length: |
1580-1750mm |
| Main Lift Platform Width: |
625mm |
| Second Lift Platform Width: |
600mm |
| Motor Power: |
3kw, 220V/380V, 50-60Hz |
| Air Pressure: |
0.4-0.6pma |
| Capacity Of Main Lift: |
5000kg |
| Certification: |
ISO |
| Design: |
Scissor |
| Brand: |
Shunli |
| Lifting Capacity: |
5000kg |
| Type: |
8 Cylinder Hydraulic Lift |
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
