5 Viewing Windows Downdraft Spray Paint Booth in Thailand
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Ojade-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inside Size: |
6900*4500*2800 mm(L*W*H) |
| Outside Size: |
7000*5950*3550 mm(L*W*H) |
| Wall Panel: |
50mm Thick and 1150mm Wide, Insulation EPS |
| Color Steel Thick: |
0.426mm |
| Ceiling Lights: |
8units X 4PCS X 36W |
| Side Lights: |
8units X 2PCS X 36W |
| Intake Air System: |
2sets 4kw Centrifugal Fans |
| Exhaust Air System: |
1set 7.5kw Centrifugal Fan |
| Heating System: |
Riello Fs20 Gas Burner, 200kw Heating Exchanger |
| Main Products: |
Spray Booth Prep Station, Infrared Curing Lamp |
| Certification: |
CE |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Substrate: |
EPS Insulation Panel |
| Brand: |
Yokistar |
| Coating: |
0.426mm Color Steel |
| Airflow Direction: |
Full Downdraft Airflow Way |
Product Description
Yokistar Spray Booth is an electrical device, designed and constructed to dilute explosive atmospheres during spray and baking cycles. We have extensive design experience in producing high-quality booths for all cars.
Specifiaction

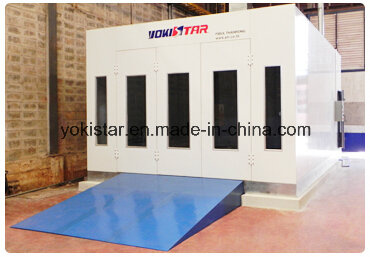

Below is full downdraft spray booth which have 5 windows on the entrance door, totally white color, and 4.5M working width.
1. Size
Inside size 6900×4500×2800 mm(L×W×H); Outside size is 7000×5950×3550 mm(L×W×H);
2. Wall panels
50mm thick and 1150mm wide wall panel, insulation is EPS and covered by 0.426mm thick of color steel inside and outside;
3. Lighting
8units x 4pcs x 36W ceiling lights and 8units x 2pcs x 36W side lights as lighting system;
2sets 4kw centrifugal fans as intake air system and 1set 7.5kw centrifugal fan as exhaust air system;
4. Heating
Riello FS20 GAS burner from Italy, using 200kw Heating exchanger which is made of 1.5mm stainless steel with round type multi-cycle radiatorpipe, equipped with safe anti-explosion hole;
5. Control
Sophisticated electronic control system for Painting and Baking type with unique safety devices.Given our "Customized booth" reputation, Yokistar has designed:
1. All kinds of special request from different clients;
2. Semi-downdraft and Cross downdraft spray booths;
3. Drive-thru main door or Electrical shutter main door;
4. Anti-explosion motors and anti-spark fans with SIEMENS or ABB brand;
5. Intelligent operation system with Touch Screen and PLC system;
6. Booth which is including Waterborne System, Movable Infrared lamp, Dust Extraction System.
Any helps for improving profit in your business, call us at any time!
