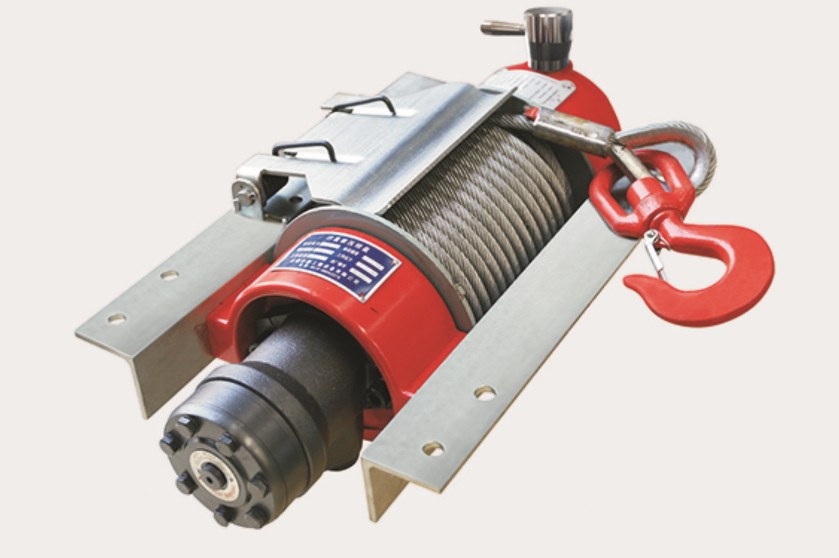

4ton / 9000lbs Hydraulic Winch

4ton / 9000lbs Hydraulic Winch
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T
Contact Supplier
Showroom Product Company Profile

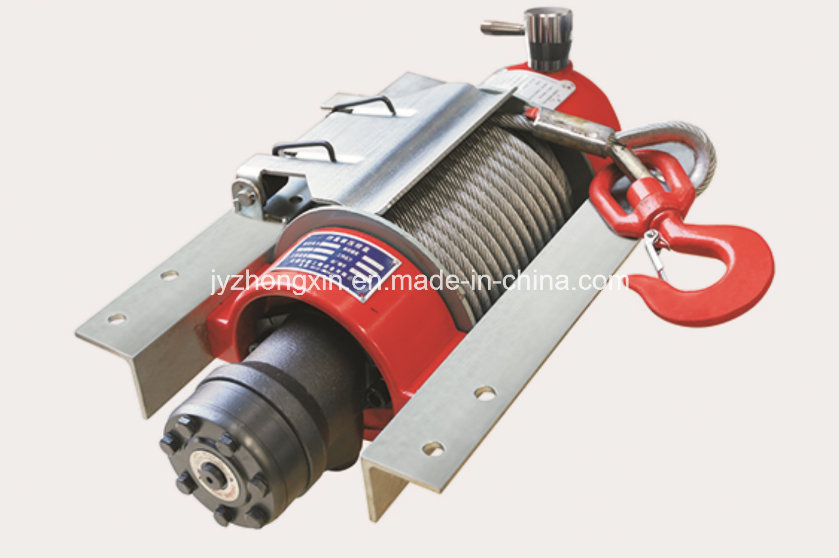

PWA040 hydraulic winch

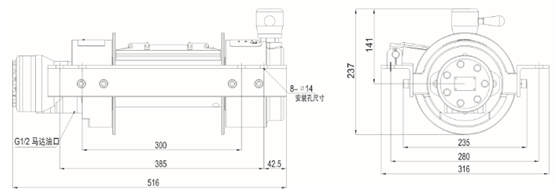

 Product structural drawing

Features

1  Heavy duty high torque hydraulic motor.
2  Extremely watertight with good quality internal seal.
3  Free spooling clutch-Rotation (normal manual clutch).
4  Compact structure, easy for mounting by two angle bar.
5  Fast line speed provide high efficiency for recovery
6  With cable tensioner
7  Integrated mechanical brake.
8  Winch can be mounted on wrecker, recovery truck, or other vehicles

Performance

Rated line pull (1st layer)KN / kgs / lbs39/ 4000 / 9000
Motor displacementml/rev80
Oil flowL/min15-60
Oil pressureMPa14
Gear ratio
23:1
Wire rope (diameter x length)
Φ11mm x 25metre
Drum dimensions (diameter x length)mmΦ88 xΦ192 x 200
Mounting dimension and bolts
300mm x 280mm 8-M12
Overall dimensionmm516(524) x 316(376) x 237
Net weight (with wire rope and hook)kg48

Line pull, oil pressure and oil flow, line speed

Line pull (KN)Oil pressure (Mpa)Oil flow (L/min)Speed (m/min)
03.5152.5
278.5254.0
3611.0406.5
3914.0508.0
4915.0609.5

Layer of calbe, line pull per layer, speed and wire rope capacity

Layer of cableLine pull (KN)Speed (m/min)Wire rope capacity
1399.55
23411.812
32813.919
42516.025


100% performance test before shipment


Prod Model: PWA040
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hydraulic Winch: 4 Ton / 9000lbs
Type: Hydraulic Winch
Pull Direction: Backward
Hydraulic Winch Type: Medium Pressure
Certification: CE
Power Type: Hydraulic
Manual Winch Type: Pwa040
Brand: Zhongxin
Jiangyin Zhongxin Engineering Equipment Co., Ltd. is a specialized company which undertakes the research, development, production, marketing and service of hydraulic winch and hydraulic lifting mechanism required by engineering equipment and ship board equipment. It implements strictly ISO90001 and Regulations of Lloyd Classification Society. This company has a powerful team of research and development technical engineers, technicians with excellent skills, inspection quality control personnel with high quality as well as marketing personnel with credit.

This company makes efforts to exploit international market and introduce foreign investment and advanced technology. Nowadays, it has established business relationship with USA, Germany, France, Italy, Japan, Singapore and etc. The products of this company have gained high reputation among foreign customers.

All the employees of this company serve the domestic and foreign customers with the idea of "Credit, quality, technology and management". The hydraulic winch and hydraulic lifting mechanism of this company have formed complete series which can be selected by customers. And we can also improve, research and develop the product according to the technical requirements raised by customers.
