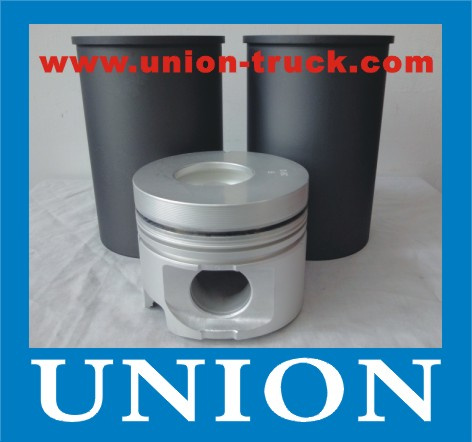

4HF1 Auto Parts, Liner Kit Piston for Isuzu Elf Truck
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
400/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
4HF1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia |
| #Cyl: |
4 |
| Engine Model: |
4hf1 |
| Engine APP: |
Elf Npr Truck |
| Guarantee: |
100, 000km |
| Piston Dia: |
55-165 |
| Products Brand: |
Upac |
| Liner OEM: |
8-97176-727-0 |
| Type: |
Piston |
| Cylinder Number: |
4 |
Product Description
ISUZU REPLACEMENT PARTS
Isuzu 4HF1piston kit
Isuzu engine parts 4HF1 piston
Isuzu engine spare parts 4HF1 pistons
Isuzu truck engine 4HF1 piston ring
Isuzu truck engine parts 4HF1 piston rings
Isuzu truck spare parts 4HF1 piston ring set
Isuzu diesel engines 4HF1 Cylinder Liner
Isuzu 4HF1 Cylinder Liner Kit
Isuzu 4HF1 engine parts
Isuzu 4HF1 sleeve
Isuzu 4HF1 piston 8-97176-727-0 8-94389-276-3
Engine Number: Isuzu MODEL 4HF1
OEM NO 8-97176-727-0 8-94389-276-3
Cylinder Diameter 112
Cylinder Number 4
Length 180
Compression Distantance 60.8-21.8
Compression Ring 3.0 2.5
Oil Ring 4
Pin Diameter 36
Length 79
Combustion Chamber Diameter 54
Remark alfin
Remarks:
1. Advanced technology, superb quality, reliability and honesty, satisfactory service
2. Reasonable price
3. Considerate after-sales service
4. Safe and fair cooperation with us.
5. We strictly adhere to OEM quality. Same quality and service in domestic and overseas markets.
We also have other brands:
Mazda, Nissan, Mitsubishi, Hino, Isuzu, Toyota, Komatsu
Our main products: Piston, piston ring, cylinder liner
Material:
Piston: ZL109 Aluminum Alloy, Alloy cast iron
Piston Ring: Cast iron, Alloy, Steel
Cylinder Liner Material: Boron-containing Alloy Cast Iron, seamless steel pipe
Structure and surface treatment:
Piston: Top anodic oxidation, Alfin, skirt printed by silk screen, Skirt sprayed graphite, Tin-plated, oil cooling channel or gallery, Invar inserting,
Piston Ring: Chrome-plating, Line-honing, nitridation, phosphating, Tin-plating, Electrophoresis MOS2,
Cylinder Liner: Dry, Wet & Air Cooled Blocks
Guangzhou Union Auto Parts Co., Ltd is dedicated to providing the best products and best service to you. We are energetic and compassionate to make our cooperation flourish and last forever. Our motto is advanced technology, superb quality, reliability and honesty, satisfactory service.
| E-Model | OEM No | Piston Size | OEM No | Ring | Size | OEM No | Liner Size |
| 4HF1 4HF1 New | none valve dent 8-97095-585-1 5-87813-391-1 | Diameter: | 112 | 8-97028-691-0 R17863 SJI10-127 | 1st: | 3 | 8-97176-727-0 8-94389-276-3 5-87813-332-0 | Ins Dia: | 112 |
| Tot height: | 94.7 | 2nd: | 2.5 | Out Dia: | 115 |
| Comp H: | 60.7 | Oil: | 4 | Height: | 180 |
| Pin Dia: | 36 | | | W: | 0.74 |
| Length: | 79 | | | | dry |
| Remark | alfin | | | | |
| oil-gallery | | | | |
Guangzhou Union Auto Parts Co., Ltd established in 2000, invested two factories: One is piston ring factory, the other is piston factory, was one of the biggest engine parts manufacturers and suppliers in Guangzhou. And we supplied piston and ring to these truck engine assembly factories. (JAC, JMC, ISUZU, FOTON, DFAC, FAW etc) Meanwhile, we attached great importance to after-sale service and got distributors among 15 provinces in China. In 2007, the export department in Guangzhou was established with an efficient and united team. Export staff aimed at providing professional solution to engine parts repairing for customers domestic and abroad through exhibition and online service. In 2009, the second largest liner factory of China chose Union team developing oversea market. We are committed to our customers supplying high quality engine parts to meet customer's needs. We do believe that quality means the life of enterprise. And we are striving to be the best manufacturer and supplier of engine parts from a global view.
Our main products are diesel engine pistons, piston rings and cylinder liners which are mainly applied to light trucks, heavy-duty trucks, buses and construction machines engines like YUCHAI, WEICHAI, DACHAI, XICHAI, CHAOCHAI, YANGCHAI, YUNNEI, YANGDONG, XINCHANG, JIANGHUAI, DONGFENG CUMMINS etc. Adopting advanced technique and high quality management system with special laboratory, our products get international approval, such as ISO9001, TS16949 etc. And enjoy a very good reputation among customers in domestic and overseas market. In addition, we can provide OEM service according to customer's technical drawings and requirements for engine parts. (ISUZU, HINO, Nissan, MITSUBISHI, KOMATSU, YANMAR, DAEWOO, HYUNDAI, KIA, CUMMINS, CATERPILLAR etc)
OUR ADVANTAGES (Factory Background)
The first piston ring factory of China for diesel engine started in 1943 with annual production of 40 million pieces rings diameter range from 65mm to 400mm.
The largest piston factory in Asia with annual production of 6 million pieces piston diameter range from 65 mm to 400mm.
The second largest liner factory in China with annual production of 10 million pieces liner diameter range from 65mm to 250mm.
Advanced technology and scientific administration for quality guarantee, professional sales team to avoid misunderstanding and mistakes, quick production and fast delivery for target market share and protection. The best strategic partner of one-stop cylinder liner kit purchase solution for customers domestic and abroad.
OUR CONCEPTS
Culture United, we stand, develop and flourish.
Philosophy To lead is to serve, to win is to give.
Quality Strict quality control and supplying the best.
Mission To be the leading professional global supplier of engine parts and accessories in China, we are committed to meeting and exceeding customer's expectation.
