4500kg in Ground Type Scissor Lift
| Price: |
US $ 3500-3800/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
Introduction:
It's specifically for the repair maintenance, four-wheel aligning, tyre-changing and maintenance of various of high-grade cars. The advantage is easy operation, smooth& reliable working process, high lifting insurance quotient and durability. It's popular in abroad and local market.
Product features:- Main platform lifting capacity 4500kg (7700lbs), second jack lifting capacity is 4300kg
- Oil cylinder parts made by automatic CNC lathe ensure the excellent finish and
concentricity. 3. Imported Oil Seal, valve and important hydraulic parts oil pipe explosion protective device.
4. Electric leakage protection overload protection
5. Shot blasting and high temperature baking powder coated surface finish self-lubricated bushings and bearings
6. Mechanical safety, double Hydraulic System pneumatic safety lock release system
7. Stable Hydraulic Balance System
8. Optional second-level platform extension and infra-red electronic leveling sensor
9. Italy technology to design
10. 24V safely control circuit

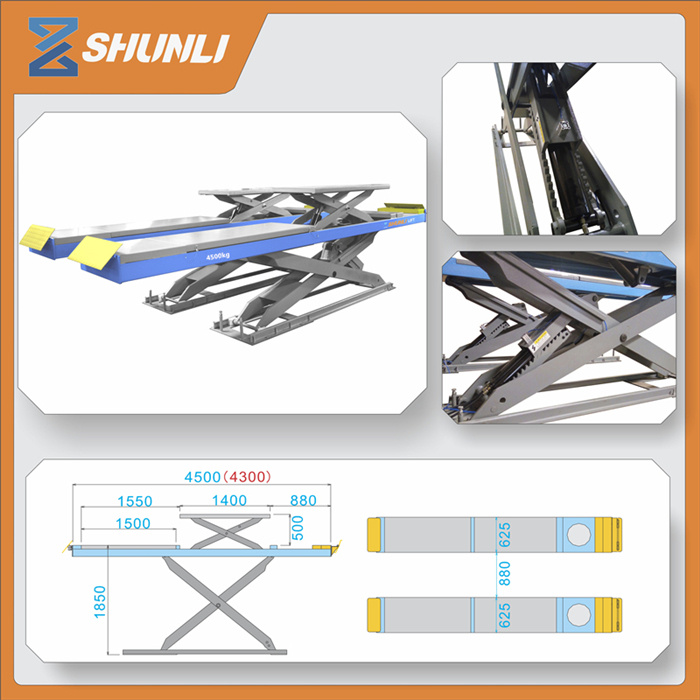

Technical parameter| Model | SHL-Y-J-45DL |
| Lifting Capacity | 4500kg |
| Host Lifting Height | 1850mm |
| The Host Platform Length | 4300-4500mm |
| The Host Platform Width | 610mm |
| Second Jack Lifting Height | 500mm |
| Second Jack Lifting Length | 1400-1700mm |
| Second Jack Lifting Width | 570mm |
| Motor/ Power | 3kw/220V, 380V |
| Air Pressure | 0.4-0.6mpa |
Product detail

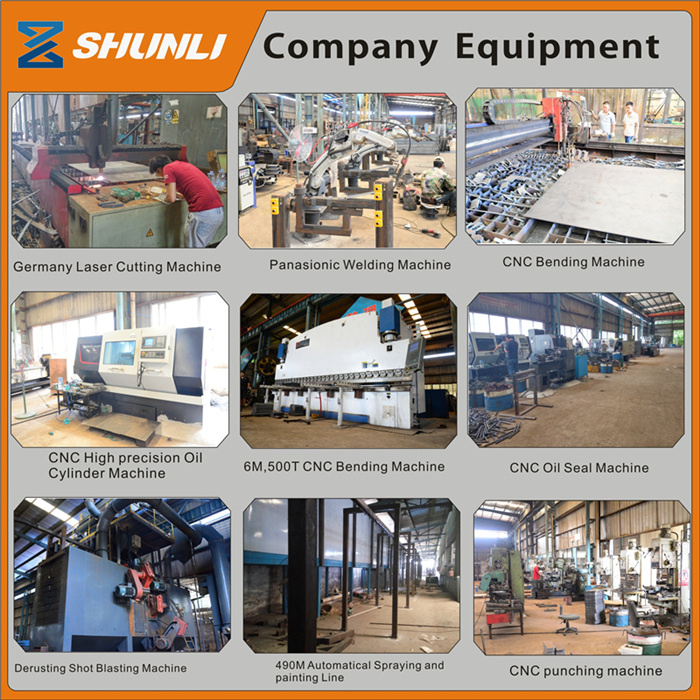

About the SHUNLI's Equipment SHUNLI Company is professional car lift factory. Standard model Two post car lift, 4t, 5T, Four post car lift, 4T, 5T, Car scissor lift including the lower rise scissor lift 3.5T, 4T, 4.5T, 5T, 5.5T and so on is our standard model. And we can do the nonstandard model also. We have more than 10 model pass CE test and have CE certification. The factory more than 20000M2, We have a world-class production equipment, including several Laser cutting machine, Robot welding machine, more than 20 sets punching machine and so on, the worker more than 130,each month we can production more than 1000 sets. Our users including the Mercedes-Benz 4S Shop, BMW 4S, VOLKSWAGEN 4S Shop and so on, CONTITRAC TR TIRES company, and the beauty car shop. Now we are looking dealers all over the world to join in, if you want to find the stable quality and reasonable price factory in China, contact us for more detail.
With oversea customer
Oversea customer:As one of Top 10 car lift manufacturer in China, we have over 10 years manufacture and service experience in 4s car shop; Car repair shop; Car beauty shop. We produce and supply scissor lift. With advanced technology and prompt service, we build long business with world customers, such as Poland, Romania, Russia, Australia, New Zealand, Canada, Panama, Ecuador, Peru, Chile, Algeria, Kenya, South Africa, Zimbabwe, Philippines, Indonesia, Kazakhstan, Mongolia, Egypt, etc.Here is the picture showing customer and and manager in our showing room.Customer Feedback

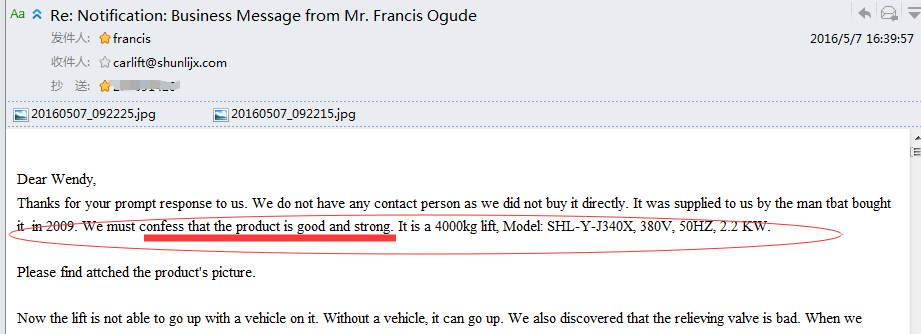

What does the customer say : One customer buy the product on 2009. After 7 years past, it's first time to do the after sales service. And he still confess the product's quality still good and strong. Thanks for feedback and confirm the quality. SHUNLI will keep going to give u all of good product.Product advantage
1. Easy control the lift table up &down by foot step
2. Solid steel X structure.

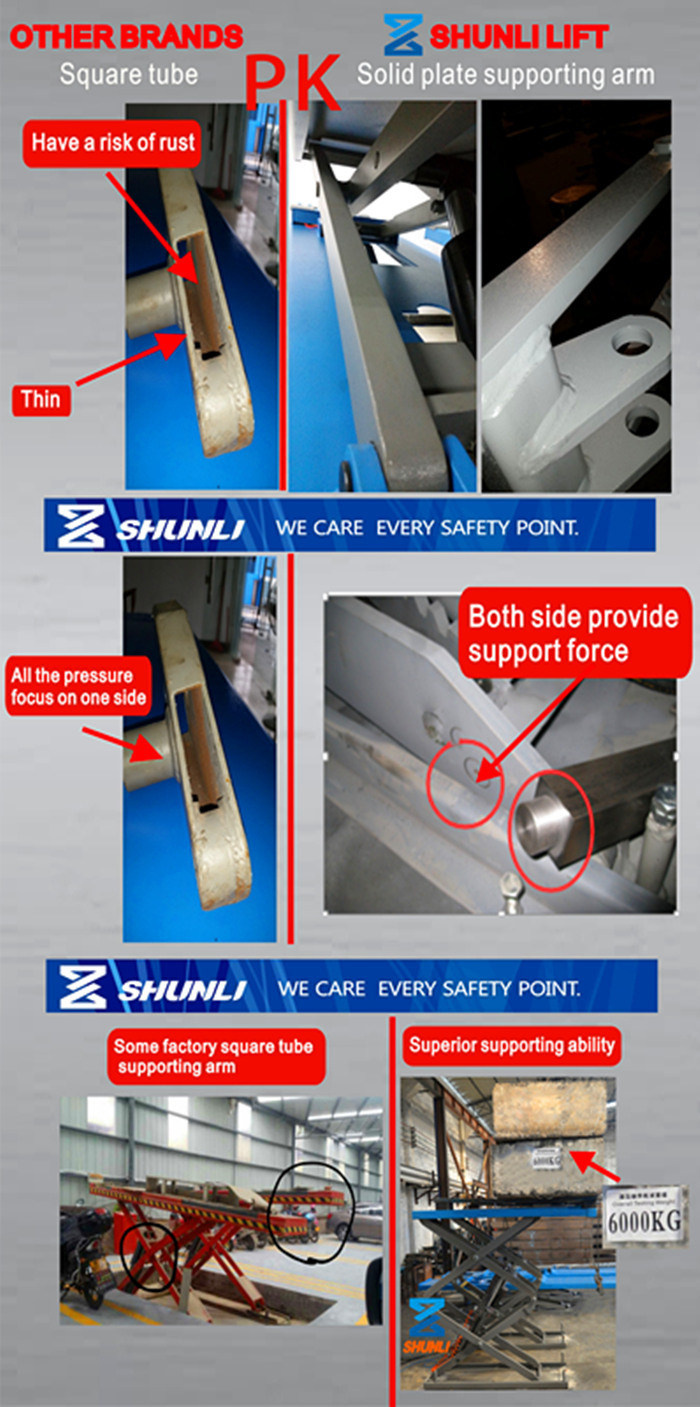

3. Without welding, one steel plate insurance machinery lock
4. Almost after-sales problem
5. Pass CE test.
6. Factory directly sales. Good price and good aftersales service.
| Prod Model: |
SHL-Y-J-45DL |
| Motor: |
3kw |
| Lifting Height (Main Machine): |
1850mm |
| Main Lifting Capacity: |
4500kg |
| Second Lift Max. Height: |
500mm |
| Main Lift Platform Length: |
4300mm or 4500mm |
| Second Lift Platform Length: |
1480-1680mm |
| Main Lift Platform Width: |
610mm |
| Second Lift Platform Width: |
570mm |
| Power: |
220V, 380V, 50-60Hz |
| Air Pressure: |
0.4-0.6MPa |
| Type: |
Four Cylinder Hydraulic Lift |
| Certification: |
ISO |
| Design: |
Scissor |
| Brand: |
Shunli |
| Lifting Capacity: |
4500kg |
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
