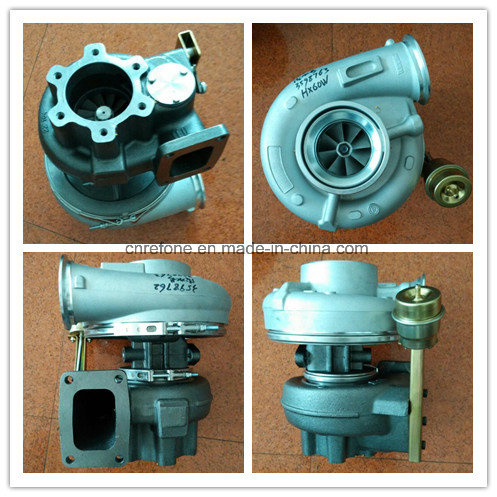

4047148 HX60W Turbocharger for 2002-10 Cummins Truck
Products Descreption:
| Part Number | 4047148 |
| Previous Version | 3594488, 3598762, 4038498, 4041154 |
| OE Number | 4024937, 4089298, 4089970, 4955216, 4955813, 4955813NX |
| Year | Oct-02 |
| Description | Truck, Cummins T3 Industrial CPL-3088, CM570 ECM |
| Manufacturer Part Number | 3594490, 3594491, 3594492, 4038500, 3598763, 3598764, 3598765, 4038500,4038502, 4047152, 4047153, 4047154, 4041155, 4041156 |
| Turbo Model | HX60W |
| CHRA | 3768546 (4038499) |
| Engine | QSX, QSX15 TIER 3 |
| Engine Manufacturer | Cummins |
| Fuel | Diesel |
| Angle α(compressor housing) | 270° |
| Angle β (turbine housing) | 90/137/270° |
| Bearing Housing | 3536802 |
| Turbine Wheel | 3533025 (353302500)(Ind. 86. mm, Exd. 97. mm, 11 Blades) |
| Comp. Wheel | 4040285 (Ind. 79.98 mm, Exd. 113.01 mm, Trm 50, 8+8 Blades) NEW IN STOCK |
| Back plate | 3531917 (1250403300) NEW IN STOCK |
| Heat shield Number | 33519155 (18373) (351915500) NEW IN STOCK |
| Repair Kit | 4027881 (3545345, 3580568, 4027880)(1153060750) NEW IN STOCK |
| Gasket Kit | 3545577 NEW IN STOCK |
| Manufacturer | HOLSET |
Application:
2002-10 Cummins Truck with QSX Engine
Package:
1. Mold foam
2. Plastic bag
3. Strong Canton Pallet
Please don't worry about package, we promise that our turbocharger reach you intactly.
Shipping:
1)TNT,DHL,FEDEX,UPS,EMS
2)By sea ,by air
3)Take your requirements into consideration
Company Introduction:
Refone AUTO POWER is committed to delivering the highest standard of quality and safe products and services to our customers.
Refone auto power is an outstanding corporation manufacturing and selling all kinds of high quality turbocharger and spare parts, such as Shaft & wheel, Compressor wheel, Cartridge (CHRA), Repair kits, Thrust collar & spacer, Journal bearing, Thrust bearing, Piston ring, Compressor housing, Compressor housing, Bearing housing, Turbine housing, Turbine housing adapter, Back plate (seal plate, insert), Heat shield, Actuator, Oil deflector, V-band, Shaft nut, Gasket and so on.
Advantages:
1. Quality Warranty: 1 Year
2. High speed balancing tested.
3. Provide customized service.
After-sales Service:
1. Take photos, sending back for testing.
2. Send new turbo to customer.
Related Hot-selling Products
| Model | Turbo OEM Number | Application |
| HP60 | 87c0185 | JAC Truck |
| HP55 | 1008200FA01 | JAC Truck |
| HX35W | 3597911 | Cummins 6BT engine |
| HX50W | 3594505 | Iveco F3B Truck Cursor 13 |
| HX55 | 4043648 | Iveco Cursor 9 |
| HX55 | 3590044 | CUMMINS ISM, ISME, M11 |
| HX55W | 4046127 | Cummins ISX2 engine |
| HY55V | 4046943 | Iveco Truck CURSOR 10 engine |
| HY55V | 4046945 | Iveco Truck Cursor 13 engine |
| HX40 | 3593920 | MAN Truck, Bus |
| HT12-19B | 14411-9S000 | Nissan Navara, Truck D22 |
| HX35W | 3597911 | Cummins 6BT engine |
| HX55 | 3590044 | CUMMINS ISM, ISME, M11 |
| HX55W | 4046127 | Cummins ISX2 engine |
| HY55V | 4046943 | Iveco Truck CURSOR 10 engine |
| HY55V | 4046945 | Iveco Truck Cursor 13 engine |
