Qingdao TechTall Industry & Trade Co., Ltd. >> 4 Post Car Lifter /Service Lift with Alignment

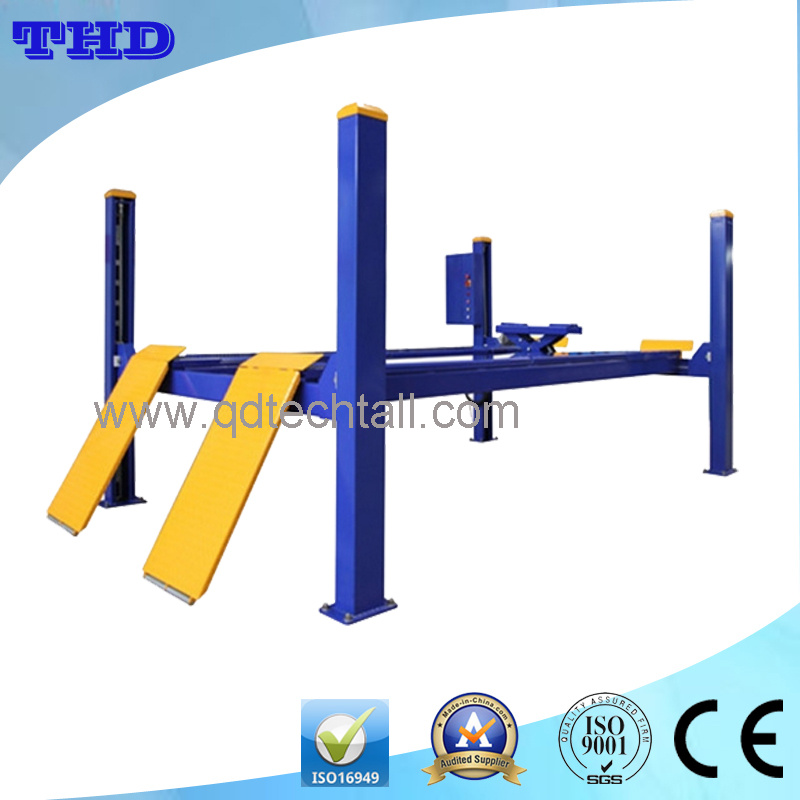

4 Post Car Lifter /Service Lift with Alignment

4 Post Car Lifter /Service Lift with Alignment
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Description:  Four Post Car Lift with alignment
Model #: THD- F4.0A / THD-F6.0A / THD-F8.0

Technical Data:

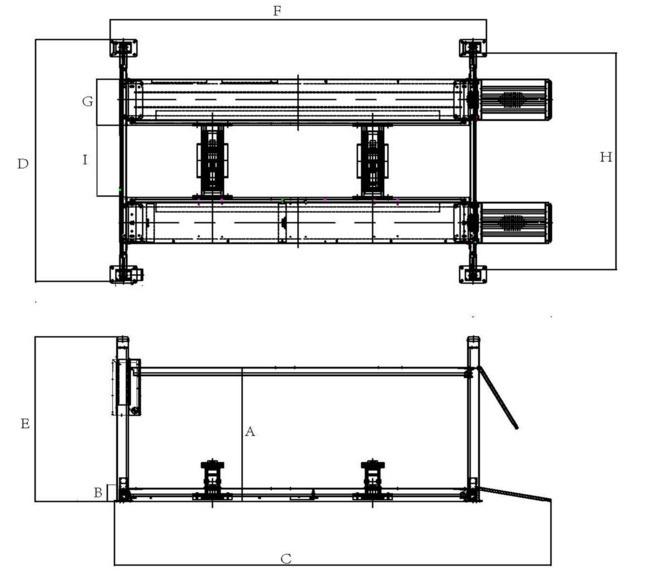

SpecificationTHD-F4.0ATHD-F6.0ATHD-F8.0
Max.lifting capacity4.0 tons6.0 tons8.0 tons
AlignmentYesYesNo
A   Max lifting height1850mm1750mm1750mm
B       Lowest height208mm268mm245mm
C        Overall length5610mm6866mm7330mm
D         Overall width3293mm3303mm3865mm
E        Overall height2274mm2160mm2160mm
F      Platform length4610mm5696mm6160mm
G       Platform width575mm600mm700mm
H   Width between posts2923mm2993mm3176mm
I clearance distance between platform976mm960mm1000mm
Power supply220V/2.2KW/1PH           380V/2.2KW/3PH220V/2.2KW/1PH           380V/2.2KW/3PH220V/2.2KW/1PH           380V/2.2KW/3PH
Net weight1510kg2140kg2280kg




Features:
Imported Pwder Coat Finish
Pneumatic safety lock or electrical safety lock
1*2 ton/3 ton Jacking bridge
A couple of turnable recesses optional
Build in rear slip plates optional
Adjustable width of jacking bridge
THD reserves the right to change any specifications without any notice.



Prod Model: THD- F4.0A / THD-F6.0A / THD-F8.0
Surface Treatment: Powder Coated
Power Supply: 220V/380V
Color: as Customer's Requirements
Others: as Customer's Requirements
Type: Double Cylinder Hydraulic Lift
Lifting Capacity: 4T
Certification: CE
Design: Four Post
Shearing Lift Type: /
Brand: Thd
Qingdao techtall industry & trade Co., Ltd is a group factory who specialized in designing, processing and selling post car lift & all kinds of car parking system. It has international advanced technology, advanced processing equipment and high-quality management talents. It is equipped with abundant manufacturing technology and sound quality control system. Our products are very popular in domestic and overseas.

Techtall factory is located in the beautiful beach city qingdao jimo with convenient transportation and developed logistics. With 20 million RMB registered capital, 120 million total assets investment, 33 thousands square meters floor area and 15 thousands square meters industrial factory building. We hold various large and medium-sized equipment, like processing center, digital control lathe, digital control miller, digital punch, press, large shear machine, bending machine laser cutting machine, welding machine, etc and quality inspection equipment hydraulic equipment, CNC dynamic balance instrument, spectrograph, CMM, etc.

We have 150 more staffs now. Among of them, there are 1 senior engineer, 12 mechanical engineer, 8 electric engineer and 20 more professionals.

We have got approval of ISO9001 quality system certification, 16949 certification, ISO14000 environment management system certification, ISO18000 security system certification and ce certification.

Quality is the basic guarantee of one enterprise's survival and continuously innovation. Has a complete and scientific quality management system is our many years pursuit to devote on completing and modifying constantly on the products quality. We establish and improve ISO9001 quality management system, formulate a complete set of self-inspection, special inspection and routing inspection manufacturing supervision system and supervisor control program. Strictly execute and implement according to ISO9001 quality management system. It made our products keeping high quality and got high praise and acceptance from our customers for many years.

The core value of techtall is opening the door to wealth together with the customers.

Techtall sincerely looks forward to cooperate with you and create bright future together.
