4.3inch Rearview Monitor Auto Parking Sensor System

Name: 4.3inch Rearview Monitor Auto Parking Sensor System
Brand: ibuyautoparts.com
SKU: 691604842
Availability: InStock
Rating: 4.8 (83 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Set
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	WL430A&305
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screen Size:	4.3"
Video Inputs:	2
TV System:	PAL/NTSC
Camera Type:	480 TV Lines CMOS
Parking Sensor Type:	Video /Working with Camera&Monitor
Sample:	Available
Warranty:	13 Months
Kind:	Anti-collision Radar
Operating Temperature Range:	-20??C~+80??C
Working Principle:	Frequency Modulated Continuous Wave
Certification:	CE
Test Distance:	2.5-0.3m
Brand:	Camedio

Product Description

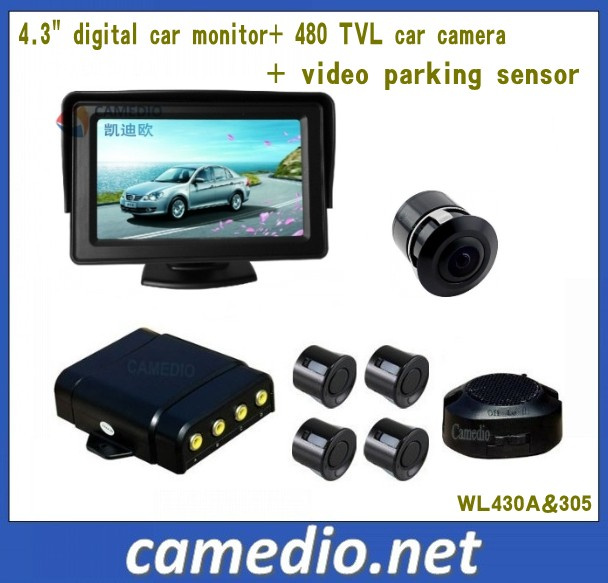

1. 4.3" car/auto parking sensor system

2. 4.3-inch digital car LCD monitor+ 480 TVL car camera+ video parking sensor

3. Different rear view camera optional

4. Detection distance: 0.3 ~ 2.5m for rear

Feature for video parking sensor :

- One control box, external connection

- Two video input, one video output

- One video is straight connection

- 4-stage simulate obstruction distance display

- Another video is added with distance data

- "BiBi" audible warning buzzer in 3 steps

- Detachable sensor with waterproof socket connector (optional)

- Digital meter distance mode, feet display available

- Directional indicator of left and right

- 4 rear sensors for full coverage, 2 ~ 8 sensors available for front & rear detecting

- Heavy rain-proof & all weather design

- High quality and easy to install

- All spare parts are compatible

- Different sensors & colors optional (stick-on & insert-in)

4.3-inch digital LCD monitor:

- Display Mode: 4.3" Digital TFT LCD module, Active matrix TFT,Transmissive type

- Number of Pixel: 480RGBx272

- Display Format: RGB Stripe

- Video input: two video inputs (V1/V2)

- Color: 16.7M color

- Input Data: 24bits RGB interface

- Viewing Direction: 6 O,CLOCK

- Backlight: White LED

- Video color system: NTSC/PAL

- Power supply: DC12+ -10%

- Operation temperature: -20ºC~50ºC

- Dimensional outline: 102.04(W)x63.01(H)x1.43(D)

- LCD A.A: 95.04(W)x53.86(H)

- Pixel Pitch: 0.198(W)x0.198(H)

Car Camera:

- 1/4 waterproof CMD color camera,

- 135 degrees viewing angle

- PAL/NTSC color system,

- Resolution: 480TV lines

- Other different models optional
