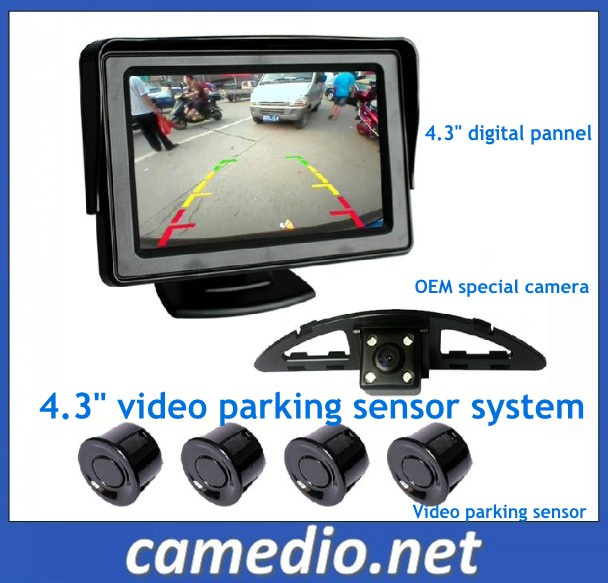

4.3" Digital LCD Monitor Automatic Car Parking System

1.4.3" car/auto parking sensor system

2.4.3-inch digital car LCD monitor+ 480 TVL car camera+ video parking sensor

3. Different rear view camera optional

4. Detection distance: 0.3 ~ 2.5m for rear


Feature for video parking sensor:
- One control box, external connection

- Two video input, one video output

- One video is straight connection

- 4-stage simulate obstruction distance display

- Another video is added with distance data

- "BiBi" audible warning buzzer in 3 steps

- Detachable sensor with waterproof socket connector (optional)

- Digital meter distance mode, feet display available

- Directional indicator of left and right

- 4 rear sensors for full coverage, 2 ~ 8 sensors available for front & rear detecting

- Heavy rain-proof & all weather design

- High quality and easy to install

- All spare parts are compatible

- Different sensors & colors optional (stick-on & insert-in)



4.3-inch digital LCD monitor:
- Display Mode: 4.3" Digital TFT LCD module, Active matrix TFT, Transmissive type

- Number of Pixel: 480RGBx272

- Display Format: RGB Stripe

- Video input: Two video inputs (V1/V2)

- Color: 16.7M color

- Input Data: 24bits RGB interface

- Viewing Direction: 6 O, CLOCK

- Backlight: White LED

- Video color system: NTSC/PAL

- Power supply: DC12+ -10%

- Operation temperature: -20º C~50º C

- Dimensional outline: 102.04(W)x63.01(H)x1.43(D)

- LCD A. A: 95.04(W)x53.86(H)

- Pixel Pitch: 0.198(W)x0.198(H)


Car Camera:
- 1/4 waterproof OEM specific color camera,

- 170 degrees wide viewing angle

- PAL/NTSC color system,

- Resolution: 480TV lines

- Other different models optional
