3y/4y Engine for Toyota Engine

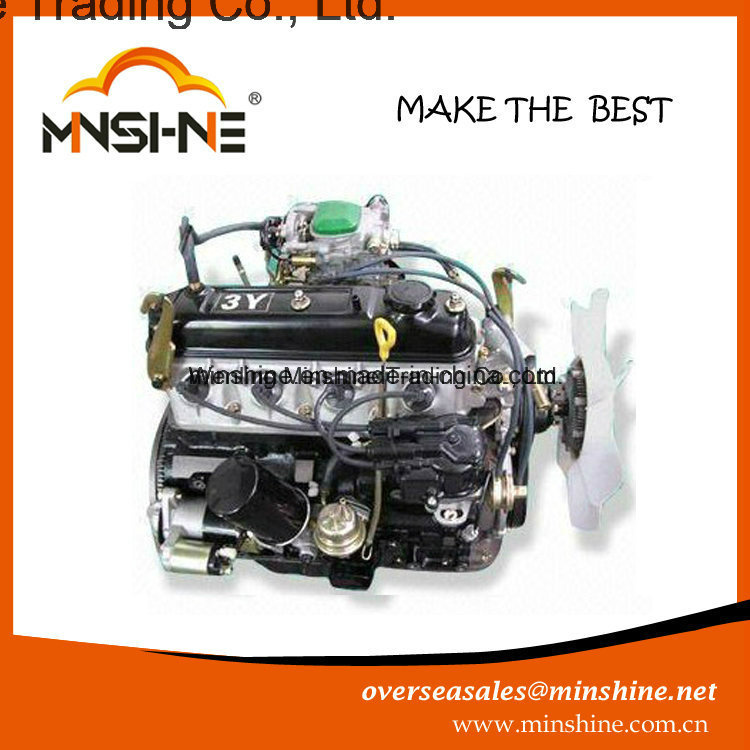

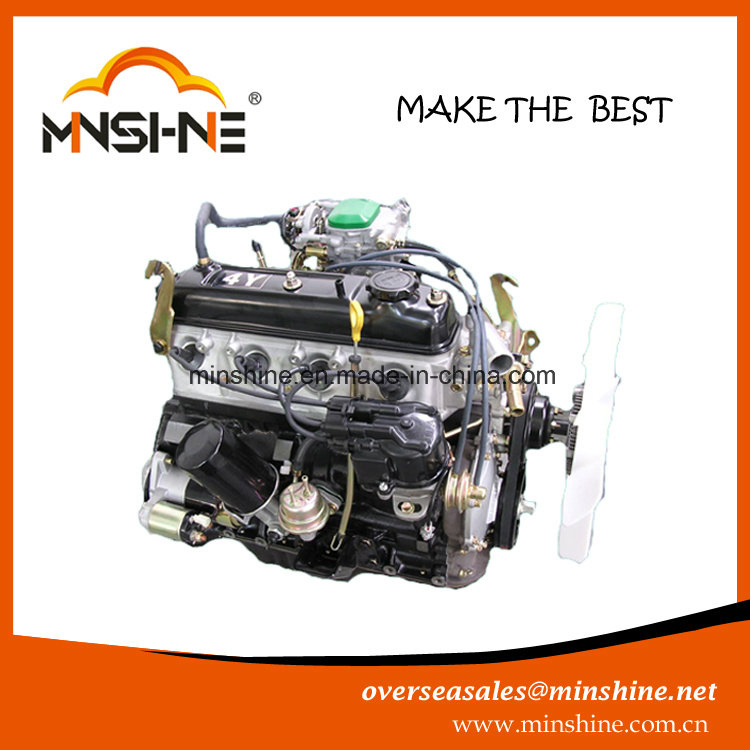

Name: 3y/4y Engine for Toyota Engine
Brand: ibuyautoparts.com
SKU: 681938382
Availability: InStock
Rating: 4.5 (64 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Engine match for Toyota 3Y/4Y

Line Description Item Specifications
1 Model for Toyota 4Y
2 Type 4 stroke, water cooling, inline, wedge shape combustion chamber
3 Cylinders 4
4 Bore 91 mm
5 Stroke 86 mm
6 Displacement 2.237 L
7 Power RPM68 kw / 4, 200-4, 600 rpm
8 Idle speed 750 ± 50 rpm
9 Max. Torque /RPM177 N. M / 2, 800-3, 200 rpm

10 Fuel supply Carburetor

11 FuelRON 90 (GB484)

Line	Item	Specifications and Description
1	Model	Toyota 3Y
2	Type	4 stroke, water cooling, inline, wedge shape combustion chamber
3	Cylinders	4
4	Bore	86 mm
5	Stroke	86 mm
6	Displacement	1.988 L
7	Power / RPM	63 kw / 4,200-4,600 rpm
8	Idle speed	750 ± 50 rpm
9	Max. torque/RPM	157 N.m / 2,800-3,200 rpm
10	Fuel supply	Carburetor
11	Fuel	RON 90 (GB484)
12	Min. fuel consumption	≤285 g / kw.h
13	Oil	SE 10 W-30 or SE 15 W-40 (GB11121)
14	Oil consumption	≤0.8 %
15	Piston average speed	13.19 m / s
16	Crankshaft rotation (facing to flywheel)	anticlockwise
17	Compression ratio	8.8
18	Weight vs. power	2.4 kg / kw
19	Average efficient pressure	793 kPa
20	Power vs. displacement	31.5 kw / l
21	Ignition order	1-3-4 -2
22	Distributing
	Intake in advance	12 °
	Intake in lag	48 °
	Exhaust in advance	54 °
	Exhaust in lag	10 °
23	Cooling	Centrifugal water pumped cycling
24	Lubricating	Pressed and splashed
25	Starting	Electric starter
Item			Unit	3Y Engine	3Y Bare Engine	3Y Short Block
Dimensions (L * W * H)			mm	710550720	650400640	635380450
Volume per set			M 3	0.29	0.17	0.11
Gross weight			Kg	174	120	91
Net weight			Kg	154	106	83
Packing			Plastic bag + steel bracket + paper carton
20# Container Load			set	96	144	270
5.92.322.32(m)			set	96	144	270

Prod Model:	Match for Toyota 3Y/4Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	TS16949
Discharge Standard:	Euro II
Body Material:	Aluminium
Cylinder:	Multi-cylinder
Fuel:	Gasoline
Cold Style:	Water-cooled
Stroke:	4 Stroke
Power:	Hydraulic
Start:	Electric Start

Wenling Minshine Trading Co., Ltd. Was established in 2012, is a professional foreign trade company engaged in all kinds of auto parts like Gearbox, Engine, Cylinder Head, Crankshaft, Camshaft, Center portion and so on. We have our own OEM factory, called ZHEJIANG ZOMAX AUTO-TRANSMISSION Co., Ltd. That are located in Wenling city, Zhejiang province, with convenient transportation access to Ningbo and Shanghai. Our target market are Southeast Asia, South Africa, MID East, South America and so on. All our products are comply with international quality standard and are generally appreciated in a variety of different markets throughout the world. We focused on the high quality, good customer service and selling in competitive price.

We are sincerely looking forward to establish a good relationship with new clients around the world.
