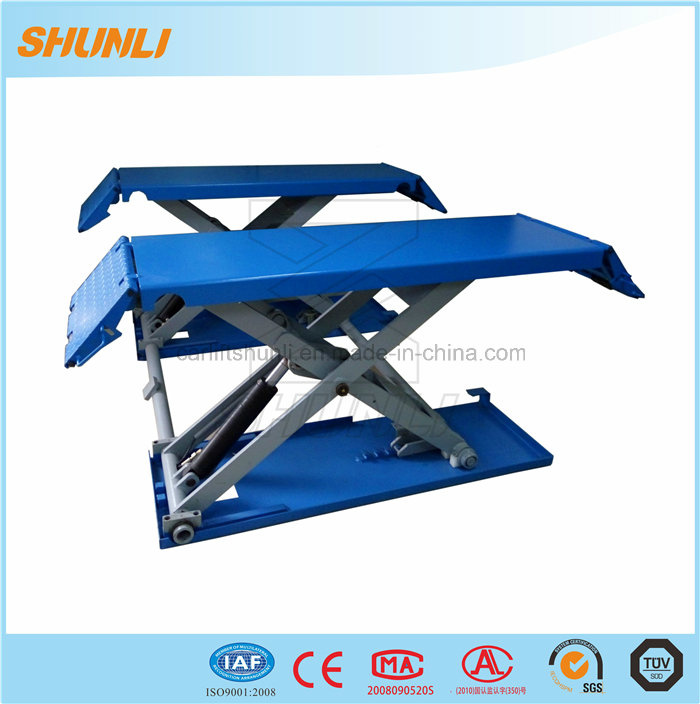

| Prod Model: |
SHL-Y-J-DW3.0A |
| Lifting Height: |
1000mm |
| Platform Length: |
1410-2010mm |
| Platform Width: |
460mm |
| Initial Height: |
110mm |
| Motor: |
220V, 380V, 2.2kw |
| Type: |
Double Cylinder Hydraulic Lift |
| Lifting Capacity: |
3T |
| Certification: |
ISO |
| Design: |
Scissor |
| Brand: |
Shunli |
Product Description
Product Specification·Surface mounting at minimum height of 110mm·Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity·Components are made by laser cutting machine or other CNC equipment.·Mechanical safety lock engaged auto manically. Electric release when lowering safety lock ·It can be moved easily by the exceptional mobile kit·The middle steel bar connects two platforms ensure stably and synchronize·Platform extension makes possible service for more vehicles. Technical Parameter
| Model | SHL-Y-J-DW3.0A |
| Lifting capacity | 3000kg |
| Lifting Max. height | 1000mm |
| Lifting Min. Height | 110mm |
| Platform length | 1410-2010mm |
| Platform Width | 460mm |
| Motor Power | 2.2KW 220V/380V |
| Air pressure | 0.4-0.6Mpa |

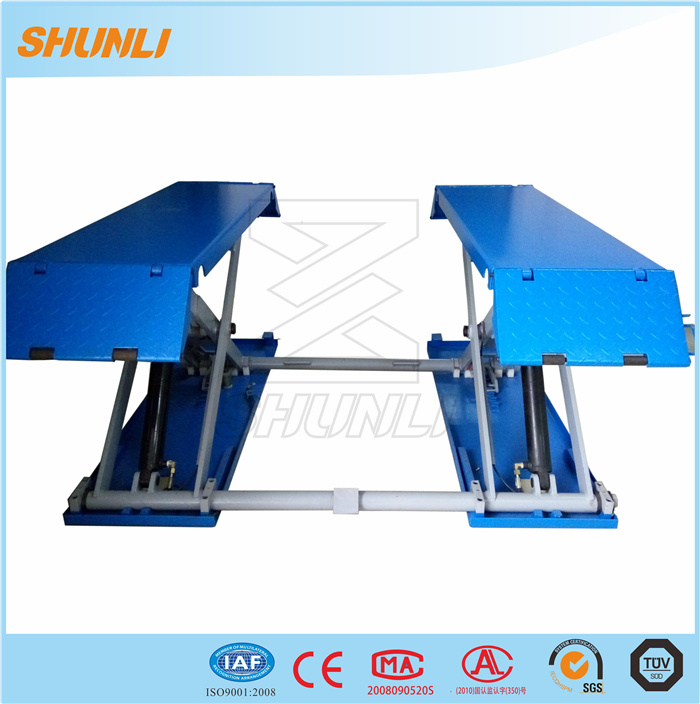

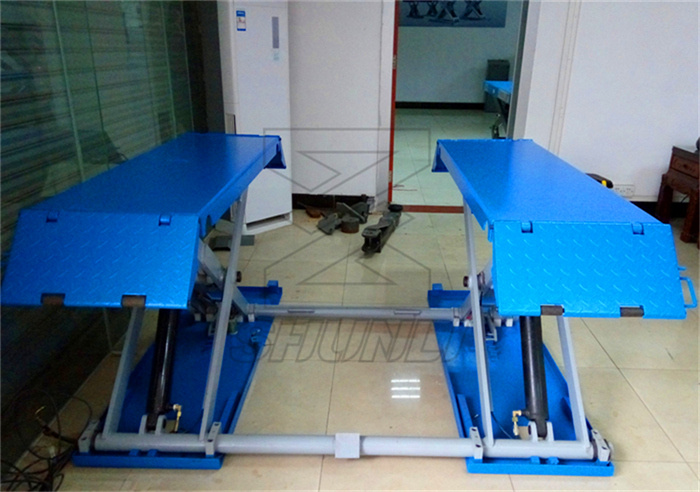

Product Detail Showing
About the SHUNLI's Equipment
Out Advantage:1) Factory direct sales. Good price and fast service.
Not need to pay for the third company, make the order with us, than send the product to you directly. If your
product have any question, try to find us, we will give you answer directly.
2) Advantage of equipment make sure good quality product.
500T CNC lathe, 200M painting and baking line, Robot welder machine and Import seal material
3) Good package of product. Each product have more than three layer package
4) 24 months warranty. Long time after sale service.
5) Solid steel X structure material. More stronger than tube steel
6) We have SGS certification.
7) We have 3.0T /4.5T /5T scissor lift have CE certification. 4T/5T post car lift have CE certification
8) We can produce 105mm thin scissor lift.
9) We can according customer's design to make the special car lift to you.
Welcome to contact us for more detail information
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
