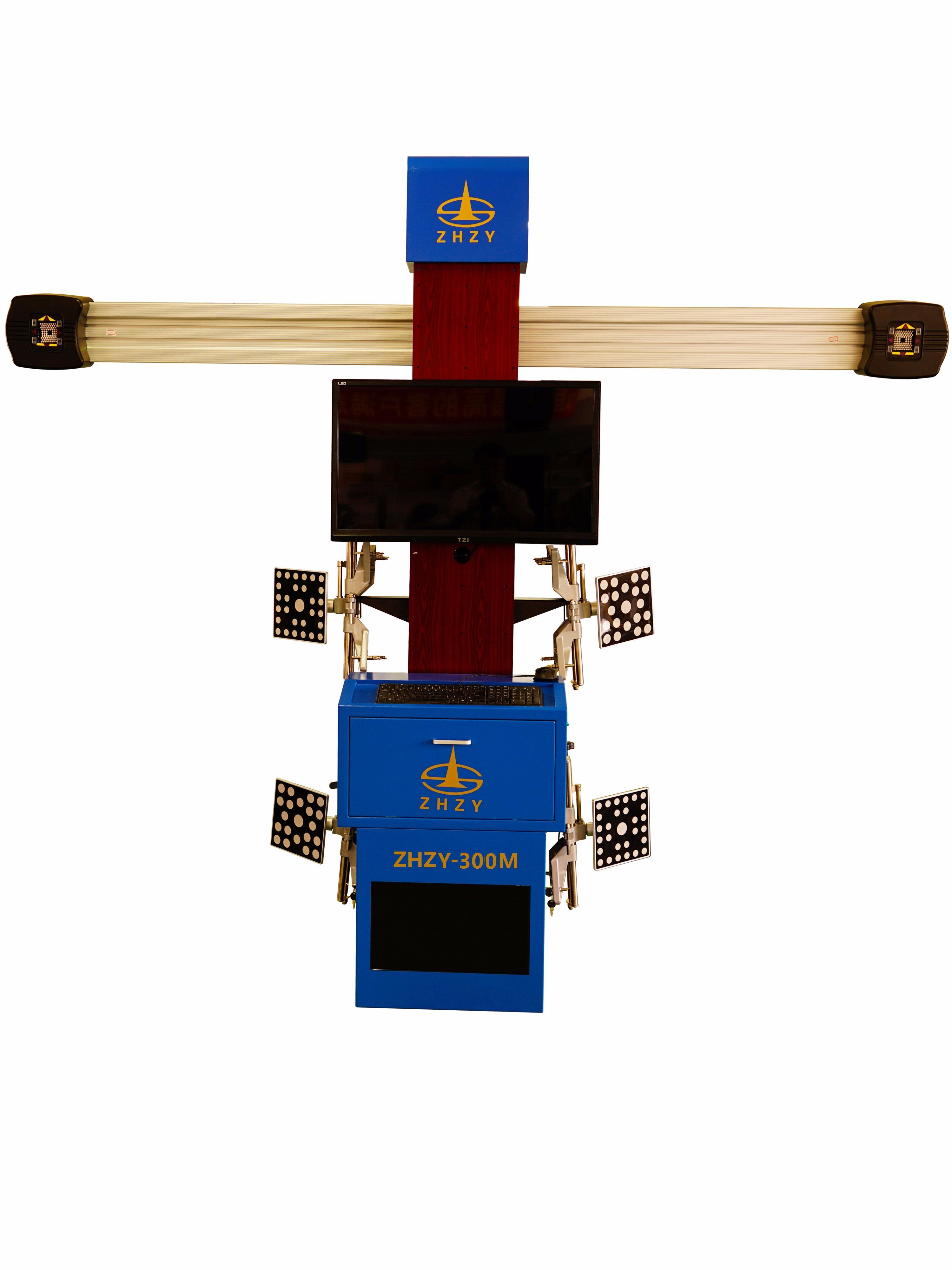

3D Four Wheel Positioning Instrument

3D Four Wheel Positioning Instrument
Price: US $ 2000-2800/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: ZHZY-300M
Certification: ISO
Update Method: by Email

Product Description

        3D wheel aligners for trucks are designed to take measurements and make adjustments on trucks in automotive companies, car service stations, automotive manufacturing plants, and diagnostic centers.

It allows taking measurements on heavy-duty vehicles with the wheelbase up to 16 meters.

The operation of the wheel aligners is based on measurements of wheel axis angle parameters by video cameras and high-precision image targets.

Wheel aligners include the following basic parts:

1. Computer console

ergonomic operating control panel;
full-size keyboard ;
membrane keyboard duplicating main functional keys
wireless remote control;
up-to-date high-speed quad-core processor;
21.5" color widescreen LCD monitor;
color inkjet printer;
TechnoVector 3D software.

2. Self-centering clamps.

Self-centering clamps fit disks up to 32" rims.

3. Targets.

Target boards covered with reflective sheeting do not contain electronic elements and consist of:

4.

Machine vision system.

Machine vision system housings are vertical pillars equipped with precision network camera units based on high-quality matrices. Data transfer from the camera units to the PC is carried out over TCP/IP.

Such a location of the machine vision system allows you to take into account individual peculiarities of a certain workplace and allows a passage.

The machine vision system allows automatic recognition of targets installed on vehicle wheels and the position of the probe target and high-precision recognition of their geometrical position in space.
5. FOSTAR 3D software

Microsoft Windows 7  is used as a licensed operating system.

The 3D program interface allows you to see position and wheel alignment angles on the screen in real-time mode.

The user-friendly interface and advanced Help and Support System allow even novices to learn how to use the wheel aligner quickly and start working.

There are the most up-to-date mathematical algorithms used in the software that allow for the slightest image distortions made by the optical system.

The software includes an advanced report control system.
6. Accessories package.

Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
