| Prod Model: |
395A/394A 395/394A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
Stock |
| Type: |
Wheel Hub Bearing |
| Material: |
Chrome Steel |
| Tolerance: |
P5 |
| Certification: |
ISO9001 |
| Clearance: |
C3 |
| ABS: |
With ABS |
| Brand: |
SKF NSK NTN Koyo Timken Ikc |
Product Description
Koyo, NACHI, Timken, NSK, NTN, SKF brand -taper roller bearing, auto bearing, wheel bearing for Japanese car Bearing No. Ref. Series 1:
LM11749/10 LM11949/10 M12649/10 LM12749/10 LM12749/11 L44643/10 M84548/10 15103/245 15103S/243 L44649/10 L45449/10 329013 M86649/10 LM67048/10 LM67049A/10 15123/245 2580/20 M88048/10 LM48548/10 25877/20 25877/21 2793/20 31594/20 3872/20 L68149/10 L68149/11 HM89449/10 JL69349/10 2776/20 2788/20 418/414 2789/20 HM801349/10 LM300849/11 HM803146/10 HM803146/11 18590/20 LM501349/10 LM501349/14 11162/300 25578/20 HM801349/10 HM801349/11 25580/20 25582/20 HM803149/10 3782/20 3776/20 LM102949/10 LM603049/11 25590/20 25590/22 25590/23 LM503349A/10 18690/20 359A/354A 3778/20 JLM104948/10 LM104949/11 18790/20 18790/243780/20 LM806649/10 387/382A 387A/382A 387AS/382A 387S/382A 462/453X 29580/20
Bearing No. Ref. Series 2:
02474/20, 02475/20, 09067/195, 102949/10, 104948/10, 104949/11, 11162/300, 11590/20, 11749/10, 11949/10, 12649/10, 1280/20, 14118/283, 14127A/276, 14138A/276, 15123/245, 16150/284, 17887/31, 18590/20, 19150T/282, 1988/20, 21075/12, 212047/10, 212049/11, 215249/10, 218248/10, 220149/10, 25580/20, 25590/20, 25880/20, 25883/24, 27687/20, 2788/20, 28580/21, 28584/22, 28985/20, 29585/20, 29586/20, 29586/22, 29590/20, 29675/20, 29685/20, 29749/10, 29749/11, 31593/20, 300849/10, 33252/462, 33275/462, 33281/472, 33287/462, 3382/25, 3490/20, 359S/354X, 368A/362A, 3767/20, 3778/20, 3780/20, 3782/20, 3795/20, 387A/382A, 387/382, 389AS/382, 39236/433, 395A/394A, 395A/396A, 39581/20, 39590/20, 3982/20, 3984/20, 3994/20, 418/414, 44643/10, 44649/10, 45284/20,
Bearing No. Ref. Series 3:
45289/20, 45449/10, 462/453X, 480/472, 48548/10, 501349/10, 503349/10, 515649/10, 518445/10, 536/532X, 55176/443, 55187/443, 566/563, 567/563, 570/572, 580/572, 596A/592A, 603049/11, 65385/20, 67048/10, 68149/10, 68149/11, 69349/10, 710949/10, 749/742, 801346/10, 801349/10, 801349/12, 84548/10, 86649/10, 88048A/10, 88048S/10, 88048/10, 88547/10, 88649/10, 89446/10, 89449/10, 903249/10, 907639/10, 15120, 25580, 14136A, 7815, 24780/20, 2788/20, 903249, 88047, 911245/20, 913843/20, 683/672, 903249, 37425, 3984, 911242
Product: Tapered roller bearing, taper bearing, roller bearing, inch bearing, bearings.
| SINGLE ROW TAPERED ROLLER BEARINGS, INCH SERIES |
| Bearing No. | Boundary dimensions(mm) | Load ratings(kN) | Limiting speeds(RPM) |
| d | D | T | B | r(min) | r1(min) | Cr | C0r | Grease lub. | Oil lub |
| JH211749A/10 | 65 | 120 | 39 | 38.5 | 7.1 | 2.8 | 189 | 255 | 3200 | 4300 |
| 6379/20 | 65.088 | 135.755 | 53.975 | 56.007 | 3.6 | 3.2 | 266 | 357 | 3000 | 4000 |
| H715340/11 | 65.088 | 136.525 | 46.038 | 46.038 | 3.6 | 3.2 | 231 | 369 | 2800 | 3700 |
| 5595R/35 | 65.883 | 122.238 | 43.658 | 43.764 | 3.6 | 3.2 | 221 | 318 | 3200 | 4300 |

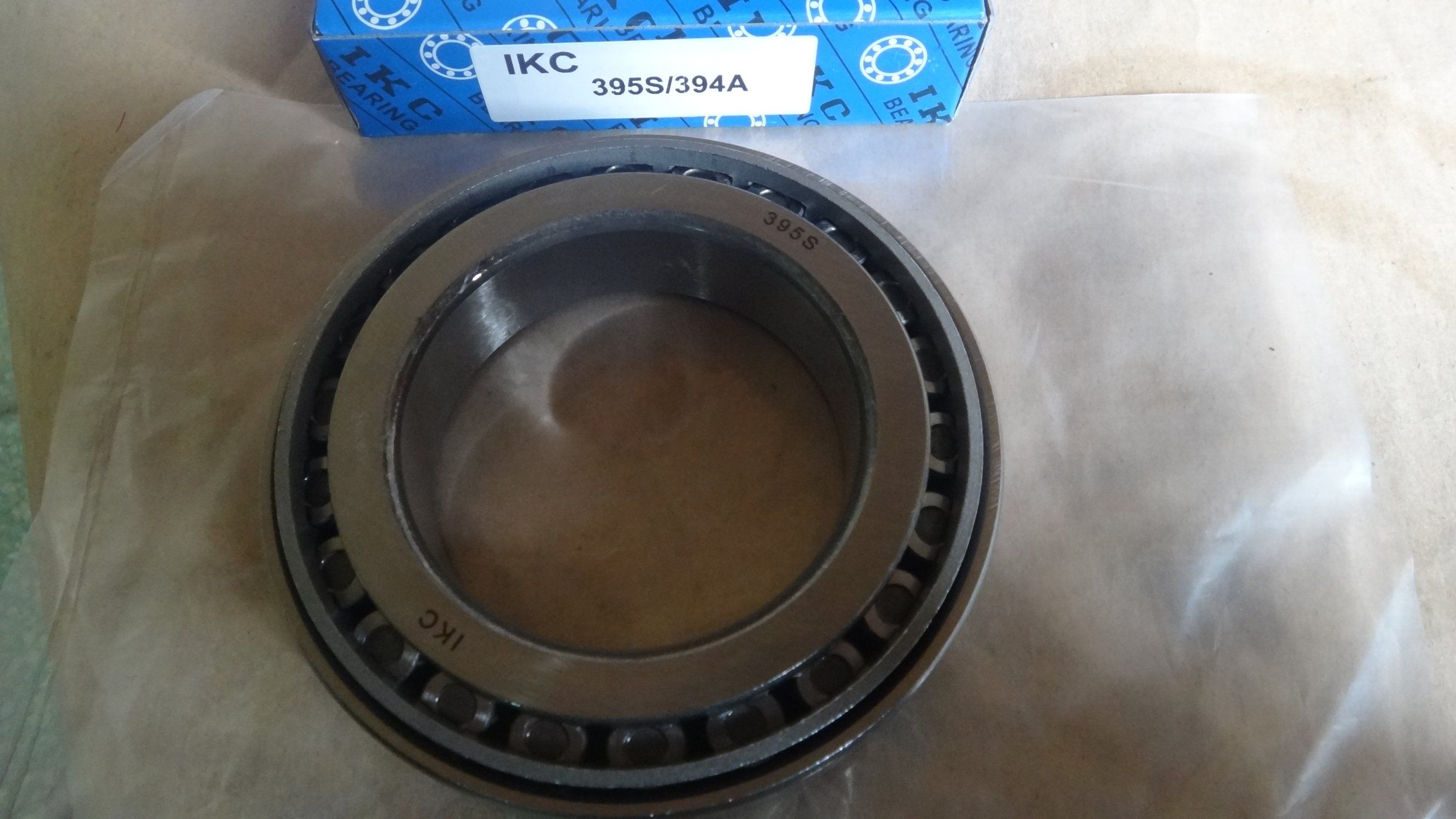

| 395A/394A | 66.675 | 110 | 22 | 21.996 | 0.8 | 1.2 | 86.4 | 116 | 3400 | 4500 |
| 395S/394A | 66.675 | 110 | 22 | 21.996 | 3.6 | 1.2 | 86.4 | 116 | 3400 | 4500 |
| 3984/25 | 66.675 | 112.712 | 30.162 | 30.048 | 3.6 | 0.8 | 111 | 164 | 3400 | 4500 |
| 39590/20 | 66.675 | 112.712 | 30.162 | 30.162 | 3.6 | 3.2 | 147 | 207 | 3300 | 4500 |
| 39590/21 | 66.675 | 112.712 | 30.162 | 30.162 | 3.6 | 0.8 | 147 | 207 | 3300 | 4500 |
| 33262/462 | 66.675 | 117.475 | 30.162 | 30.162 | 3.6 | 3.2 | 118 | 179 | 3200 | 4200 |
| HM212049/10 | 66.675 | 122.238 | 38.1 | 38.354 | 3.6 | 1.6 | 191 | 249 | 3200 | 4300 |
| HM813844/11 | 66.675 | 127 | 36.512 | 36.512 | 3.6 | 1.6 | 166 | 235 | 3000 | 4000 |
| 641/633 | 66.675 | 130.175 | 41.275 | 41.275 | 3.6 | 3.2 | 197 | 267 | 3000 | 3900 |
| 6386/20 | 66.675 | 135.755 | 53.975 | 56.007 | 4.3 | 3.2 | 266 | 357 | 3000 | 4000 |
IKC MACHINERY Bearing Co., Ltd. One of the largest bearings' Exporters, from China. Sales size diameter in the 5mm-1800mm, SKF Bearing, NSK Bearing, NTN Bearing, NACHI Bearing, IKO Bearing, THK Bearing, TIMKEN bearing. TWB bearing, ZWZ bearing, HRB bearing, FYH bearing, EZO bearing, NMB bearing, GPZ bearing,
Taper roller bearings
Deep groove ball bearings
Pillow block bearings
Spherical roller bearings
Spherical Roller Thrust Bearing
Self-aligning ball bearings
Agricultural bearings
Thrust ball bearings
Cylindrical roller bearings
Angular contact ball bearings
Needle roller bearings
Wheel hub bearings
Conveyor bearing
Spherical plain bearing
Plummer Block
Automotive Clutch Release Bearing
IKC Bearing Co., Ltd was founded in 1998, the registered capital of 2.53 million US dollars. IKC is a high-tech enterprise which is specialized in researching and manufacturing high common bearings. Since 1986, IKC has accumulated 20 years' Bearing innovation and production. During the 20 years, IKC persist with "quality first, innovation win, service first" as purpose; "The pursuit of perfect quality, create first-class brand" as management policy, promoting the brand strategy, continuously improving product quality and brand connotation. IKC always do as customer requirement, insisting on creating excellent products and providing first-calss service for our customers.
