30tauto Truck Scissor Lift (SHL-Y-J-30T)

Name: 30tauto Truck Scissor Lift (SHL-Y-J-30T)
Brand: ibuyautoparts.com
SKU: 775483935
Availability: InStock
Rating: 4.6 (55 reviews)

Price:	US $ 37000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specification

1.Oil cylinder built-in explosion-proof device;

2.8 cylinder hydraulic balance system and mechanical safety with automatic unlock are equipped

3.Mechanical safety locking with features of automatic engagement and pneumatic release;

4.Unique conjoined X structure. Solid steel plate made of high precision numerical control design, overcome steel pipe rigidity. Not easy to rust, more reasonable and secure;

5.Super precision alignment scissor lift, double hidden design small space;

6.Automatically open the pneumatic rack insurance device when the lift down, super durable slide block;

7.Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity

8.Main hydraulic parts imported from Japan, Germany. High-quality, stable, safe and reliable

9.24V safety control circuit. Easy operation the electric control cabinet.

10.Shot blasting and high temperature baking powder coated surface finish

11.Components are made by laser cutting machine or other CNC equipment

Technical parameter

Model	SHL-Y-J-15T	SHL-Y-J-20T	SHL-Y-J-24T	SHL-Y-J-30T
Lifting Capacity	15000kg	20000kg	24000kg	30000kg
Host Lifting Height	1980mm	1980mm	1980mm	1980mm
The Platform Length	11720mm	11720mm	11720mm	11720mm
The Platform Width	850mm	850mm	850mm	850mm
Quanity of Cylinder(Automatic Balance )	4/8	8	8	8
Motor	7.5kw	7.5kw	7.5kw	7.5kw
Power	380V	380V	380V	380V
Air Pressure	0.4-0.6mpa	0.4-0.6mpa	0.4-0.6mpa	0.4-0.6mpa

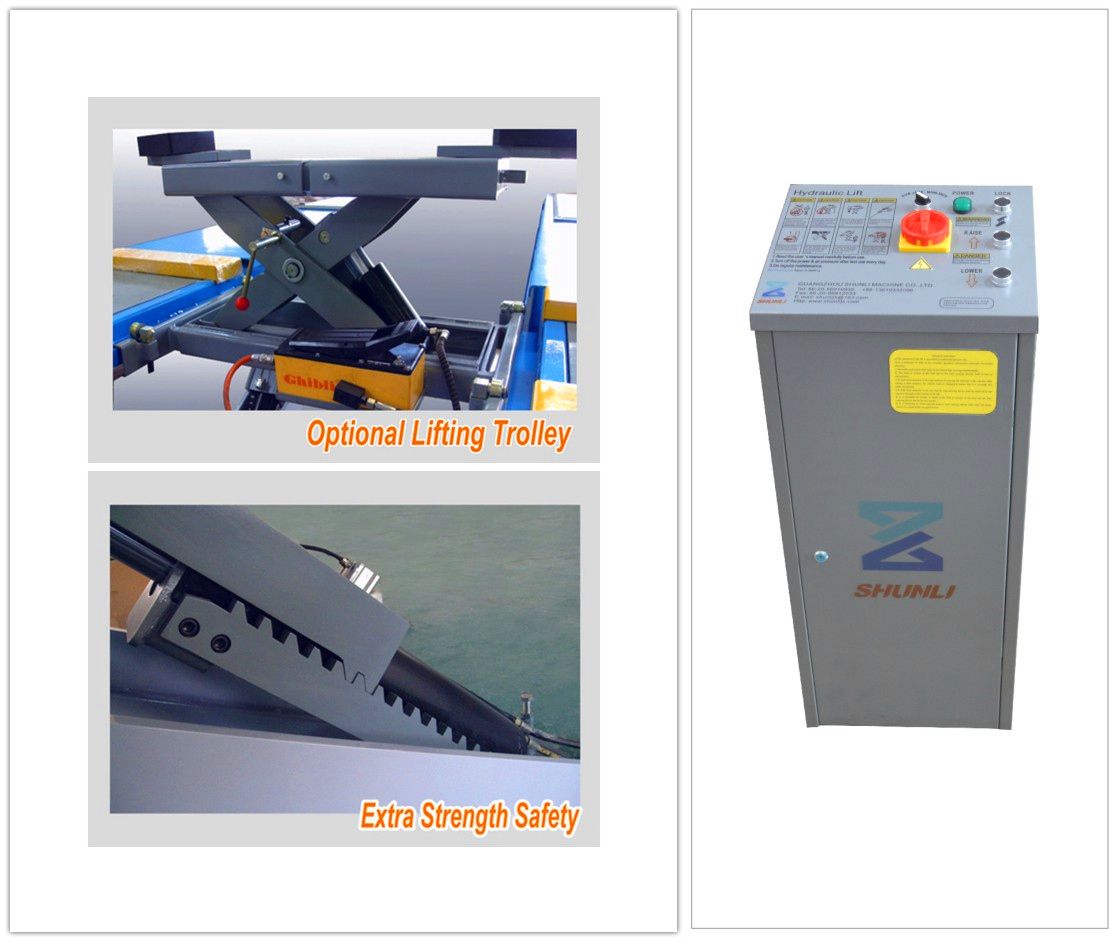

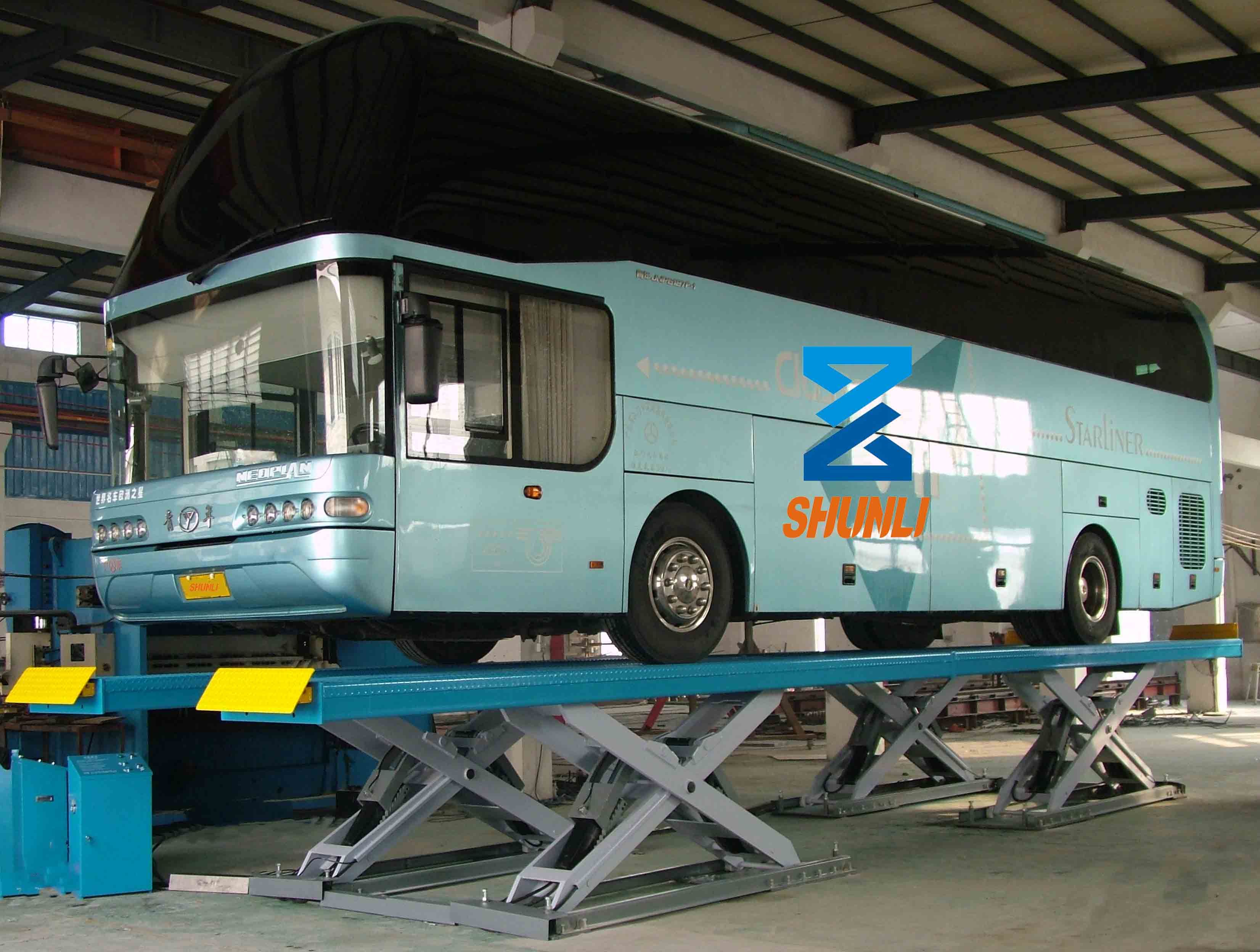

Product Details

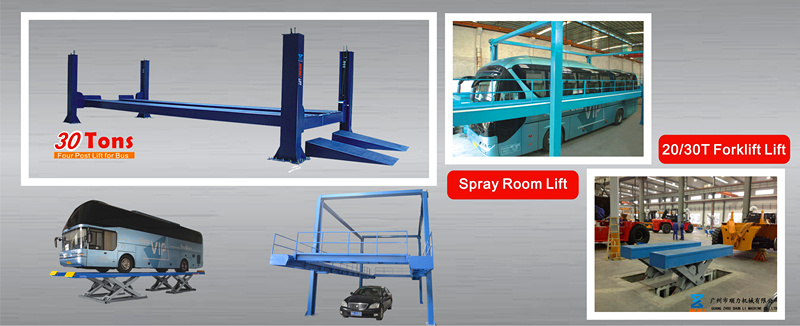

Other Heavy Duty LIft

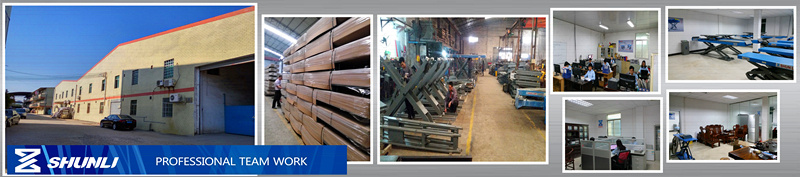

Our Factory

Prod Model:	SHL-Y-J-30T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor:	7.5kw
Lifting Height (Main Machine):	1980mm
Main Lifting Capacity:	30000kg
Platform Length:	11720kg
Certification:	ISO
Design:	Scissor
Type:	Eight Cylinder Hydraulic Lift
Lifting Capacity:	24000kg
Brand:	Shunli

GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.

The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.

In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.

With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.

We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
