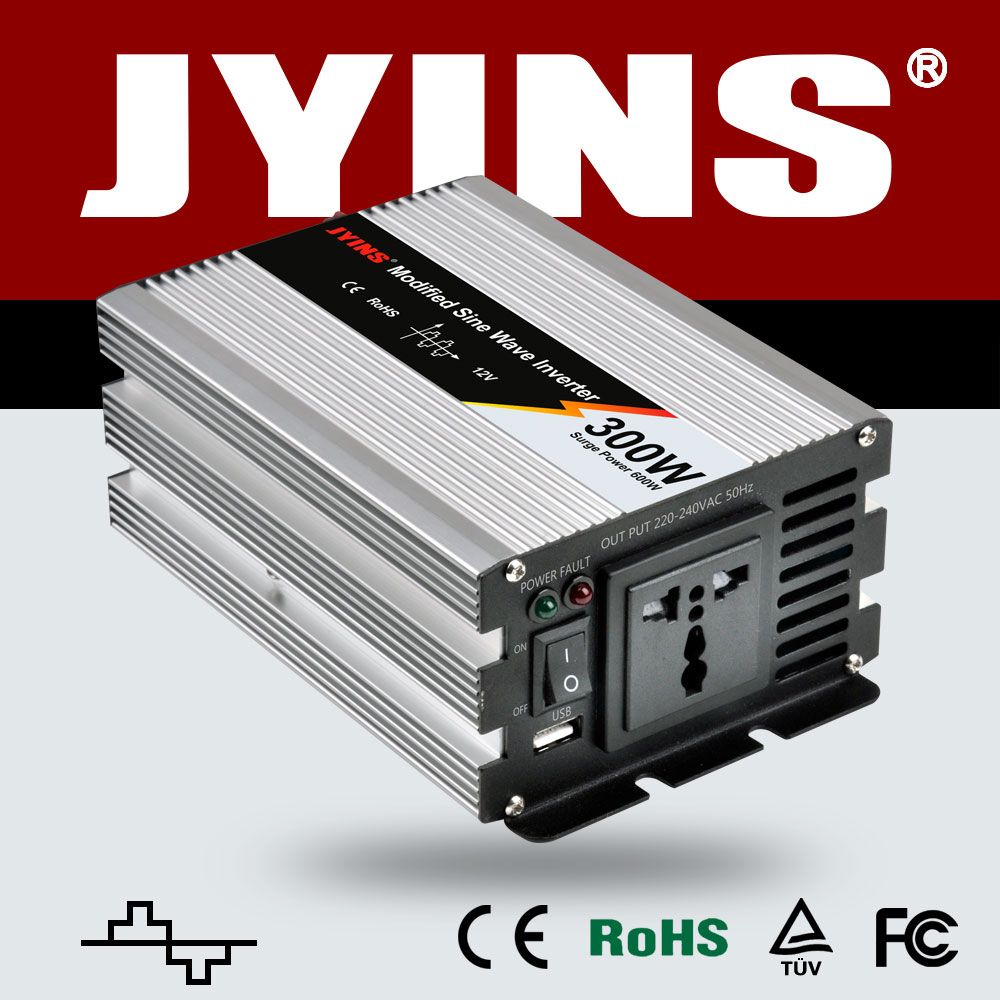

DC/AC 300w car frequency inverter / frequency converter (JYM300)
Product Description:
JYINS modified sine wave inverters / frequency inverter / frequency converter is one of the most popular power inverter series since the beginning. We produce the power range from 200W to 5000W recently. JYINS 300W inverter It convert 12V/24VDC to 100-120V/220-240V AC, you can power for your electric appliances which rated power less 300W continuously. There is DC cable with cigarette lighter plug and the DC cable clips included in packing, you can use in your car by plug into cigarette lighter socket or directly with batteries. The optional USB output port offer one more choise for user. It can charge for some digital equipments as you want.
Product Features:
· Anodized alluminum case provides durability & max heat dissipation
· DC cigarette lighter accessory plug and heavy duty cable clamps for high-output direct battery connections both included.
· Automatic restart function.
· USB output port: 5V500mA (optional )
· ON/OFF switch control the inverter by hand
· The inverter is compact, light weight and easy to operate.
· Loads can be powered directly from the AC outlets.
· The inverter is equipped with numerous protection features to guarantee safe and trouble-free
Protection Function:
· Low voltage alarm & Shut down
· Over voltage protection
· Overload protection
· Over temperature protection
· Short circuit protection
· Reverse Polarity protection
· Soft start
· Auto. Reset after being in protected
| Model | JYM300-121 | JYM300-122 | JYM300-241 | JYM300-242 |
| Rated Power | 300W |
| Peak Power | 600W |
| Output Voltage | 110V | 230V | 110V | 230V |
| Frequency | 50/60Hz±3 |
| USB Port | 5V,500mA(Optional) |
| Output Waveform | Modified Sine Wave |
| Protection Function | Bat.Low Voltage Alarm&Shut Down,Overload,Over Temperature,Overvoltage,ShortCicuit,Reverse Polarity |
| Input Voltage | 12V | 24V |
| Dimension | 150×122×50mm(L×W×H) |
| N.W./unit | 600g |
| QTY/Ctn | 24Pcs |
| Packing | Gift box |
| Meas./Ctn | 55.5×34.5×38cm |
| Warranty | 18Months |
