3 Ply Convoluted Charge Air Cooler Silicone Hose
| Price: |
US $ 10/Piece |
| Trade Terms: |
FOB,CFR,DAP |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |

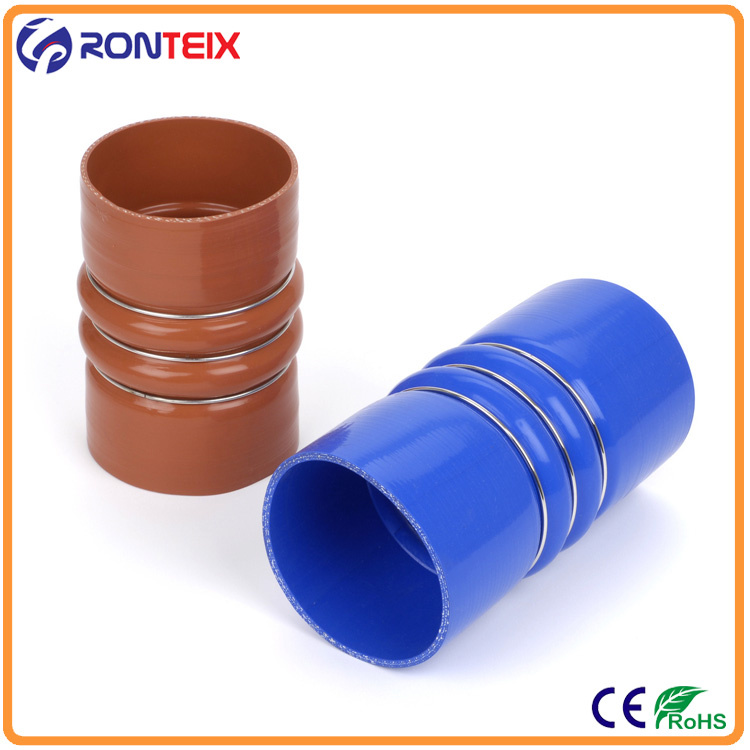

3 Ply Convoluted Charge Air Cooler Silicone Hose
Silicon hose, silicone hose kit, coolant hose, radiator silicone hose, straight reducer, elbow silicone hose,
T shape silicone hose.

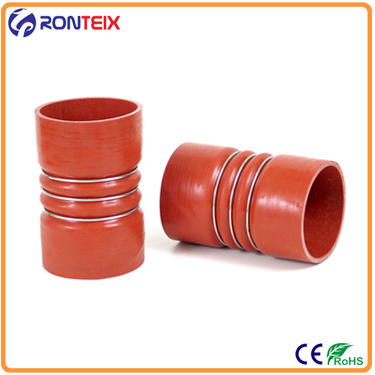

3 Ply Woven Aramid Convoluted Silicone Hose with Stainless Steel Retention Rings -70 Durometer
Ultra-Clean logo free design
Nominal 0.130" Wall Thickness (. 110"-. 150" Range
0.100" Stainless Steel Retention Ring (3)
Recommended working temperatures: -65° To 450° F
For Heavy Duty Induction and Pressurized Air Applications
Our standard silicone hose products are not suitable for use with pressurized oil or fuel. We do, however, offer special Fluorocarbon and Fluorosilicone liners that offer superior chemical resistance. Please contact our engineering department for more details or for support in designing a chemical resistant hose to meet your specific requirements.
Meets and exceeds all performance and physical criteria of SAE J20 R1, SAE J20 R1 H. T. Class A, TMC RP303B Grade I and Grade II, Mil Spec A-A-52426 and various other heavy-duty OEM specifications.
Excellent ozone and UV resistance.
Commonly used in the following applications: Turbo, supercharger or Intercooler connections or virtually any air to air application where high temperatures or extreme working conditions exist. This product works well for offset piping connections or where extreme vibration or lateral movement exists. The hose is convoluted on both the inside and outside.
Used in aerospace applications, performance motors and vehicles, commercial truck and bus induction systems, agricultural and off highway vehicles, all turbo diesel applications and general manufacturing industries worldwide.

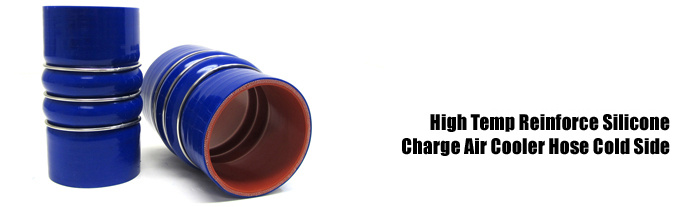

Cold Side Charge Air Cooler Hose
Hot Side Charge Air Cooler Hose
3.000" ID X 6.000" Length, Polyester CAC Hose with Rings, Blue Color
3.500" ID X 6.000" Length, Aramid CAC Hose with Rings
3.500" ID X 6.000" Length, Polyester CAC Hose with Rings, Blue Color
4.000" ID X 6.000" Length, Aramid CAC Hose with Rings
4.000" ID X 6.000" Length, Polyester CAC Hose with Rings, Blue Color
4.000" ID X 8.000" Length, Aramid CAC Hose with Rings
4.500" ID X 6.000" Length, Aramid CAC Hose with Rings
4.500" ID X 6.000" Length, Polyester CAC Hose with Rings, Blue Color | Ply | Colour |
| 3 | blue,black |
| 3 | red black |
dadasda
| Prod Model: |
Convoluted chare air cooler hose |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
All Sizes Are Available |
| Colour: |
Red,Blue,Black |
| Type: |
Cooling System |
| Muffler Type: |
Rear Muffler |
| Deck: |
Double |
| Material: |
Silicone |
