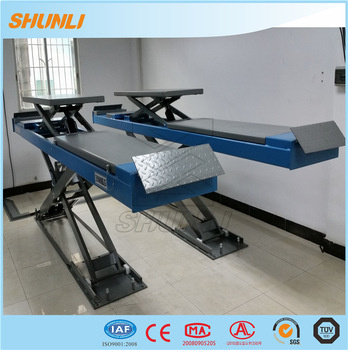

3.5t Ultrathin Four Wheel Alignemnt Hydraulic Scissors Lift with Ce
Price: |
US $ 3699-3899/Set |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,Western Union |

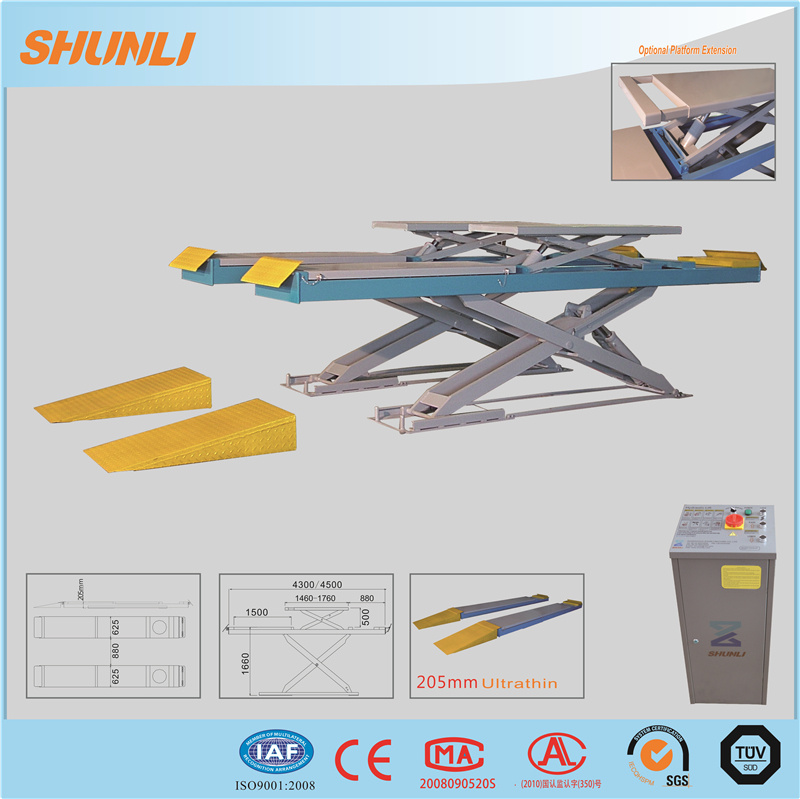

1. Double level scissor lift has 205 mm above the ground at the lowest level.
2. 24V safety control circuit
3. The stable performance of the oil level regulating device ensures the requirement of high precision and better synchronization performance.
4. Open the pneumatic rack insurance device automatically when declining. The structure is more reasonable and more safety. Oil less and ultra abrasive resistance slider.
5. 6 cylinders, double hydraulic balance system (main lift) and mechanical safety with automatic unlock are equipped.
6. Laser cutting whole-plate platforms, more accurate and stronger.
7. Solid steel plate is high strength and corrosion resistant, not rust, not easy deformation, more reasonable and safe structure.
8. The main hydraulic components are selected from importable parts from Japan, Germany, safe and reliable.
9. Second-level extensible platform. Model | SHL-Y-J-35CBL | Motor Power | 380V/220V 2.2KW |
Lift Capacity | 3.5T | Air Pressure | 0.4-0.6Mpa |
Color | Blue/Red/Grey/Yellow | Main Lift Platform Width | 625mm |
Initial Height | 205mm | Warranty | 18months |
Main Lift Lifting Time | 40-60s | Main Lift Lifting Height | 1660mm |
Sub-lift Lifting Time | 10-30s | Sub-lift Lifting Height | 500mm |
Main Lift Platform Length | 4300mm | Sub-lift Platform Length | 1460-1760mm |

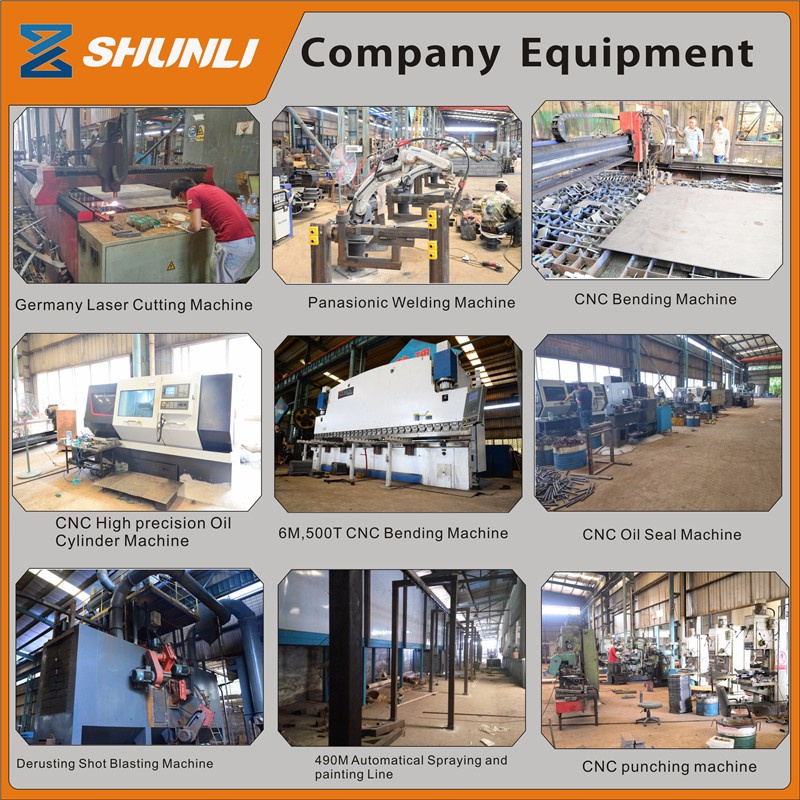

We have production machinery like hydraulic bending, CNC automatic cutting, drilling, CNC lathe milling, welding machines and necessary special tools in production of machinery.
Our oversea customers, our friends, came to Guangzhou, Guangdong province, China visiting our factory and discussing our products,car lift, in details. There is a win-win to us. We have 7 models product with CE Certification, including 3T/4T/5T scissor lift, 4T/5T post car lift/ 4T four post car lift.Test report certification including scissor lift, two post car lift and four post car lift.
GUANGZHOU SHUNLI MACHINE Co., LTd
Our company goes to take part in a lot of exhibition showing in time. If you are our agent, you will have chances in the exhibition showing to get more new customers. GUANGZHOU SHUNLI MACHINE CO., LTD, is a profession company in manufacturing garage equipment, main production is vehicle lifts, including double scissor lift, wheel alignment scissor lift, 2 and 4 post lift and special application lift for projects.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30,000 square meters, with 130 workers, including one design and technology team.
Prod Model: |
SHL-Y-J-35CBL |
Motor Power: |
380V/220V 2.2kw |
Capacity: |
3500kg |
Air Pressure: |
0.4-0.6MPa |
Main Lift Platform Width: |
625mm |
Warranty: |
18months |
Color: |
Blue/Red/Grey/Yellow |
Initial Height: |
205mm |
Main Lift Platform Length: |
4300mm |
Main Lift Lifting Height: |
1660mm |
Lifting Capacity: |
3.5T |
Certification: |
ISO |
Design: |
Scissor |
Type: |
6 Cylinder Hydraclic Lift5 |
Brand: |
Shunli |
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
