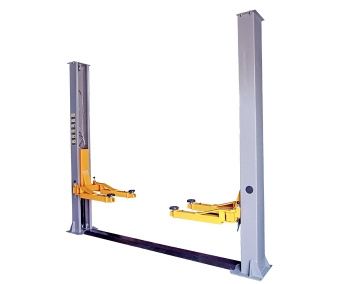

3.5 T Two Post Hydraulic Car Lift, / Garage Equipment.
| Price: |
US $ 670-850/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Features:1.The base plate type design,which is suitable for the auto repair shop or workshop with low ground floor,can enhance the support force of the lift and the ground,and improve the overall security coefficent by 20%;
2.Equipped with two-cylinder,plate chain and steel wire rope balance system,the lift goes up and down smoothly;
3.The hydraulic power unit is equipped with the throtting device,you can therefore adjust the descent speed at any time;
4.Mechanical safety device of intermational standards;
5.Double insurance from self-locking protection device makes the operation safe and easy;
6.Connected simuitaneously by two ropes,thereby forcing two slides to move simultaneously and effectively preventing the vehicle from tilting;
7.Various arm design for you to choose;
8.Rubber support pads are equipped with both the single-screw height adjustment and the staged height adjustment,which is for your random selection;
9.Large load carrying chains,safe and reliable;
10.Pass the 115% dynamic and 150% static tests; |
Specification:| Lifting capacity | 3500kg |
| Lifting time | 40-50s/50s |
| Lifting height | 1800mm |
| Air pressure | 6-8bar |
| Minimum height | 125mm |
| Motor power | 2.2kw |
| Overall width/height | 3340mm/2830mm |
| Power Supply | 110V/230V/400V |
| Weight | 550kg |
| Packing size | 2850mm*450mm*670mm |
| Width between columns | 2850mm |
| Prod Model: |
MT-TP35A |
| Lifting Height: |
1800mm |
| Machine Weight: |
About 550 Kg |
| Electric Supply: |
220V /380V/110V |
| Min Height: |
125mm |
| Lifting Time: |
40s-50s |
| Air Pressure: |
6-8bar |
| Motor Power: |
2.2kw |
| Overall Height: |
2830mm |
| Overall Width: |
3340mm |
| Width Between: |
2850mm |
| Type: |
Double Cylinder Hydraulic Lift |
| Lifting Capacity: |
3.5T |
| Design: |
Two Post |
Yingkou First Tech Co., Ltd located in Station, Yingkou City, Liaoning province and the transportation is convenient.
We are a manufacture of car lift, tire changer, wheel balancer and other auto maintenance service equipment for car repair and 4S shop.
The company has a set of advanced equipment for R&D, production, quality Control, gathers a group of professional technicians to engaged in product research and development. It can provide various kinds of special specification products and technology service for customers. Products have been exported to many countries and area, such as Western Europe, North America, Eastern Asia Middle East, etc.
Our strong points:
Strong R&D team, OEM&ODM accepted.
Full range products. Strict quality control standard On time delivery.
Good Service: Meeting your requirements is our aim.
Culture & Values
Quality Speaks, Skilled and Dedicated Work Force. Satisfied Customers.
Quality Speaks: We put quality and standard of what we offer on top of market demand. We aim to get more valuable product and service provided so the global business relationship can be kept in long term way.
Trust and Quality Promise: We give equal importance to every customer and deliver the highest standards of integrity all levels of business.
Unmatched Quality: We give high importance to quality and this is attained with the help of pre-defined parameters for all garage equipment related products/services. We follow these processes and methodologies promptly and closely all throughout the various levels of business.
Today we are full of confidence to make great effect to create and look ahead the future, in order to become a leader of the auto maintenance field.
Welcome all friends around the world to work with us!
