Guangzhou Topten Electronics Factory >> 2g & 3G GPS Tracking OBD with Stop Engine, RFID Auto Arm/Disarm (TK228-ER)

2g & 3G GPS Tracking OBD with Stop Engine, RFID Auto Arm/Disarm (TK228-ER)

2g & 3G GPS Tracking OBD with Stop Engine, RFID Auto Arm/Disarm (TK228-ER)
Price: US $ 1-50/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
2G & 3G OBD GPS Tracking with Stop Engine, RFID Remote, Auto Arm/Disarm (TK228-ER)

It's the integration of OBD GPS tracker, RFID Car Alarm, and Bluetooth Diagnostics.

Features& Functions

1. Plug & play design with OBD-II connector, compatible with vehicles with OBD-II connector,
2. It is the integration of GPS tracker + RFID Car alarm + Bluetooth Diagnostics;
3. Arm/disarm by SMS/phone call, or by 2.4G RFID tag automatically;
4. Check the real physical address (such as city name, street name.) directly;
5. Track by SMS/website to get the latitude, longitude, speed, direction & odometer etc.;
6. Movement alarm, Over-speed alarm, Geo-fence alarm;
7. Engine on alarm, power failure alarm, vibration alarm;
8. Anti-tamper alarm, once RFID tag is away, if the device is taken out, it will trigger this alarm;
9. Built-in shock sensor for power saving & triggering vibration alarm;
10. Monitor the voice;
11. Supports 2.4G long-distance contactless RFID ID identification function(optional);
12. Keyless RFID car alarm function(optional);
13. Accurate odometer reading directly via CAN-BUS;
14. Data logger 8Mb for offline GPS waypoint;
15. Industrial design, suitable for extremely harsh condition of work;
16. With IOS APP and Android APP for tracking;
17 Transmission of the following data via blue-tooth or GPRS:
(1) Battery's voltage, RPM, speed, TPS throttle opening, engine load, coolant temperature, fuel consumption, odometer, error code & times, acceleration times & deceleration times;
(2) Driver behavior data: ignition time, total driving time, total idling time, average engine hot-start time, average speed, history high speed, history RPM, total acceleration times & total deceleration times.
18. Work with wireless immobilizer to cut off engine and send alarms

GPS Online Tracking Software

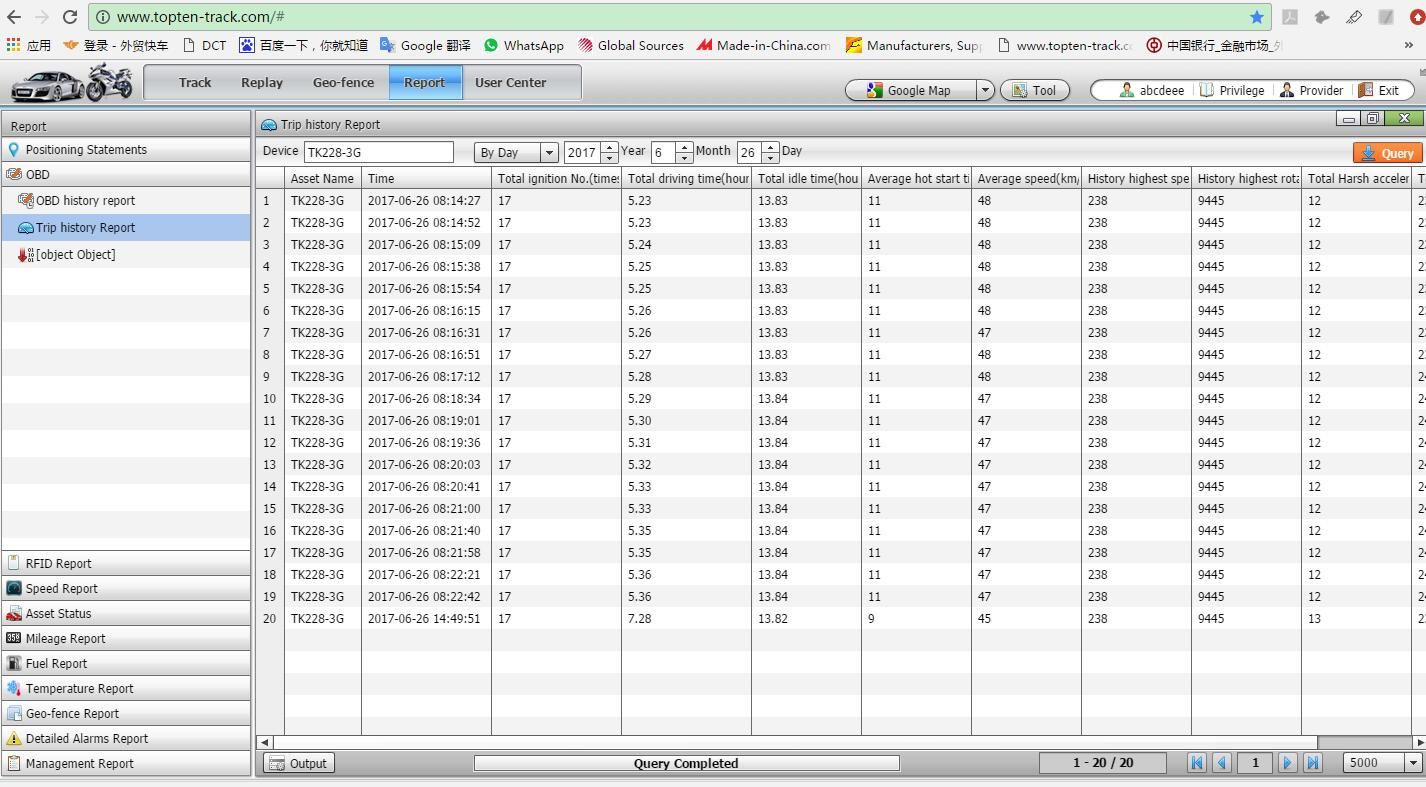

OBD Codes Report

Q: What GSM frequencies does it support?
A: 2G GSM frequencies are 850/900/1800/1900MHz.
3G UMTS frequencies 800/850/900/1900/2100MHz. The GPS device can work worldwide.

Q: What kind of SIM card is needed?
A: Any SIM card that supports 2G network or 3G network and activated with SMS or GPRS data plan.

Q: How much data does it consumes?
A: If user program the device to send data every 30 seconds, it consumes 10Mb to 20 Mb per month.
Welcome to meet us!
Fair: Global Sources Consumer Electronics Show
Date: 11-Apr-2018 to 14-Apr-2018
Location: Asia-World Expo , Hong Kong
Both Number: 1J15

Feel free to contact us for more details please.
Tel: +86 020 3835 1400
Prod Model: TK228
GSM Frequencies: Quad-Band
Voltage: 6V-36VDC
Offline Data Logger: 4MB
Back-up Battery: 250mAh
Arm/Disarm: Auto
Bluetooth: Yes
Anti-Tamper: Yes
RFID: 2.4G
Wireless Immobilzer: Cut off Engine
Design: Plug&Play
Guangzhou Topten Electronics Factory is a leading and professional enterprise which specializes in GSM car alarm system, GPS tracking system and other security products in China.

Topten Electronics Technology Limited is the subsidiary company of Guangzhou Topten Electronics Factory.

Our key products are GPS/GSM car alarm system, GPS/GPRS vehicle tracking system, GSM car alarm system.Parts of our products have gained the CE and FCC approval.It is warmly welcomed by customers from more than 95 countries in Africa, Middle East, Europe and Southeast Asia.

We have much experience in security field, especially in car alarm and GPS vehicle tracking, which makes us experts in providing reliable and cost-effective solutions for monitoring and protecting vehicles.We have strong force in continuous research and development, which enables us to be the leading manufacturer in GPS tracking system and GSM car alarm.

We adopt an advanced management system to ensure a qualified working team and the promptness to act to the market.Strict quality control is executed in each link of the whole production process.Every step from materials to semi-finished items to completed products is operated according to the requirements of ISO9001:2000 quality management system.

With the best service, high quality products, competitive price and attractive functions, we are sure that you will be satisfied with our cooperation.We sincerely hope to establish the friendly and mutual-beneficial partnership with you in the coming future.
