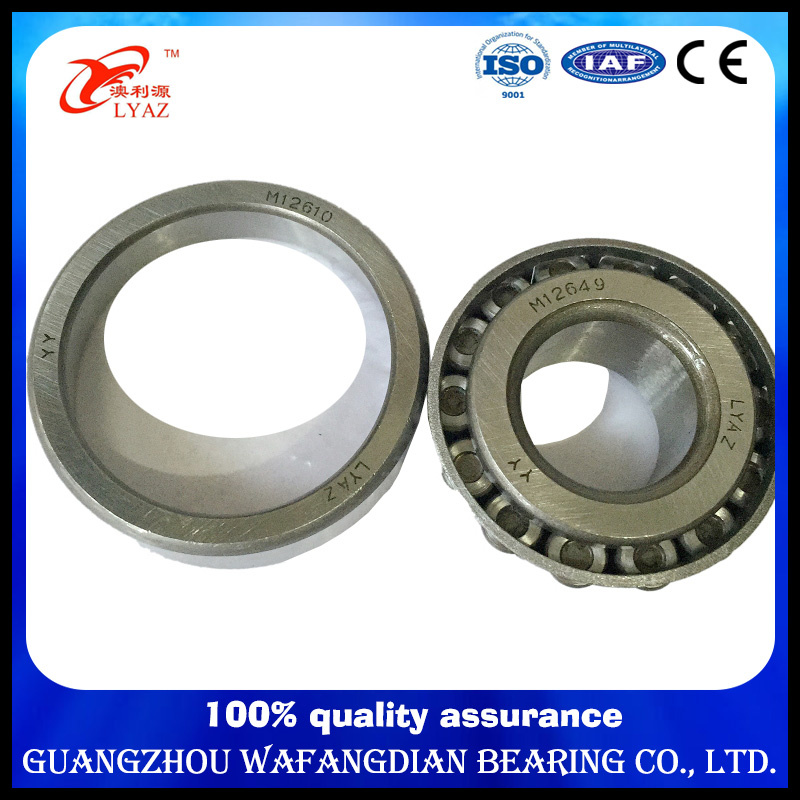

21.43 * 50.005 * 17.526mm Inch Tapered Roller Bearing M12649 / M12610

Name: 21.43 * 50.005 * 17.526mm Inch Tapered Roller Bearing M12649 / M12610
Brand: ibuyautoparts.com
SKU: 705953442
Availability: InStock
Rating: 4.3 (20 reviews)

Price:	US $ 1-1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Quick Details

Structure:	Taper	Type:	Roller	Brand Name:	LYAZ/OEM
Bore Size:	0 - 21.43 mm	Outside Diameter:	0 - 50.005 mm	Model Number:	M12649/10
Precision Rating:	p0 p2 p4 p5 p6	Seals Type:	open 2z 2rs	Number of Row:	Single Row
Place of Origin:	China	weight:	0.17kg	height:	17.526mm

Packaging & Delivery

Packaging Details:	Normal Export packing: packed by carton then pallet will be offered if necessory or according to your special requirements
Delivery Detail:	Large in stock mainly depend on your quantity 10-15days

Specifications
Taper roller bearing
1.Manufacturer&competitive price
2.ISO9001:2008
3.OEM is available
4.Delivery in time
Taper roller bearing LYAZ M12649
taper roller bearing with radial oriented mainly to bear radial and axial joint load. Bearing load capacity depends on the angle of the outer ring raceway, the greater the angle the greater the carrying capacity. This kind of bearing is separable bearings, rolling bearings according to the number of rows into single row, double row and four row tapered roller bearings. Single row tapered roller bearing clearance adjustment required to the user during installation; double row and four row tapered roller bearing clearance from the factory has been given based on user requirements, users do not need to adjust.
Tapered roller bearings have tapered inner and outer ring raceways, tapered roller arranged between the two. The surface of the projection lines of all cone bearing axis in the same point together. This design makes tapered roller bearings particularly suitable for bearing complex (radial and axial) loads. Most of the axial load bearing capacity is determined by the contact angle α; α angle increases, the higher the axial load capacity. Angle size of the computational coefficient e to represent; e greater the contact angle the greater the bearing axial load greater applicability.

d	D	T	C	C0	Pu				* - SKF Explorer BEARING

mm			kN		kN	r/min		kg	-

14,989	34,988	10,998	13,4	13,2	1,29	16000	24000	0,051	A 4059/A 4138
15	42	14,25	22,4	20	2,08	13000	18000	0,095	30302 J2
15,875	41,275	14,288	22	21,2	2,16	14000	20000	0,090	03062/03162/Q
15,875	42,862	14,288	17,6	17,6	1,83	12000	17000	0,10	11590/11520/Q
17	40	13,25	19	18,6	1,83	13000	18000	0,075	30203 J2
17	47	15,25	28,1	25	2,75	12000	16000	0,13	30303 J2
17	47	20,25	34,7	33,5	3,65	11000	16000	0,17	32303 J2/Q
17,462	39,878	13,843	21,2	20,8	2,12	13000	20000	0,081	LM 11749/710/Q
17,462	39,878	13,843	21,2	20,8	2,12	13000	20000	0,081	LM 11749/710/QVC027
19,05	45,237	15,494	27,5	27,5	2,9	12000	18000	0,12	LM 11949/910/Q
19,05	49,225	18,034	39,1	40	4,3	11000	17000	0,17	09067/09195/Q
19,05	49,225	19,845	39,1	40	4,3	11000	17000	0,18	09074/09195/QVQ494
20	42	15	24,2	27	2,7	12000	16000	0,097	32004 X/Q
20	47	15,25	27,5	28	3	11000	15000	0,12	30204 J2/Q
20	52	16,25	34,1	32,5	3,6	11000	14000	0,17	30304 J2/Q
20	52	22,25	44	45,5	5	10000	14000	0,23	32304 J2/Q
21,43	45,237	15,494	27,5	31	3,2	11000	17000	0,12	LM 12748/710
21,43	50,005	17,526	36,9	38	4,15	11000	16000	0,17	M 12649/610/Q
21,986	45,237	15,494	27,5	31	3,2	11000	17000	0,12	LM 12749/710/Q
21,986	45,974	15,494	27,5	31	3,2	11000	17000	0,12	LM 12749/711/Q
22	44	15	25,1	29	2,85	11000	15000	0,10	320/22 X
22,225	52,388	19,368	41,8	44	4,8	10000	15000	0,20	1380/1328/Q
25	47	15	27	32,5	3,25	11000	14000	0,11	32005 X/Q
25	52	16,25	30,8	33,5	3,45	10000	13000	0,15	30205 J2/Q
25	52	19,25	35,8	44	4,65	9500	13000	0,19	32205 BJ2/Q

Why to choose Wafang Dian Bearing?

1.Large and stable manufactuering and supply ability in accordance with ISO9001 Standards.
2.Competitive price.
3.Professional Export Service.
4.OEM & ODM orders are warmly welcomed.Your logo,design,color and various requests can be made .
5.Strict quality check and control.
6.Payment by T/T,Sight L/C,Paypal,Westunion are acceptable.
7.CE,SGS,ECO-friendly materials.Reach/ISO/ABMA/JIS/DIN standards!
8.Samples are available before orders.

Wafang Dian Bearing Marketing Routes:

1.B2B webiste.
2.Google promotion.
3.Shipflag Shops.
4.Trade Fair and Exhibitions in domestic and aboard.

How to order?

1.Send us inquiry.
2.Order Samples after quotation confirmed.
3.Place bulk order after samples confirmed.
4.Prepare for shipment and custom clearance.

Inquiries and orders from new and old client's are always warmly welcomed !

Please contact us freely.

Thank you !

Prod Model:	M12649
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outside Diameter:	0 - 50.005 mm
Bore Size:	0 - 21.43 mm
Seals Type:	Open 2z 2RS
Precision Rating:	P0 P2 P4 P5 P6
Weight:	0.17kg
Height:	17.526mm
MOQ:	1set
Customer Brand:	Acceptable
Service:	OEM ODM
Samples:	Available
Type:	Wheel Hub Bearing
Material:	Chrome Steel
Tolerance:	P4
Certification:	ISO9001
Clearance:	C2
ABS:	Without ABS
