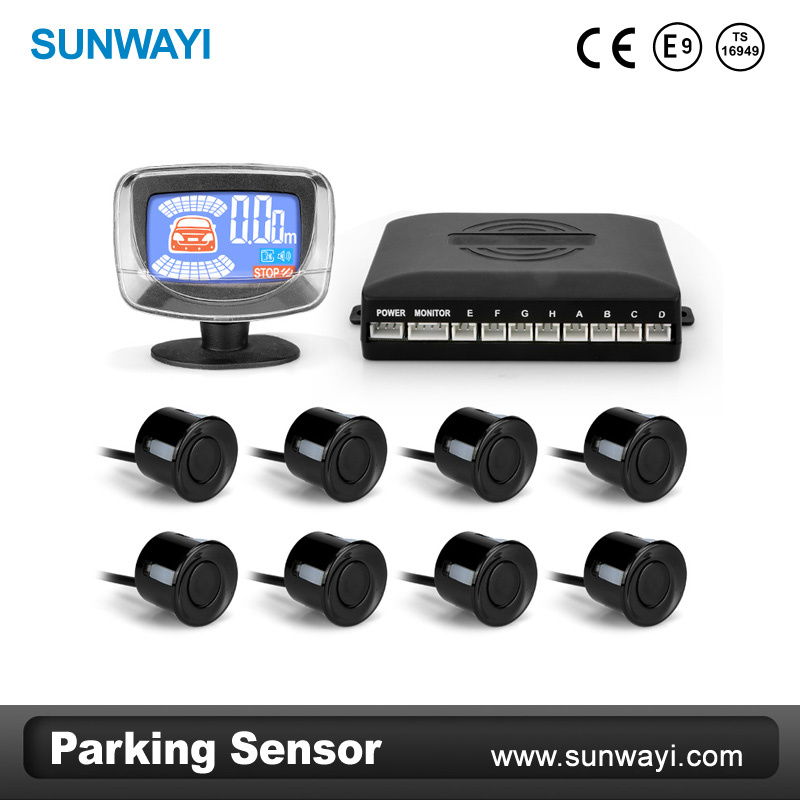

2018 Popular DIY Dynamics Display Parking Sensor with 8 Ultrasonic Sensors

Name: 2018 Popular DIY Dynamics Display Parking Sensor with 8 Ultrasonic Sensors
Brand: ibuyautoparts.com
SKU: 839070935
Availability: InStock
Rating: 4.9 (75 reviews)

Price:	US $ 7.49-8.49/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

2018 popular DIY dynamics display parking sensor
with 8 ultrasonic sensors

Product Description:

1. Colorful LCD Displayer shows obstacle from all derections
2. Work automatically when reversing.
3. Rated working voltage: 10~16V DC. Operating current: 20~200mA
4. Operating temperature:-35~75ºC, Detection Distance: 30~200cm,
Ultrasonic Frequency: 40±1KHz
5. The model and color of sensors are optional,
6. Sensors are waterproof & anti-shock, anti-false

Product Parameter:

Center frequency(KHz)	40KHz±1.5KHz
Transmitting Sound Pressurs Level(dB)	≥100dB (30cm/10Vrms Sine Wave)
Receive Sensitive(dB)	≥-82dB/v/μ bar(0dB=V/Pa)
-6 dB Directivity(deg)	Horizontal 110±15°
-6 dB Directivity(deg)	Vertical 60±10°
Ringing(ms)	≤1.2
Function	Transmitter/Receive
Capacitance(pF)	2000±20% at 1.0KHz
Allowable Input Voltage(Vp-p)	150(40KHz)
Operating Temperature(ºC)	-40~+80ºC
Storage Temperature(ºC)	-40~+85ºC
Metals of case	Plastics
Terminal	Connector
Weight(g)	17.0±1.0

Our Service

1.16 years product experience make us become a professional manufacture.

2. Abundant exporting experience

3. Patented Certificate .

4. Reply your inquiry in 24 hours

5. All the material are test by our IQC, all the PCBA are test by our workers before assembling,all the finish product must be tested 3 times before shipment.

6. Special material to ensure the safety

7.Since every country needs different certificates, we will make the inspection according to your need.

Notice:For more detail information,please feel free to contact us!

Prod Model:	SW-618F-8
Shows Obstacle Distance:	Support
Rated Working Voltage:	10~16V DC
Operating Current:	20~200mA
Operating Temperature:	-40~80ºC
Detection Distance:	30~200cm
Ultrasonic Frequency:	40±1kHz
Warranty:	12 Months
Payment Terms:	Paypal,T/T,Western Union
Parking Sensor Style:	Front and Rear
Waterproof:	Yes
Kind:	Obstacle Detection Radar
Certification:	ISO9001
Working Principle:	Frequency Modulated Continuous Wave
Operating Temperature Range:	-35??C~+70??C
Test Distance:	30-200cm
Warning Type:	LED and Bibi Voice
Technich Type:	Ultrasonic
Brand:	Car General/OEM

Established in 2001, Shenzhen Sunway Industry Co., Ltd. Is a professional manufacturer in car electronics industry, such as TPMS, DVR. Parking Sensor, Car Camera, Headrest, Monitor, DTV Receiver Box.

With Industrial Zone in Hunan Province, headquarter in Shenzhen, and up to 300 employees, Sunway's monthly output is 800, 000 pieces with current export of 80% of all products. We export to over 80 countries and regions, especially USA, EU, Russia, Australia, Mexico, Brazil, etc.

We have a skilled R&D team and be able to process OEM/ODM orders. We provide products with high quality, shortest delivery time, competitive price and more professional service. We test every piece of raw material from our suppliers and every finished product will be tested at least 3 times before shipment, all those make us become a professional supermarket supplier, such as USA Wal-mart.

As an ISO9001 certified company and TS 16949 factory, with CE, E-MARK, RoHS approval, we always try our best to satisfy our clients and strengthen our position in the global market.
