2018 Best Selling Colorful TFT-LCD Mirror Displaying Video Parking Sensor

Name: 2018 Best Selling Colorful TFT-LCD Mirror Displaying Video Parking Sensor
Brand: ibuyautoparts.com
SKU: 838998225
Availability: InStock
Rating: 4.3 (57 reviews)

Price:	US $ 20.99-23.99/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

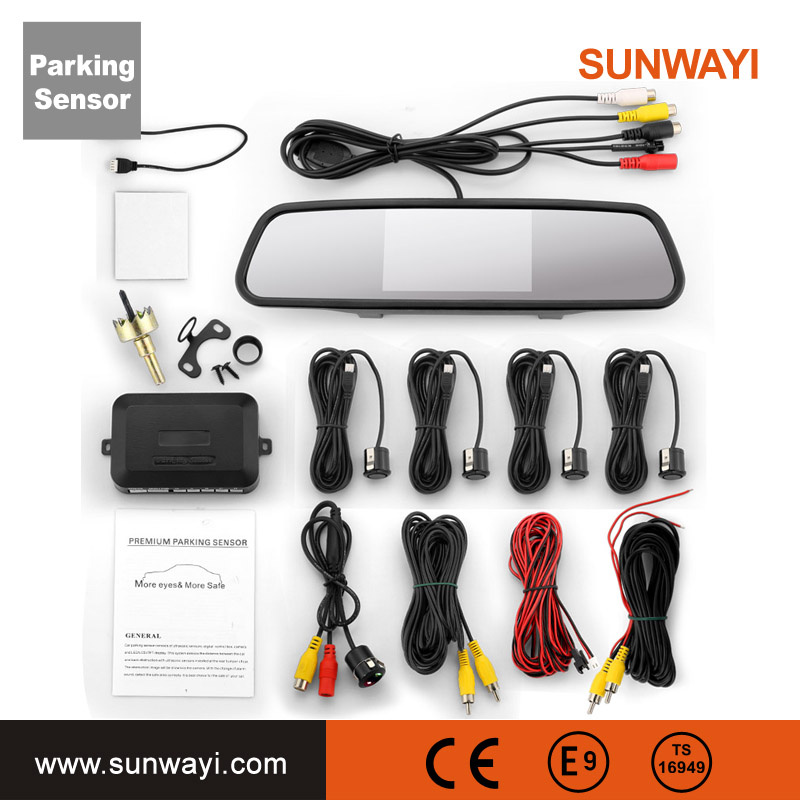

2018 Best Selling Colorful TFT-LCD Mirror Displaying Video Parking Sensor

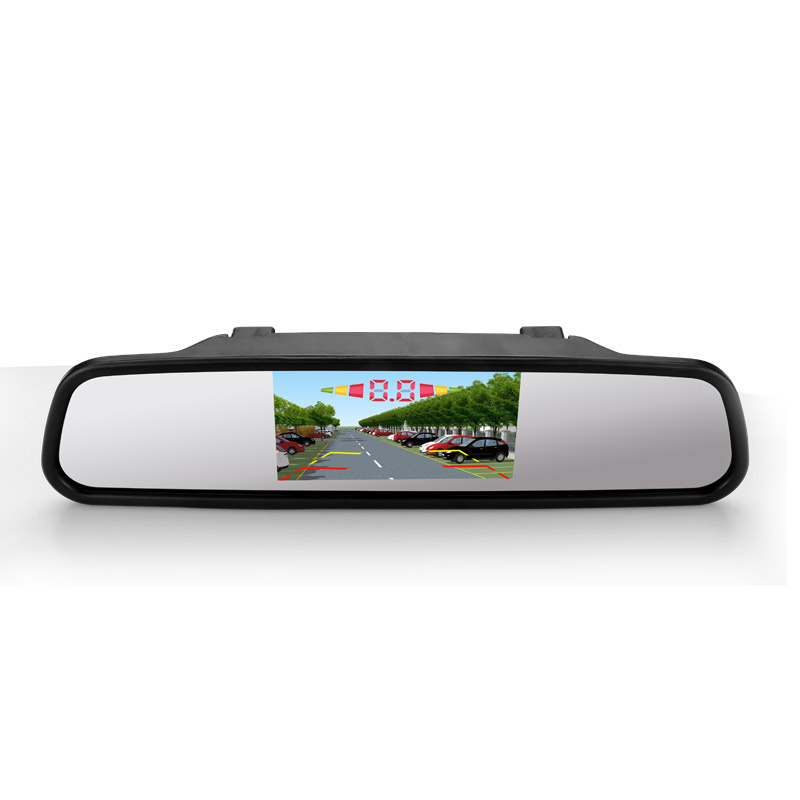

1.Colorful Video Parking Sensor:Obstacle distance and Direction can be shown, Colorful TFT-LCD Mirror Displaying, Visual and audible warning to prevent bumper
2. Work automatically when reversing.
3. Rated working voltage: 10~16V DC.
4. Operating temperature:-20~70ºC, Detection Distance: 30~200cm, Ultrasonic Frequency: 40±1KHz
5. The model and color of sensors are optional, Sensors are waterproof & anti-shock, anti-false
6. Product is Suitable for all kinds of vehicles, Warranty:12 months.

Product Parameter:

*Parameter*	Value
*Center frequency(KHz)*	*40KHz±1.5KHz*
*Transmitting Sound Pressurs Level(dB)*	*≥100dB (30cm/10Vrms Sine Wave)*
*Receive Sensitive(dB)*	*≥-82dB/v/μ bar(0dB=V/Pa)*
*-6 dB Directivity(deg)*	*Horizontal 110±15°*
*-6 dB Directivity(deg)*	*Vertical 60±10°*
*Ringing(ms)*	*≤1.2*
*Function*	*Transmitter/Receive*
*Capacitance(pF)*	*2000±20% at 1.0KHz*
*Allowable Input Voltage(Vp-p)*	*150(40KHz)*
*Operating Temperature(ºC)*	*-20~+70ºC*
*Storage Temperature(ºC)*	*-40~+85ºC*
*Metals of case*	*Plastics*
*Terminal*	*Connector*
*Weight(g)*	*17.0±1.0*

Packaging Details: Gift Box Size:145*95*75MM

Delivery Details: 3-7 days for sample and 15-20 business dyas for general order

Our Services:
1.Professional and 17 years history
2.17-year overseas marketing &17-year OEM/ODM experience
3.100% quality test before shipment
4.Market leading prices
5.Best after-sales servic
6.Abundant exporting experience

Notice: For more detail information,please feel free to contact us!

Prod Model:	SW-8M8C-5
Shows Obstacle Distance:	Support
Rated Working Voltage:	10~16V DC
Operating Current:	20~200mA
Detection Distance:	30~200cm
Warranty:	12 Months
Payment Terms:	Paypal,T/T,Western Union
Parking Sensor Style:	Front and Rear
Waterproof:	Yes

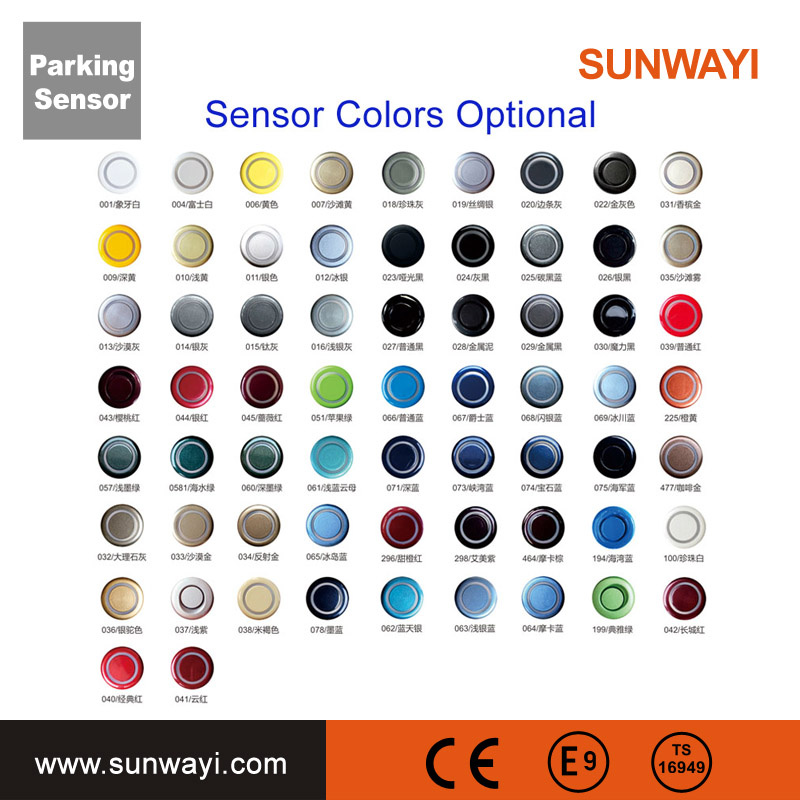

Sensors Color:	Optional
Kind:	Obstacle Detection Radar
Certification:	ISO9001
Working Principle:	Frequency Modulated Continuous Wave
Operating Temperature Range:	-35??C~+70??C
Test Distance:	30-200cm
Warning Type:	LED and Bibi Voice
Technich Type:	Ultrasonic
Brand:	Car General/OEM

Established in 2001, Shenzhen Sunway Industry Co., Ltd. Is a professional manufacturer in car electronics industry, such as TPMS, DVR. Parking Sensor, Car Camera, Headrest, Monitor, DTV Receiver Box.

With Industrial Zone in Hunan Province, headquarter in Shenzhen, and up to 300 employees, Sunway's monthly output is 800, 000 pieces with current export of 80% of all products. We export to over 80 countries and regions, especially USA, EU, Russia, Australia, Mexico, Brazil, etc.

We have a skilled R&D team and be able to process OEM/ODM orders. We provide products with high quality, shortest delivery time, competitive price and more professional service. We test every piece of raw material from our suppliers and every finished product will be tested at least 3 times before shipment, all those make us become a professional supermarket supplier, such as USA Wal-mart.

As an ISO9001 certified company and TS 16949 factory, with CE, E-MARK, RoHS approval, we always try our best to satisfy our clients and strengthen our position in the global market.
