2017 Alignment Scissor Car Lift (ORS-35A)
| Price: |
US $ 3550-3800/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |

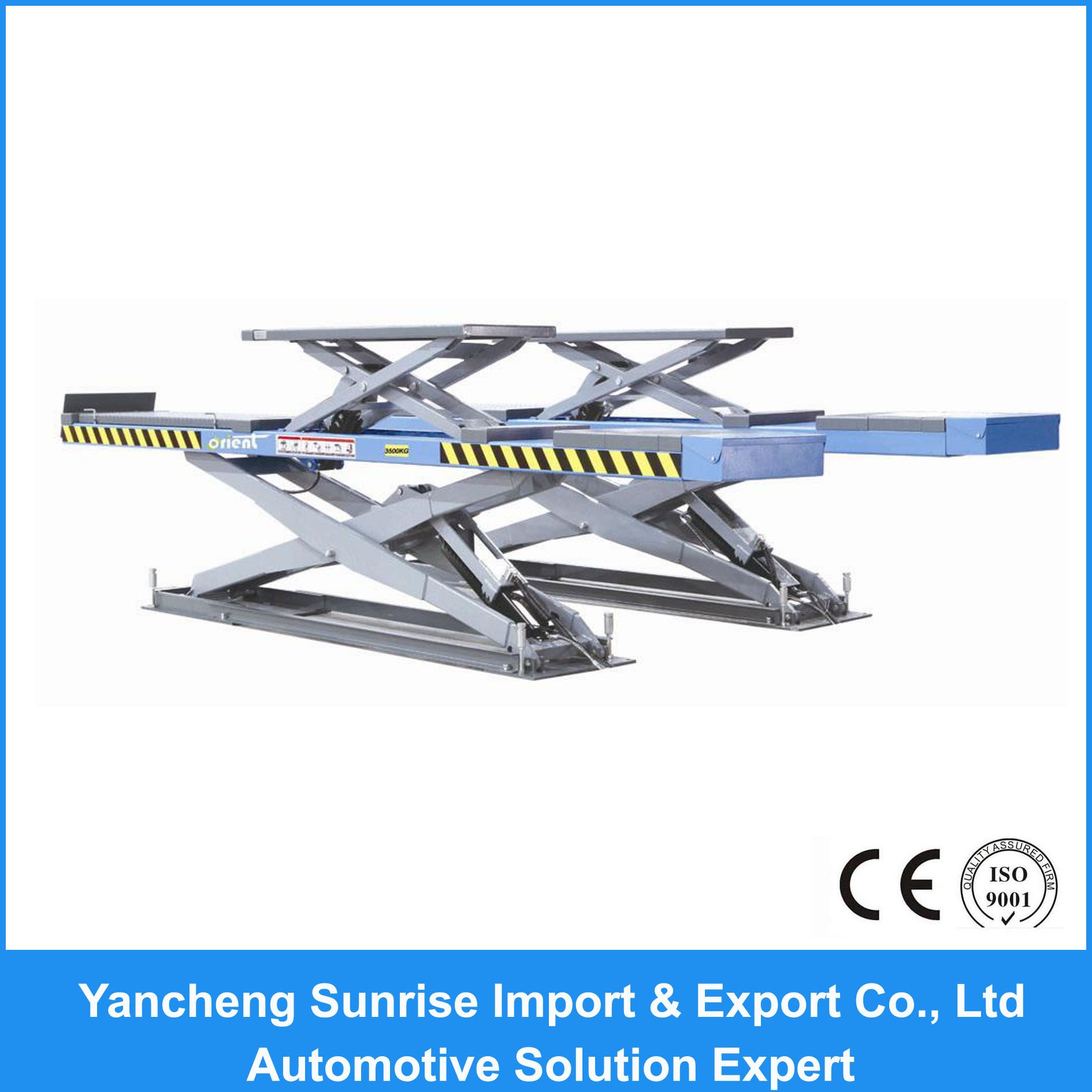

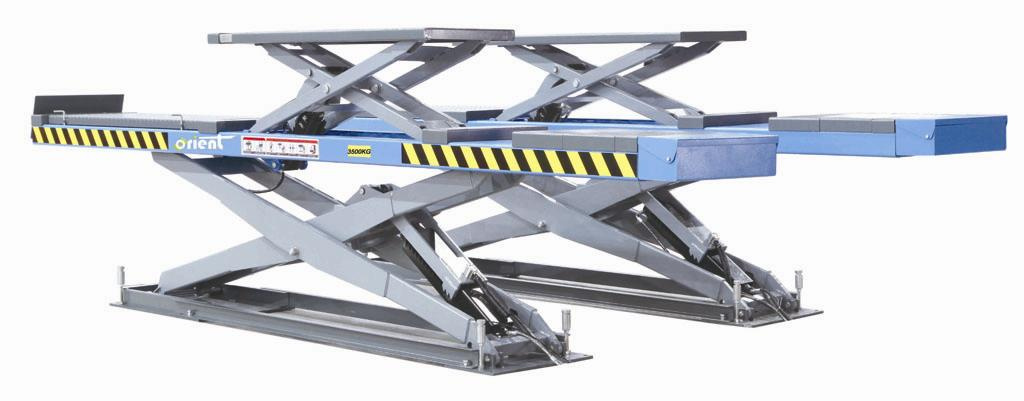

Scissor car lift with alignment function
MODEL: ORS-35A
FEATURES:
*Suitable used in the car 4S shop for alignment, repairing and maintain service.
*In-ground installation.
*3000kg/4000kg/5000kg lifting capacity.

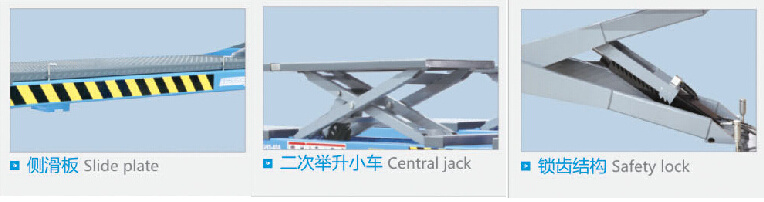

*Function with the second lifting jack with lifting height 450mm, and the lifting platform span can be extended for easily operating, and make the machine suit for logn vehicle maintenance service longer.
*Long rear turn-talbe,positioning of angle plate can be adjusted.
*Aluminum shell motor prevents overheated.
*Operating control system with 24V safety voltage.
*24V height limit switch provided.
*The automatic mechanical lock engaged during process to ensure the vehicles lifting safety.
*Runway synchronizer system provided for preventing vehicles from tilt possibly.
The hydraulic system is equipped with over-load prevention device.
Assistant manual releasing facility provided for vehicle lowering in case of electrical power losing (option function).
Routine testing with 115% dynamic and 150% static loading.
CE approved.Accessories:
Overall Dimensions:
| Liftting Capacity | 3500kg |
| Lifting Height | 1800mm |
| Jack Capacity | 2500kg |
| Central Jack Raised Height | 450mm |
| Min. Height | 320mm |
| Runway Length | 4200mm |
| Runway Width | 600mm |
| Lifting Time | 60s |
| Rated Oil Pressure | 20Mpa |
| Air Pressure | 0.6-0.8Mpa |
| Motor Power | 2.2kw |
| Power Supply | 220V/240V/380V/415V |
| Weight | 1820kg/2050kg/2050kg |
| Packing Size | 4400/5000*600*800+520*430*1100mm |
| Prod Model: |
ORS-35A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Lifting Height: |
1800mm |
| Min Height: |
320mm |
| Certification: |
ISO |
| Design: |
Scissor |
| Lifting Capacity: |
3500kgs |
| Brand: |
Orient |
