2016 New Product Automotive Leak Detector Smoke A1 PRO Heavy Duty New Generation of All-100 Work for 12V/24V Trucks

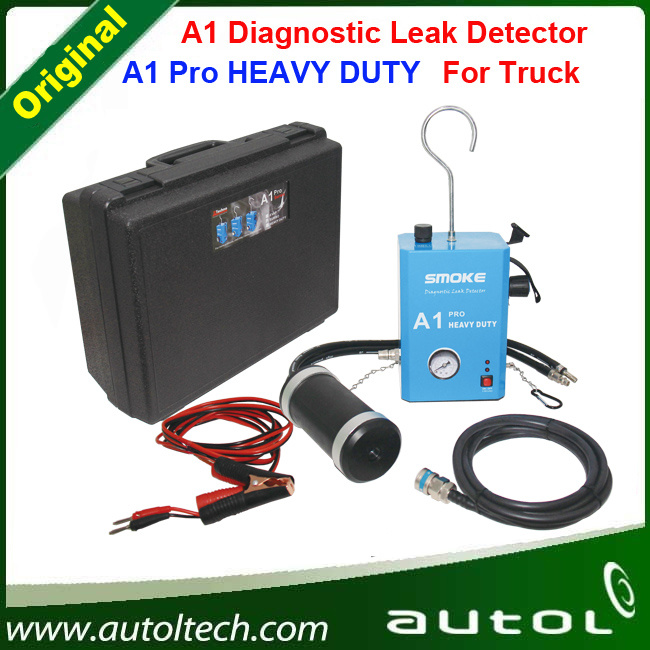

Automotive Diagnostic Leak Detector A1 Pro HEAVY DUTY is designed for quick detecting the leakage of pipe

systems on Truck, such as air intake system, exhaust system, manifold, coolant tank, sealing, and fuel pipe, etc,

but not suitable for components sensitive to smoke, such as EVAP, pneumatic central lock system, lamp housing

and cabin

Feature:
World's smallest tool for commercial Vehicle leak detection
Work with external shop air to provide 0-29psi adjustable test pressure and up to 30L/min flow rate
DC 12/24V vehicle battery driven
Support UV detection method for tiny leaks
Quick heavy duty bladder to fit every intake/exhaust
Instant somke generation
Smart 5 minutes working cycle controller with single control button

Optional Accessories:
UV Detection Kit



Specifications:

	EVAP	TURBO	HEAVY DUTY
Pressure	0.5PSI	10-12PSI	0-29PSI
Smoke Flow	10L/Min	10L/Min	30L/Min
Power Supply	DC 12V	DC12V	DC12/24V
Air Source	Inbuilt Air Compressor		Shop Air
Chemical Load(Max)	15ML
Unit Dim	L10*W13*H21.5CM(without hook)
Delivery Weight	3.80	3.90	4.10
Delivery Dim	L27*W34.5*H14CM



8 Reasons for a Diagnostic Leak Detector
1,  Your scan tools ONLY can do half of the work
Your scan tools help you acquire the knowledge about which sensor had got the sampled data out of range. But your scan tools won't tell you the cause/reason of the fault, and where to find it. A Diagnostic Leak Detector will tell you WHERE the problem is, which caused the sensors to get wrong data.

2,  Over 60% of the DTCs are pressure related
Sensors sample voltage, temperature and pressure, of all the DTCs that possibility generated, over 60% are pressure related, regardless it's an air pressure DTC, or an oil pressure DTC. With a Diagnostic Leak Detector, these DTCs are much easier to erase.

3,  Increase income per service
By finding more hidden problems in a vehicle and proving it to the vehicle owner necessity of extra service, a Diagnostic Leak Detector will help increase your income per service.

4,  Helps reduce labor cost
A Diagnostic Leak Detector helps technicians to locate problems currently in short time, avoid possibility of wrong diagnosis of the vehicle.

5,  Enhance capability of more service calls
By reducing your service time cost, a Diagnostic Leak Detector makes your workshop capable of more service calls.

6,  Ease the pain of finding leaks
The vehicle driven in the workshop with engine running hot, which put technicians in a bad working condition, with a Diagnostic Leak Detector, technician don't have to touch the hot surface, reduce possibility of getting hurt in work.

7,  More professional in facing customers
Customers may feel sorry for you if you jump onto and off the car to find problems. A Diagnostic Leak Detector will make technician's work more professional with convincing result.

8,  Small investment, big turnout
A Diagnostic Leak Detector is affordable for all level of workshops, and the equipment will pay for itself back by a few jobs.


Package Including:
1set × Automotive Diagnostic Leak Detector A1 Pro Heavy Duty
