| Prod Model: |
K04-2275ECD5.82KCAXH, K04-2078EYE4.82KCAXM |
| Part Number: |
53049880026 |
| OE Numbe: |
078145704m, 078145702m, 078145704mx |
| Shipping Way: |
TNT, DHL, FedEx, UPS, by Sea, by Air |
| Size: |
Standard Size |
| Balancing: |
High Than 150000 Rpm by Schenck Balancing Machine |
| Kw: |
280/380 |
| Delivery Time: |
7-15 Days |
| Warrantly: |
12 Months |
| Displacement: |
2.67L, 2671 CCM, V6 Cylinders |
| Description: |
Audi RS4 V6 Bi-Turbo Right Side |
| Type: |
ETS Exhaust-Gas-Turbo-Super-Charger |
| Body Material: |
Iron |
| Certification: |
CE |
Product Description

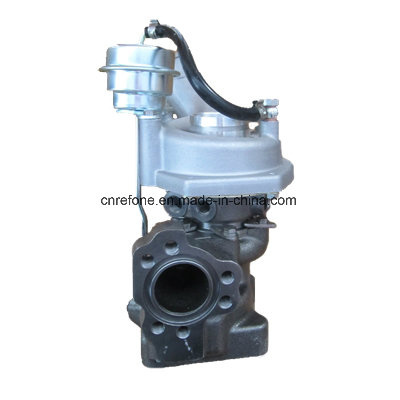

2000-05 Audi RS4 V6 Bi-turbo k04 Turbocharger 53049880026
Products Descreption:
| Part Number | 53049880026 |
| Previous Version | 5304-988-0026, 5304 988 0026 |
| OE number | 078145704M, 078145702M, 078145704M, 078145704MX, 078145704MV |
| Year | May-00 |
| Description | Audi RS4 V6 Bi-turbo Right Side |
| Manufacturer Part Number | 53049700026, 5304-970-0026 |
| CHRA | 53047100510 (5304-710-0510) (1302004910, 1000030114) $300.00 NEW IN STOCK |
| Turbo Model | K04-2275ECD5.82KCAXH, K04-2078EYE4.82KCAXM |
| Engine | ASJ/AZR |
| Displacement | 2.67L, 2671 ccm , V6 Cylinders |
| KW | 280/380 |
| RPM Max | 6100 |
| Fuel | Gas |
| Angle a (compressor housing) | 0° |
| Angle ß (turbine housing) | 214.9° |
| Bearing housing | 53041500015/53041500009/53041500006/53041500017 (W/Cooled) (Single Oil Brg, replaces 53041506/9)(1302003460, 1900011078) $68.40 NEW IN STOCK |
| Turbine Wheel | 53041205015/53041205010 (Ind. 50. mm, Exd. 42. mm, 12 Blades)(1302004437, 1100030064) $97.20 NEW IN STOCK |
| Comp. Wheel | 53041232021/53271232309/53271232201 (Ind. 39.8 mm, Exd. 51. mm, Trm 61, 4+4 Blades, Flat Back)(1302004421, 1200016246) $69.00 |
| Back plate | 53041515712/53041515712A (1302003304, 1300016034B) $19.28 NEW IN STOCK |
| Heat Shield | 53041652000 (1302003341) $12.88 NEW IN STOCK |
| Repair Kit | 53037110000 (1302000752, 5000040103) $69.00 NEW IN STOCK |
| Turbine Housing | 53041009030 |
| Compressor Cover | 53041015038 |
| Actuator | 58251104083 $145.00 NEW IN STOCK |
| Turbine Housing AR | 4 |
| Settings Waste gate (pressure) | 0.5 Bar |
| Settings Waste gate (lifting rod) | 2.0 mm |
| Gasket (turbine inlet) | 210646 (INOX Steel) $13.34 |
| Gasket (turbine outlet) | 210676 (INOX Steel) $13.34 |
| Gasket (oil outlet) | 210317 (Paper) $2.89 |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Application:
2000-05 Audi RS4 V6 Bi-turbo with AZR/ASJ Engine
2000-05 Audi A4 V6 Bi-turbo with AZR/ASJ Engine
Package:
1. Mold foam
2. Plastic bag
3. Strong Canton Pallet
Please don't worry about package, we promise that our turbocharger reach you intactly.
Shipping:
1)TNT,DHL,FEDEX,UPS,EMS
2)By sea ,by air
3)Take your requirements into consideration
