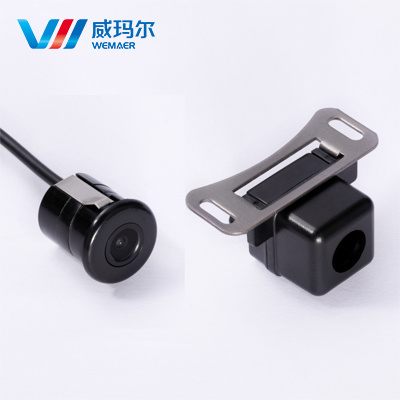

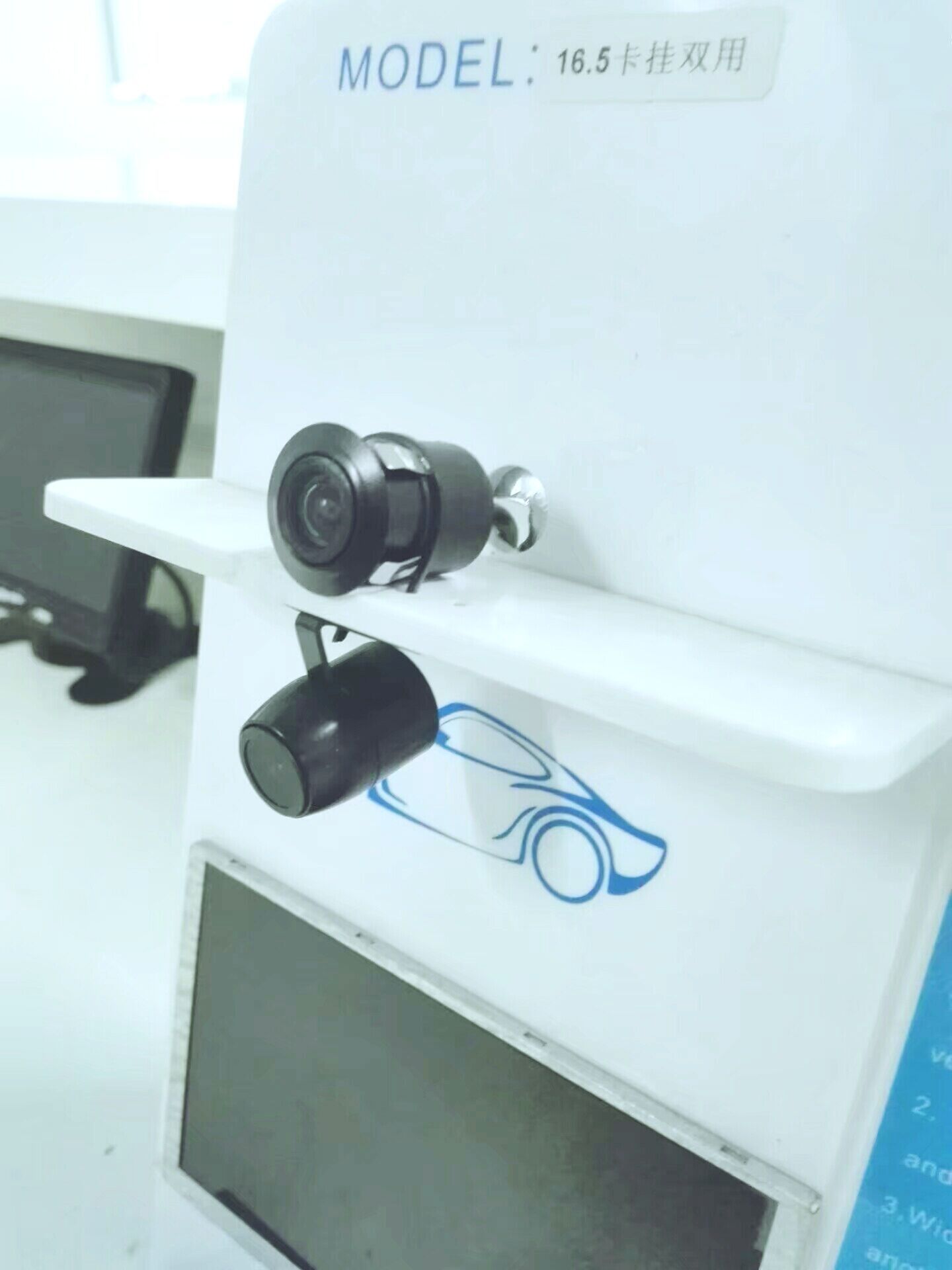

2 in 1 Two in One Night Vision Waterproof Backup Rearview Car Auto Camera

1.Product Features:
 1)Original fitting by replacing the shelf of license light or Universal installation
 2)Smart size for hidden installation.
 3)1/3"Cmos
 4) Lens: 170 degrees
 5)Waterproof and dust-proof (IP68) CCD camera
 6) With car reversing reference line(optional)CCD camera.
 7)License light available on partial models.
 8)Night vision available and high definition CCD camera.
 9)Day /Night sensor for automatic adjustment, minimum illumination auto fill light.

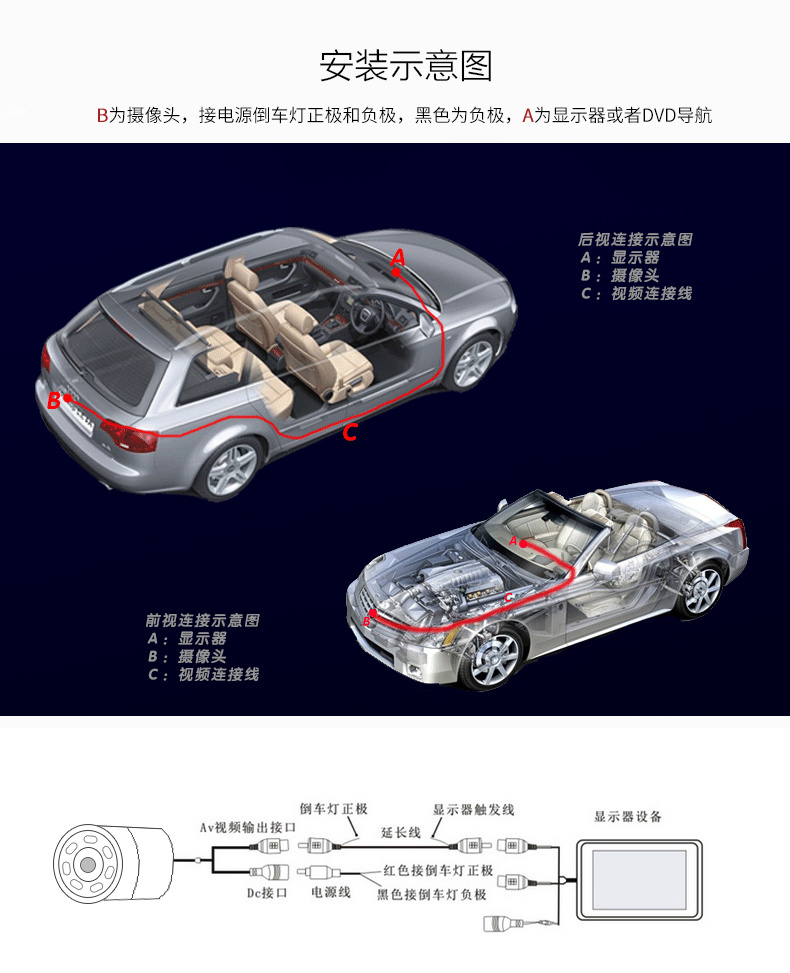

2.Installation Guides:
 1)Get out the license light;
 2) Get the rear view lens lines across the license light original position;
 3)Fasten the camera with the buckle which place in the two sides of the camera;
 4)Connect the lens built-in license light power lines to the original license light power lines;
 5)Connect the reverse lens switching lines;
 6)Connect the camera's signal line to the signal extension line;
 7)Connect the car's reverse light line to camera's video cable;
 8)Check if all lines are correct connected and arranged;
 9)Debug the working effects of the camera and the license light;
 10)Cover the car trunk. Finished.

3.Accessories:
1. General wire and power wire
2. User Manual

Technical Parameters:

Image Sensor 1/3" CMOS

NSTC/TV System NTSC/PAL

Sync System internal

Minimum illumination < 1 lux

White balance Auto

IR LEDs No

Video color Colorful

Waterproof class IP67

Effective pixels 580(H)*540(V)

Resolution 420 TV lines

Sensing area 3.5964*2.7084mm

Video output 1.0Vp-p, 75Ω

Electronic shutter 1/60S-1/5000S

S/N ratio Better than 48dB

Lens angle 170 degree

Operation temperature -20° ~+70°

Storage temperature -30° ~+80°

Warranty 12 months
