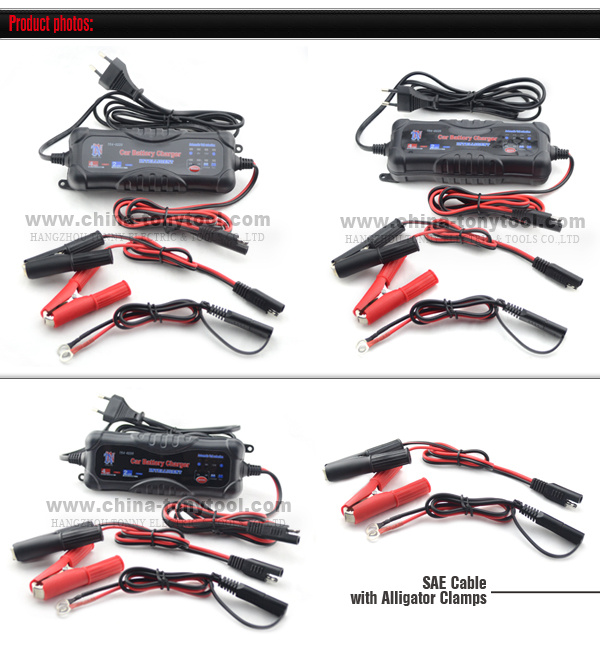

2/4 AMP Automatic Handheld Battery Charger
| Price: |
US $ 12/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Paypal |
2/4A 6V/12V auto battery charger Input voltage : 105-125VAC or 200-260V AC 50/60HZ
Output voltage :6v &12v
Efficiency : > 75%
Charging voltage : 14.4V ±0.25V (for 12v battery )
7.2v ±0.20V (for 6v battery )
Charging current :4A ±10% or 2A ±0.3A 1A ±0.3A
Back drain current :<5MA
Ambient type :-10°C to + 40°c
Battery type : 6V & 12V lead -acid batteries ( WET ,MF and Splashproof )
Noise level :< 50db
Charging voltage select
Charging current selection
No risk of over charging
Electronically safe against user error with LED indicator
Spark proof
Over heat protection
Full protected against short circuit and wrong connections
With LED indicator
12V battery recovery
For 12V batteries voltage lower than 8V, you can use the charger to recover the battery.
Recovery Operation Steps: - Plug in the AC power without the connection with the battery;
- Press the MODE button for 3~5 seconds until the 12V LED indicator comes on;
- Now connect the output clamps/terminal rings with the battery correctly;
- The charger begins charging with 1.5A low current to recover the battery, which terminates when the voltage reaches to 10.5V ±
- 0.25V, and then it switches over to regular charging mode.
OPERATING INSTRUCTIONS - Connecting the terminal rings/clamps directly to the corresponding connectors on the battery posts.
Note:
Make sure correct polarity connection before plugging in the AC power. - Position the RED terminal on the POSITIVE post connector
- Position the BLACK terminal on the NEGATIVE post connector
2. Connect the AC power cord with the AC power outlet.- The Power LED indicator turns on after the connection.
- The charger will automatically select the right voltage according to the battery voltage type and the corresponding LED indicator
- will turn on.
| 6V batteries | |
| 12V batteries | |
- The Error LED indicator will turn on for incorrect polarity/Faulty.
| Reverse polarity hook up | ON |
| Bad batteries cannot be recharged | Flashing for 6V batteries |
| Flashing for 12V batteries |
- Rated maximum 2A charging current for 6V batteries; the 2A current LED indicator will turn on.
- Rated maximum 4A charging current for 12V batteries in speed charge mode, and also can choose 2A slow charge rate by press the
- Mode Button. Corresponding LED indicator will turn on.
- Charging status LED indicators to display the battery charging level. The charge LED on when charging mode, while the FULL LED on
- when the battery is fully charged and go to the maintenance mode.
3. Disconnect the AC power cord from the AC power outlet when fully charged. Then disconnect the connection with the battery.
Our Services
1. Reply your enquiry in 24 working hours
2. Experienced staffs answer all your questions in fluent English
3.Customized design is available .
4.Exclusive and unique solution can be provided to our customer by our well-trained and professional and staffs
5. Special discount and protection of sales area provided to our distributor
Company Information
Since the foundation in 1995, our company has been dealing in the line of auto electric appliances and auto accessories for more than 10
years with customers worldwide and established close friendship and cooperation with them.

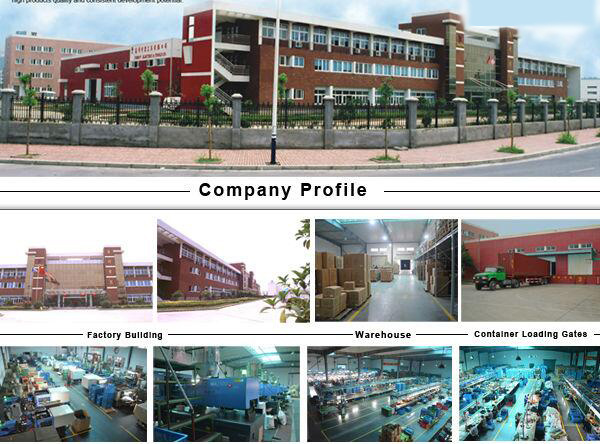

Our factory, located in Hangzhou, close to Shanghai, covers an area of more than 200,000 square feet while the building area is about
140,000 square feet. We have 12 assembly lines in the factory and also an injection molding plant with 20 injection machines.
Our products are mainly in the line of auto accessories, such as Car Fan, Car Vacuum, Car Jump Start, Car Air pump, Car Air Compressor,
Car worklight and etc. For the good quality and pleasing design of our products, we have a ready market in both America and Europe, and
have connections with some of the largest retail stores and distributors in the world. With the rapid development of our company these
years, we sincerely want to cooperate with customers from all over the world on the basis of mutual benefits.
Why Choose Tonny
1.20 years experience in producing auto battery chargers.
2.Our products listed by CE,RoHS,CETL and other authority certifications
3.Experienced staff and worker assure superior product quality
4.Advanced quality management system
5.Strong technology research and development ability
Our working parter
1. We are supplier of Walmart and WALGERRNS ,LIDL ,CVS ,HOMEDEPOT ,ACADEMY ,MEIJER ,VDI ,LOME"S,
TARGET ,O2COOL ,SCOTTS .........
2. Expertise. We are professional manufacturer with rich experience in manufacturing Car vehichle chargers smart phone chargers
and USB data cables.
3. Quality Assurance. Professional product line. well-trained workers,strict QC standard and 10years focus on OEM ITEMS
4. Good Service. Customer is the God,aim to provide the best service for you ,with a competitive and GOOD quality,and on thime
delivery .12months warranty for all products
| Prod Model: |
TE4-0225 |
| Back Drain Current: |
<5mA |
| Noise Level: |
<50 dB |
| Charging Current: |
4A |
| Input: |
105-125V AC or 200-240V AC |
| Output: |
6V or 12V |
| Efficiency: |
>75% |
| Ambient Temp: |
-10 and 40 |
| Housing Protection: |
IP65 |
| Charge: |
Trickle Charge and Maintaince Charge |
| Indicators: |
LED |
| Interface: |
SAE |
| Color: |
OEM |
| Input Voltage: |
DC6V/12V |
