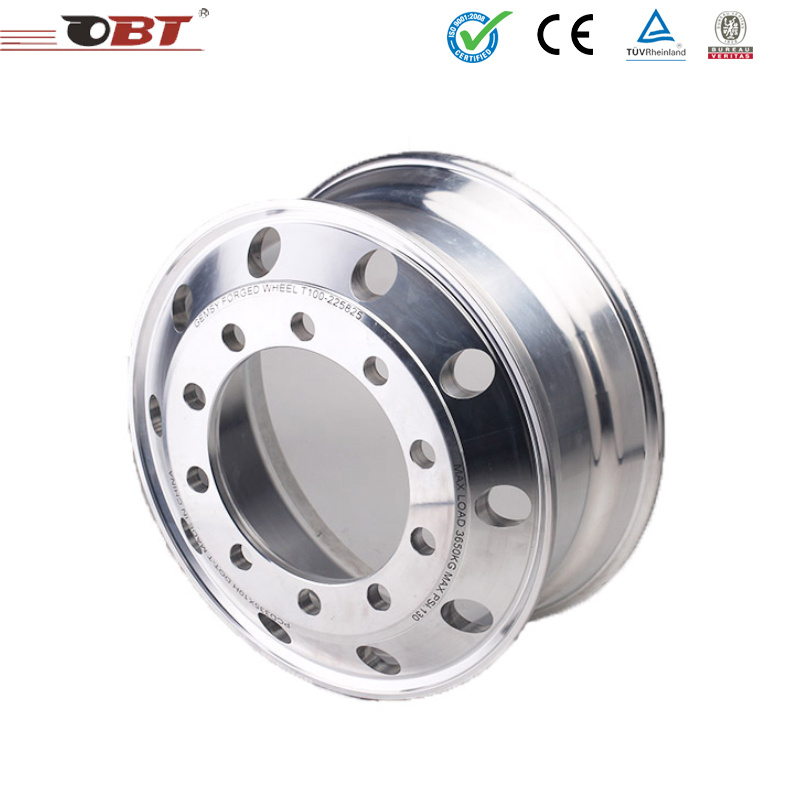

19.5 Semi Truck Wheel Rim
| Price: |
US $ 50-100/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
19.5 Semi Truck Wheel Rim The advantages:1, its own light. Weight forged aluminum wheels, only the equivalent of half weight of the hoops, example to 22.5X8.25; forged aluminum wheels for 24 kg, hoops for at least 45 kg
2, the fuel savings. Install the forged aluminum wheels, lower vehicle weight, and the torque of the engine torque to reduce, reducing the rotational inertia of the wheel, so that the vehicle acceleration performance, and a corresponding reduction in the braking energy demand, thereby reducing fuel consumption , one hundred kilometers to save the test rate of 2 liters of oil per one hundred kilometers savings hundred kilometers (replace forged aluminum wheels and use the air conditioning than not-for-forged alloy wheels are not air conditioning fuel consumption test, the former is lower than the latter 2.5 liters fuel consumption).
3, the tire wear is reduced by 26%. Due to the nature of the forged aluminum wheels, its equilibrium value of 0 is not easy to deformation, coupled with a unique air flow forged aluminum wheels, bulk temperature (normal driving temperature lower than the hoops 20-30 degrees) suspension system to protect better, so tire wear is greatly reduced, so that each tire to run more than 5-8 million km).
4, the brake maintenance costs reduced. Features forged aluminum wheels, bulk temperature, normal driving temperature is low, so the brake system does not heat the material and accessories have excellent protective effect, thus greatly reducing the maintenance costs of the brake system.
5, the bearing capacity. The forged aluminum wheels carrying capacity is five times that of ordinary hoops. The forged aluminum wheels to withstand 71,200 kg after deformation 5 cm 5 cm hoops only to withstand 13,600 kg deformation, in other words, the strength of forged aluminum wheels beyond the hoop five times.
6, to improve driving comfort. Due to the characteristics of forged aluminum wheels, after installation, the direction of driving feel lighter, high-speed driving is particularly smooth, thereby enhancing the driving pleasure.
7 security. For high-speed car, the friction brake heat generated due to the tires with flat tire, brake performance degradation are common occurrences. Aluminum thermal conductivity is three times that of steel, iron, etc., plus aluminum alloy wheels due to their structural characteristics, easily the heat generated by the tires, chassis row scattered in the air. Even in the case of long distance high speed or downhill continuous brake, also make the car to maintain the proper temperature to reduce the puncture rate.
8, the impact test. Japanese JWL test simulates a truck over 50 km and crashed into a curb, the equivalent of 910 kg weight falling from a height and crashed into a tire and wheel. According to the U.S. aluminum forging technology center for the Japanese standard test results: forged aluminum wheels only minor damage, but the hoops the extent of damage is very serious. Cast alloy wheels broken into two parts.
9, and beautiful shape. Large, forged aluminum wheels design freedom can be combined with models, so that the car, round one, with perfect.Specification: | Size | Inset
(mm) | Outset
(mm) | P.C.D.(mm) | Stud
hole | PCD
(mm) | Centre
Bore(mm) | Loading/container
(carton packing) |
| 20'FCL | 40'FCL | 40HQ |
| 19.5*7.5 | 134 | 156 | 275 | 8 | 24.5 | 221 | 326 | 667 | 751 |
| 275 | 8 | 26.75 | 221 |
| 285.75 | 10 | 26 | 220 |
| 19.5*6.75 | 125 | 147 | 285 | 8 | 32.5R22 | 221 | 336 | 688 | 772 |
| 275 | 8 | 26 | 221 |

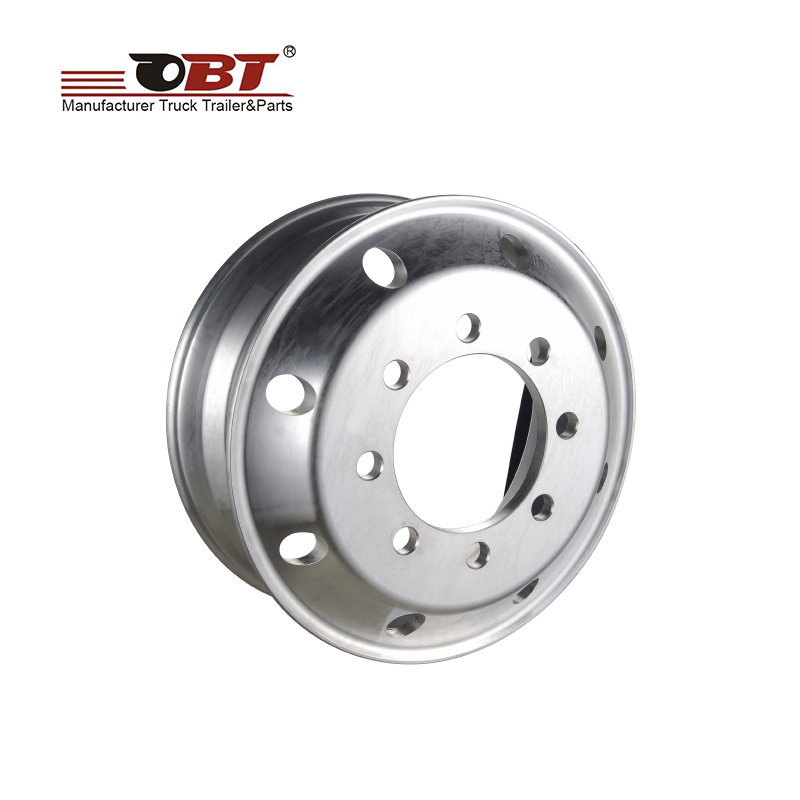

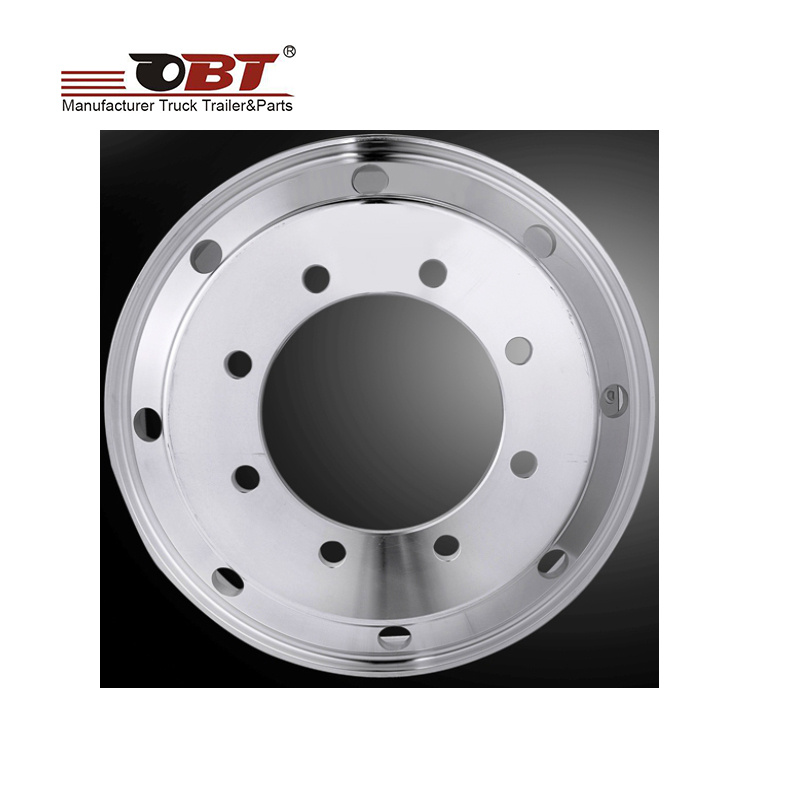

Products picture:

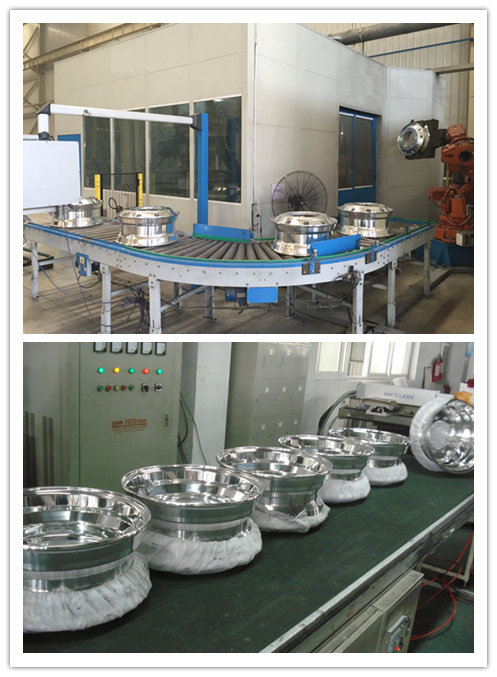

Factory pic:

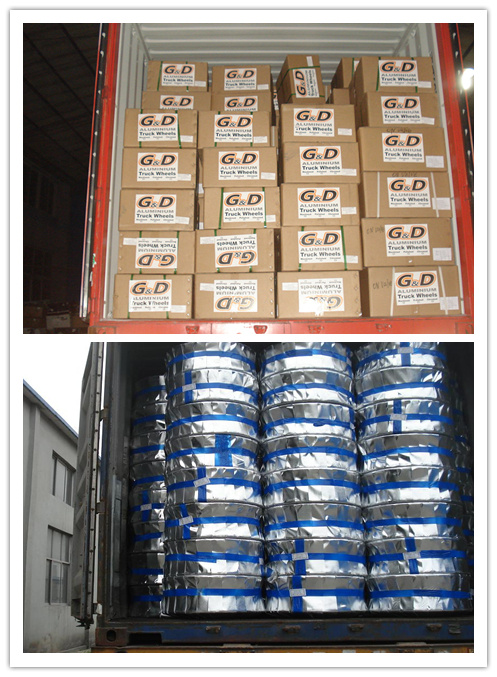

Packing pic:
Please Contact:
| Prod Model: |
19.5 wheel rim |
| Product Name: |
19.5 Semi Truck Wheel Rim |
| Inset(mm): |
125/134 |
| Outset(mm): |
147/156 |
| P.C.D.(mm): |
285.75/275 |
| Holes: |
8/10 |
| PCD: |
24.5/26.75/26/32.5r22 |
| Cbd: |
221/220 |
| OEM: |
Optional |
| Material: |
Aluminum |
| Type: |
Rim |
| Drive Wheel: |
4WD |
| Wheel Hub Diameter: |
16-20" |
| Finishing: |
Chrome |
| Wheel Accessories: |
Wheel Spoke |
| Certification: |
DOT |
| Spoke Type: |
Optional |
| Wheel Hub Brand: |
Obt |
OBT, founded in 1997 located in Qingdao, China, is an international, cross-industry, diversified group company. In 2007, we merged the company CSRS for axle and suspension, built our trailer company B&C in Australia in 2010, we build our tyre branch ZERMATT in 2013, special for tires, in order to expand our business areas, we built our branch company SCG in Singapore in 2014, and also in 2014, we merged the Ocean Navy Logistics to perfect our transportation system. After 18 years of pioneering spirit, it has developed into an important vehicle and auto parts production base and export base.
OBT Group now has three independent Division---- Production Sector, Trade Sector and Singapore sub-sectors, involved in transportation, trailer and agriculture machine manufacturing, parts production and international trade fields.
With most-to-up technology and top designers from Singapore and Germany we successfully design and manufacture for Shell, BP, ExonMobil, Singapore Fire, Canada Fire, and Turkey moving company, etc.
We accept any kind of technique cooperation including to offer full exclusive custom design manufacture and service
With the combination of modern equipment and advanced processing technology and perfect quality control system, we always adhere to the principle of "Top quality, reasonable price and good after service"
