18.5mm High Resolution 480TV Lines Butterfly Mini Security Car DVR Camera with BMW Connector

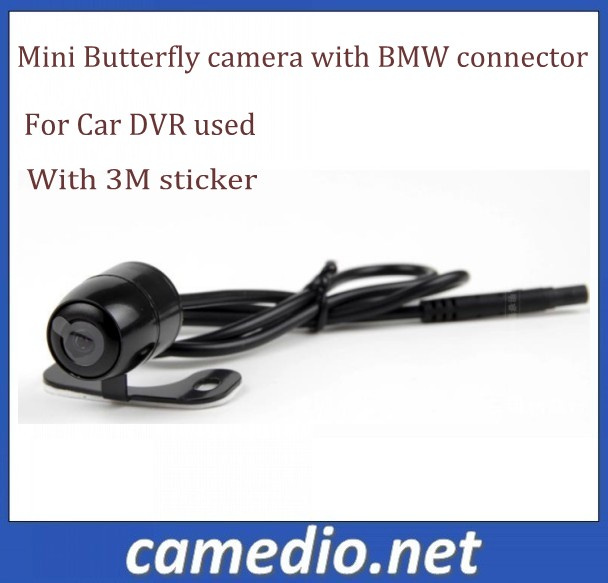

Name: 18.5mm High Resolution 480TV Lines Butterfly Mini Security Car DVR Camera with BMW Connector
Brand: ibuyautoparts.com
SKU: 690185792
Availability: InStock
Rating: 4.4 (82 reviews)

Price:	US $ 4.5-5.5/Piece
Trade Terms:	FOB,EXW
Min Order:	20/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Description :

1)small Butterfly Night Vision 480TV lines Car Rearview Camera

2) with image sensor PC7070

3) PAL/NTSC TV Systems optional.

4)Waterproof design, weather-resist.

5) Image sensor optional: PC7070 480 TV lines, MT9V136 analog CCD 480 TVlines

6)Front view&rear view image optional

7)Parking distance lines on&off switch optional

Specification:

Image sensor:Color CMOS
TV system:NTSC/PAL
Effective pixels:658 x 462 Pixels/628 x 586 Pixels
Sensing area:5.961 x 4.276mm
Horizontal resolution:420TVL
Shutter speed:1/60-20us
Minimum illumination:0.2Lux/ F1.8=1.2 (0 Lux with Led)
Lens Angle:170°
White balance:Auto
Color:Black
Waterproof:IP67-IP68
Video output:1.0Vp-p, 75ohm
Current Consumption:No More 300mA
Power supply:DC 12V
Operating Temperature:-20°C~ 60°C, RH95% Max.
Storage temperature:-30°C ~ 60°C, RH95% Max.
Video cable length:6m
Power supply cable length:1.5m

Main features:

1, Universal Rearview Backup Camera

2, 170 Degree wide viewing angle

3, Die cast Metal housing

4, Small and compact design

5, Completely waterproof housing

6, Metal anti-theft bracket

7, Simple installation for installers

8, Low light sensitivity fo 0.1 Lux

9, Reverse image

10,Color: Black

11,Requires a 12V DC power supply

Technical Specifications:

1,TV Systems: NTSC/PAL

2, Image Sensors: Color CMOS

3,Total Pixels: 688*488

4, Resolution: 420 TV Lines

5, Lens: 2.8mm

6,Video Output: 1.0vp-p composite video at 75ohm

7, Power Supply: DC 9V-15V

8,Operating Temperature (Deg. C) -30o C~ +70o C

9,Water Proof, Anti-Shock

Package:

1 x Color car rear view camera
1 x 1.5 Power supply cable
1 x 6m Video cable
1 x English user manual
2 x screws

Prod Model:	CM-306R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Image Sensor Available:	PC1030/PC7070/Mt9V136/PC1089
Camera Degree:	170 Degree
Waterproof:	Yes
TV System:	PAL/NTSC
Minimum Illumination:	0.1lux
Pixels:	628X582
Resolution:	420tvl/480 Tvl/520tvl Optional
Interface:	RCA
Chip:	CMOS
Waterproof Grade:	IP68
Definition:	480TV Lines
