| Prod Model: |
TP150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
120ton Solid Tire Press Machine Tooling for Sale |
| Capacity: |
120ton |
| Factory: |
Zhejiang |
| Color: |
Blue, Silver |
| Size: |
1850*1900*730 mm |
| Type: |
Piston |
Product Description

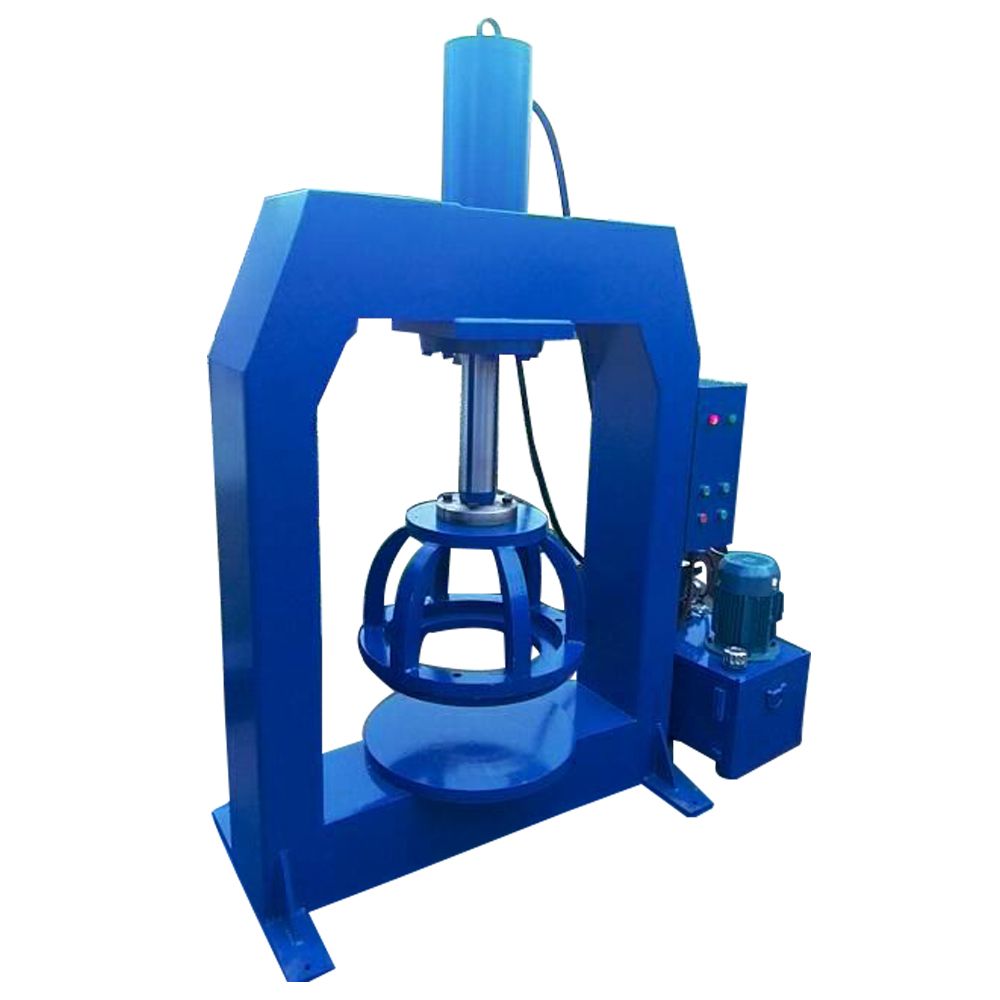

150ton Solid Tire Press Machine for Sale (TP120)
Since the foundation of HYTGER, we have been strived to offer you high-class material handling solution and high-class service. HYTGER Group has been specialized in manufacturing and selling forklift trucks, stackers, pallet trucks, loader trucks, container cranes, tire presses, dock ramps, aerial work platforms, other hydraulic equipments and their parts. After many years successful development, HYTGER Group has grown up to be a strong global supplier in material handling equipments and construction machinery field.
Tyre Press
* Tyre press is the special device for the solid tyres to install the steel rim.
* The structure of this tyre press is reasonable and the hydraulic pressure pipeline issimple.
* It's reliable in seals and easy and simple to handle.
* It's with a few features like fast speed, high efficiency, big capacity.
Featurues:
- Rigid Frame: The construction is welded by large-scale channel beam
- High-grade Hydraulic Cylinder: The piston rod is grinded and hard-chromium plated
- Compact Hydraulic Power Unit: First-class quality
- Operation Panel: Operated by a handle for Down/Up, stop at any position when the handle is released
- Optional Tooling: One is for 2-piece rim tire (tyre), another is for 3-piece & 4-piece rim tire (tyre)
- Easy service & Heavy-duty application
- OPTIONS: Special Tooling requirement is available, special Input Voltage is available
-APPLICATIONS: Assembly & disassembly of solid tyre
| Model | | TP120 | TP130 | TP150/TP160 | TP180/TP200 |
| Pressure Capacity | ton | 120 | 130 | 150/160 | 180/200 |
| Max. Piston Stroke | mm | 500 | 500 | 600 | 600 |
| Cylinder Diameter | mm | 220 | 220 | 270 | 270 |
| Motor Rated Power | kw | 3.0 | 4 | 5.5 | 7.5 |
| | mm | 900 | 1000 | 1200 | 1200 |
| | mm | 1200 | 1200 | 1200 | 1200 |
| | mm | Φ620 | Φ620 | Φ730 | Φ730 |
Overall Dimension
(H*W*T) | mm | 2100*1200*300 | 2100*1300*300 | 2500*1700*500 | 2500*1700*500 |
| | | 825-15 | 825-15 | 1200-20 | 1200-20 |
| Total Weight | ton | 1.5 | 1.6 | 2.5 | 2.7 |
tools list |
|
(tools name) |
(size) D X d |
(quantity) |
(gasket) |
Φ150 X Φ80 |
4 pcs |
(gasket) |
Φ200 X Φ80 |
2 pcs |
(gasket) |
Φ300 X Φ170 |
2 pcs |
guide pin |
Φ12 X Φ8 |
6 pcs |
guide pin |
Φ15 X Φ10 |
6 pcs |
guide pin |
Φ18 X Φ12 |
6 pcs |
guide pin |
Φ22 X Φ16 |
6 pcs |
below (gasket) |
Φ434 X Φ355 |
6 pcs |
below (gasket)3.00D-8 |
Φ260 X Φ110 |
1 pcs |
below (gasket)4.00E-9 |
Φ293 X Φ150 |
1 pcs |
below (gasket)5.00F-10 |
Φ315 X Φ180 |
1 pcs |
below (gasket)5.00S-12 |
Φ390 X Φ230 |
1 pcs |
below (gasket)5.50F-15 |
Φ446 X Φ280 |
1 pcs |
above compression ring |
Φ434 X Φ383 |
1 pcs |
(pin) |
Φ379 X Φ318 |
1 pcs |
above compression ring 5.50F-15 |
Φ486 X Φ360 |
1 pcs |
above compression ring (ring)5.00S-12 |
Φ450 X Φ300 |
1 pcs |
above compression ring (ring)5.00F-10 |
Φ365 X Φ240 |
1 pcs |
above compression ring (ring)4.00E-9 |
Φ340 X Φ215 |
1 pcs |
above compression ring (ring)3.00D-8 |
Φ310 X Φ190 |
1 pcs |
above compression ring (ring) |
Φ600 X Φ500 |
1 pcs |
All products accessories separate iron box packing! |
| | SHYTGER FORKLIFT SOLID TIRE PRESS | |
| Model: | TP120 | |
| Load capacity: | 120Ton | |
| Max. Piston Stroke | 500mm | |
| Inner Width | 900mm | |
| Inner Heigth | 1200mm | |
| Weight | 1.5Ton | |
| Characters | |
| Four-wheel steering | |
| small turning radius | |
| operated flexibility | |
| large torque, | |
| Lifting various containers | |
| Using high pressure oil pipe | |
| low noise | | | | | |
| Remarks: | Red, orange and yellow color is available | |
| 1. Payment terms: | 30% T/T in advance and 70% balance before shipment | |
| 2. Delivery time : | 25days after receipt of the deposit | |
| 3. Warranty period: | One year or 2000 working hours | |
| 4. Validity: | 30 days after quotation date. | |
