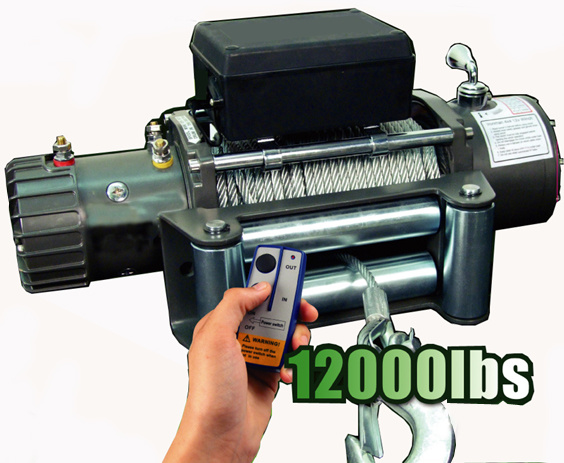

12V Truck Electric Winch with 12000lb Pulling Capacity

Name: 12V Truck Electric Winch with 12000lb Pulling Capacity
Brand: ibuyautoparts.com
SKU: 636883965
Availability: InStock
Rating: 4.6 (41 reviews)

Price:	US $ 255.0/Piece
Trade Terms:	FOB,CIF,others
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Specification:
1) Single Line Rated Pull: 12, 000lbs (5, 443kgs)
2) Motor: 6.0HP/4.5V, series wound
3) Control: Remote switch, 12ft ( 3.7m) lead
4) Geartrain: 3-stage planetary
5) Gear Reduction Ratio: 265: 1
6) Clutch: Sliding ring gear
7) Braking Action: Automatic in-the-drum
8) Drum size: Diameter: 2.52" (64mm), length: 8.82" (224mm)
9) Cable: 88ft of 3/8" diameter (27m of 9.5mm diameter)
10) Fairlead: 4-way roller fairlead
11) Battery: Recommended: 650CCA minimum for winching
12) Battery Leads: 2 gauge, 72" (1.83m)
13) Colors: Black/dark gray
14) Weight: Net weight: 88lbs (40kg), gross weight: 95lbs (43kg)
15) Mounting Bolt Pattern: 10.00 ± 0.015 X 4.50 ± 0.010" (254 X 114.3mm)

Prod Model:	MSW12.0
Markets:	North America,Oceania,Eastern Asia,Western Europe
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Pull Direction:	Forward
Working Voltage Of Electric Winch:	Low Voltage
Applicable Environment:	Mountain Road
Certification:	CE
Electric Winch Model:	Truck

Company Profile:

The company designs, manufactures and markets a full line of ATV winch and accessories that enhance the performance of Winches. The company's mainly markets electric winches and hoists to commercial, inudustrial and severe duty customers. We also has A Line of utility winches and hoists that are designed for professional trade workers and do-it-yourself consumers who need powerful tools to assist them in pulling, hauling, dragging or lifting. We focuses on three specific markets - Consumer Aftermarket, Industrial/Commercial, and Original Equipment. With more customers in oversea, We are the one of the china's most recognized brands in winch market.

Manufacturing, Research & Development:

We operates over 3000sq. Manufacturing facilities in 2006 China. We holds quality certifications for ISO/TS 16949: 2009, and continues a new product innovation.

Products:

We manufactures 50+ products for Automotive, Industrial users. From self ATV winches and industrial hoists systems to customers thatdu have chosen our products for their durability, reliability and dependability.

Sales & Service:

Our products are distributed primarily through distributors and OEM's. Our products export for to U. S. A., Canada, Germany, British, France, Australia, and other countries. It comprising of elite retail outlets that provide consumers with the highest level of product and service
