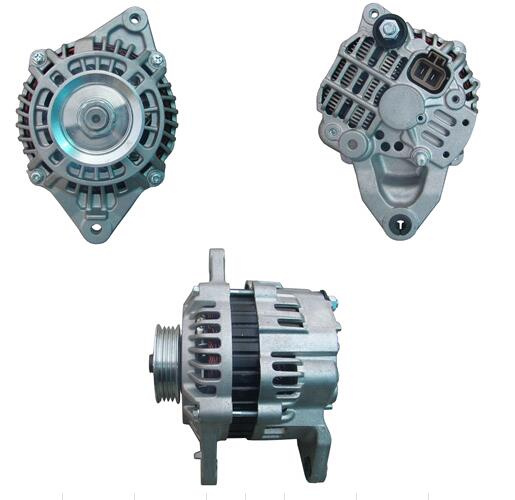

| Prod Model: |
Lester 13451 A2T38391 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Alternator: |
12V 75A |
| Rotation: |
Cw |
| Output Tested: |
12.8V |
| Regulator Voltage Set Point: |
14.5 ± 0.3 V |
| Net Weight: |
4.875 Kg |
| Rectifier Structure: |
Six Tubes |
| Current Level: |
7(',70～79A) |
| Bonding Type Of Magnetic Field Winding: |
Inner Bonding |
| Brushless Alternator Type: |
Magnetizing Type |
| Voltage Adjuster Type: |
Electromagnetic Vibratory |
| Voltage: |
12V |
| Head Cover Position: |
Front |
| Brand: |
Mitsubishi |
| Structure: |
Cw |
| Type: |
Alternator |
Product Description
| Unit Type | Alternator |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Amperage | 75 |
| Pulley Class | S4 |
| Regulator | IR |
| Manufacturer | MITSUBISHI |
| Brief | CHRYSLER &
MITSUBISHI 1992-96
4-GROOVE PULLEY
64MM OD 17MM ID
SEARCH: 487228 (REPLACEMENT PER TSB)
SEARCH: 487117 (90 AMP VERSION) |
| Detailed | Many Interchange This with the 13249 But This Unit Does Have Some Differences. There is No Extra Hook on the End of the Top Mounting Ear and the Battery Terminal and Plug are in a Slightly Different Location. The Mounting Looks Close Enough to Allowfor the Interchange. The 13616 is the 90A Version of This Unit which Fits the Mitsubishi Galant. Mitsubishi TSB 96-16-002 (November 1996) Calls for Replacement Alternator #MD327533 (PIC 487228 ) when the Car (1994-95 Galant Models Mentioned Only) Requires a Higher Output at Lower RPM'
s. The TSB Also Indicates That Pulley #MD618930 (Smaller OD) Should First Be Installed on the Original Unit Along with Replacement Belt #MD329451 To See if the Problem Can Be Corrected without the Unit Replacement. If That Does Not Solve the Problem Then the Unit Gets Installed. |
| MFG# | MFG NAME |
|---|
| AMT0102 | ARROWHEAD |
| A2T38391 | ARROWHEAD (OEM) |
| A2T81791 | ARROWHEAD (OEM) |
| 13451 | LESTER |
| 203-331 | PIC |
| 13451 | BBB |
| 13451 | BBB NEW |
| 186-0680 | BECK ARNLEY |
| 111376 | CARGO |
| 210-4152 | DENSO FIRST TIME FIT |
| A-8245 | DIXIE |
| M900078 | DUBOIS |
| 10226 | EXCEL |
| 13583 | LESTER (OLD) |
| LRA01608 | LUCAS ELECTRICAL EUROPE |
| A2T38391 | MITSUBISHI |
| A2T81791 | MITSUBISHI |
| MD190819 | MITSUBISHI MOTORS |
| MD198164 | MITSUBISHI MOTORS |
| M190819D | MITSUBISHI REMAN |
| M198164D | MITSUBISHI REMAN |
| 13451 | MPA |
| 13-8659 | NAPA |
| 13-8669 | NAPA |
| 213-8659 | NAPA POWER PREMIUM PLUS |
| 213-8669 | NAPA POWER PREMIUM PLUS |
| 13-8659 | NAPA POWER SUPREME |
| 13-8669 | NAPA POWER SUPREME |
| A1847 | USA INDUSTRIES |
| 1-1829-01MI | WAI |
| 90-27-3131 | WILSON |
| 90-27-3170 | WILSON |
| 90-27-3131 | WILSON NEW |
| ALT31086 | WOOD AUTO |
| 14473 | WORLDWIDE |
| MAKE | TYPE | MODEL | YEAR | ENGINE |
|---|
| DODGE | Auto and Light Truck | COLT | 1993 | 2.4L |
| DODGE | Auto and Light Truck | COLT | 1993 | 2.4L |
| DODGE | Auto and Light Truck | COLT | 1994 | 2.4L |
| DODGE | Auto and Light Truck | COLT | 1994 | 2.4L |
| EAGLE | Auto and Light Truck | SUMMIT | 1993 | 2.4L |
| EAGLE | Auto and Light Truck | SUMMIT | 1993 | 2.4L |
| EAGLE | Auto and Light Truck | SUMMIT | 1994 | 2.4L |
| EAGLE | Auto and Light Truck | SUMMIT | 1994 | 2.4L |
| EAGLE | Auto and Light Truck | SUMMIT | 1995 | 2.4L |
| EAGLE | Auto and Light Truck | SUMMIT | 1995 | 2.4L |
| EAGLE | Auto and Light Truck | SUMMIT | 1996 | 2.4L |
| EAGLE | Auto and Light Truck | SUMMIT | 1996 | 2.4L |
| MITSUBISHI | Auto and Light Truck | EXPO | 1992 | 2.4L |
| MITSUBISHI | Auto and Light Truck | EXPO | 1992 | 2.4L |
| MITSUBISHI | Auto and Light Truck | EXPO | 1993 | 2.4L |
| MITSUBISHI | Auto and Light Truck | EXPO | 1993 | 2.4L |
| MITSUBISHI | Auto and Light Truck | EXPO | 1994 | 2.4L |
| MITSUBISHI | Auto and Light Truck | EXPO | 1994 | 2.4L |
| MITSUBISHI | Auto and Light Truck | EXPO | 1995 | 2.4L |
| MITSUBISHI | Auto and Light Truck | EXPO | 1995 | 2.4L |
| MITSUBISHI | Auto and Light Truck | EXPO | 1995 | 2.4L |
| MITSUBISHI | Auto and Light Truck | EXPO | 1995 | 2.4L |
| MITSUBISHI | Auto and Light Truck | EXPO | 1995 | 2.4L |
| MITSUBISHI | Auto and Light Truck | EXPO | 1995 | 2.4L |
| MITSUBISHI | Auto and Light Truck | GALANT | 1994 | 2.4L |
| MITSUBISHI | Auto and Light Truck | GALANT | 1994 | 2.4L |
| MITSUBISHI | Auto and Light Truck | GALANT | 1995 | 2.4L |
| MITSUBISHI | Auto and Light Truck | GALANT | 1995 | 2.4L |
| PLYMOUTH | Auto and Light Truck | COLT | 1993 | 2.4L |
| PLYMOUTH | Auto and Light Truck | COLT | 1993 | 2.4L |
| PLYMOUTH | Auto and Light Truck | COLT | 1994 | 2.4L |
| PLYMOUTH | Auto and Light Truck | COLT | 1994 | 2.4L |
| AEP Number | AEP (OEM) | PART TYPE |
|---|
| BRG0061 | 35-2312E | BEARING - ROLLER |
| BRG0005 | ND949100-2250 | BEARING - ROLLER |
| AMT7502 |
| BRUSH - ALTERNATOR |
|
| PLUG CODE |
| AMT1254 |
| RECTIFIER |
| AMT6043 |
| REGULATOR w/BRUSHES |
| AMT3005 |
| ROTOR |
| AMT3503 |
| SLIP RING |
|
| TEST LEAD |
