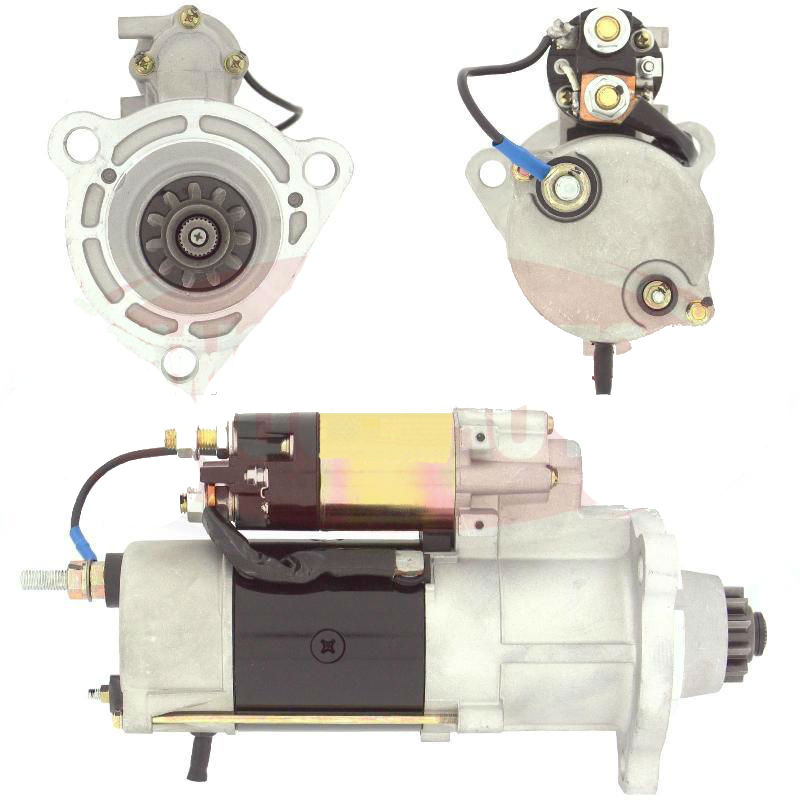

| Unit Type | Starter |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Teeth | 11 |
| KW | 7.2 |
| Manufacturer | DELCO |
| Starter Type | PLGR |
| Brief | FREIGHTLINER C112 / C120 CENTURY CLASS
FREIGHTLINER FLD 112 / 112SD CLASS
CUMMINS ISC / ISL / ISX ENGINES
ADDL INFO: DELCO 39MT STARTER
ADDL INFO: .66 MOUNTING HOLES
ADDL INFO: 82 DEGREE SOLENOID POSITION
ADDL INFO: wo/IMS SWITCH
SEARCH: 481012 (VIRTUALLY THE SAME UNIT)
SEARCH: 481013 (SAME w/IMS SWITCH)
SEARCH: 481014 (SAME w/OCP)
SEARCH: 481015 (SUPER 39MT - HD VERSION)
SEARCH: 547653 (DELCO 44MT)
SEARCH: 485313 (DENSO VERSION wo/IMS)
SEARCH: 485314 (DENSO VERISON w/IMS)
SEARCH: 485785 (DENSO 5.0KW)
SEARCH: 481281 481285 481328481449 (42MT)
SEARCH: 481375 481377 (MORE 42MT'
s THAT THIS REPLACES)
SEARCH: 546702 (ROTATABLE DE FRAME VERSION)
SEARCH 483285 (LN VERSION)
SEARCH: 547653 (DELCO 44MT VERSION)
SEARCH: 560040 (BOSCH LONG HAUL SERIES VERSION)
Delco 39MT 8200308 With Rotatable DEH Can Replace 19011518 |
| Detailed | Delco Remy'
s Integral Magnetic
Switch (IMS) Attaches Directly to Each MxT (38MT or 39MT) Starter Ensuring a Far
More Robust and Reliable Circuit for Starting the Engine. This Unit May or May Not Have the Delco IMS Installed Originally But Many are Supplied With This Switch on Replacement.
The Difference Between Delco New Service 8200289 and 8200290 is the Location of the IMS Switch. |
| SDR0286 | ARROWHEAD |
| D8200289 | ARROWHEAD (OEM) |
| D8200308 | ARROWHEAD (OEM) |
| D8300019 | ARROWHEAD (OEM) |
| 6804 | LESTER |
| 141-703 | PIC |
| 510-6804 | BARSANCO |
| 6804 | BBB HD |
| 3103915 | CUMMINS |
| 10461753 | DELCO |
| 19011506 | DELCO |
| 19011518 | DELCO |
| 8200033 | DELCO |
| 8200040 | DELCO |
| 8200692 | DELCO |
| 8200289 | DELCO NEW SERVICE |
| 8300019 | DELCO REMAN |
| 8200308 | DELCO ROTATABLE DEF |
| TS-1743 | DIXIE |
| 200-39102 | DIXIE NEW |
| 681040 | DUBOIS |
| 39MT | FAMILY |
| 410-12254 | J & N |
| 57-2528 | MINNPAR |
| X76804 | MPA HD |
| X76911N | MPA NEW HD |
| 76804 | NAPA HD |
| 76911N | NAPA NEW HD |
| STR-4290 | NSA |
| ST-6804 | RCP |
| 2-2352-DR | WAI |
| 91-01-4561 | WILSON |
| 91-01-4561 | WILSON HD |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1985 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1985 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1985 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1986 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1986 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1986 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1987 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1987 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1987 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1988 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1988 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1988 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1989 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1989 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1989 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1990 | Caterpillar 3176 |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1990 | Caterpillar 3176 |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1990 | Caterpillar 3176 |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1990 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1990 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1990 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1991 | Caterpillar 3176 |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1991 | Caterpillar 3176 |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1991 | Caterpillar 3176 |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1991 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1991 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1991 | Cummins 855 (NHC NTC) |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1992 | Caterpillar 3176 |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1992 | Caterpillar 3176 |
| FORD | Medium & Heavy-Duty Trucks | L6000 / 7000 / 8000 / 9000 Trucks | 1992 | Caterpillar 3176 |
| SDR3108 | | ARMATURE - STARTER |
| | | BEARING - NEEDLE |
| BRG0111 | 35-3708E | BEARING - ROLLER |
| SDR7551 | R-174 | BRUSH (GRD) |
| SDR7552 | | BRUSH (POS) |
| SDR1343 | | BRUSH HOLDER - STARTER |
| | D10537864 | CASTING - C.E. |
| | | CASTING - D.E. |
| | | COVER - PLANETARY GEAR |
| SDR5156 | 11-DE3800 | DRIVE CLUTCH |
| | | DRIVE CLUTCH / PLANETARY ASSY |
| | 11-DE3970 | DRIVE PINION (GEAR) |
| | ZN13131 | DRIVE PINION KIT |
| | D10511404 | FIELD CASE ASSY. |
| | D10517202 | FIELD CASE ASSY. |
| SDR4573 | | FIELD COIL - STARTERS |
| | | O-RING - STARTER |
| | | PLANETARY SHAFT |
| | | PLANETARY SHAFT |
| HDW9138 | | RETAINING RING - DRIVE |
| SDR2633 | | SEAL - D.E. FRAME (STR.) |
| SDR2532 | | SHIFT LEVER |
| SDR2531 | D10511402 | SHIFT LEVER KIT |
| SDR2533 | | SHIFT LEVER SUPPORT |
| SDR6153 | ZM841 | SOLENOID - STARTER |
| SDR6176 | | SOLENOID CONTROL RELAY (IMS) |
| SDR6154 | D10511414 | SOLENOID CONTROL RELAY (IMS) |
| | | STATIONARY GEAR |
| HDW9139 | | STOP COLLAR - DRIVE |
| | | THRU BOLT - STR. |
