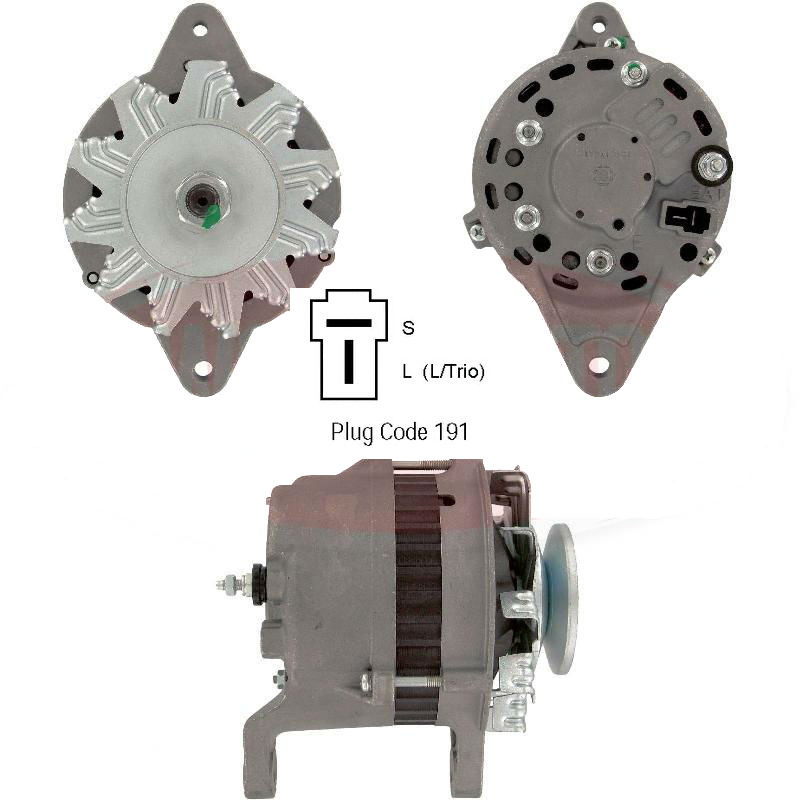

| Unit Type | Alternator |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Amperage | 35 |
| Pulley Class | V1 |
| Regulator | IR |
| Fan Type | EF |
| Manufacturer | MITSUBISHI |
| Brief | NISSAN PICKUP 1978-80
1-V PULLEY 68mm OD 15mm ID
ADDL INFO: 486729 486732 LOOK SIMILAR BUT HAVE AN R-L REGULATOR - NOT INTERCHANGEABLE
SEARCH: 487671 (HITACHI VERSION) |
| Detailed | Both Hitachi 487671 and Mitsubishi 486728Make a Unit Here. we Have Combined Them as the 14231 Rather Than Create a NewNumber for the Mitsubishi Version. The Mitsubishi Unit Looks Just Like the 14597 But Care Must Be Taken as the 14231 486728 Has an S-L Plug while the 14597 Has an R-L Plug. These Units Should Not Be Interchanged. |
| AHI0096 | ARROWHEAD |
| A1T22971 | ARROWHEAD (OEM) |
| 14231 | LESTER |
| 203-152 | PIC |
| 334-1571 | AC DELCO |
| 029810 | ANDRE NIERMANN |
| 190-002 | BARSANCO |
| 14231 | BBB |
| 14231 | BBB HD |
| 14231 | BBB NEW |
| 186-0115 | BECK ARNLEY |
| 110264 | CARGO |
| 10463709 | DELCO REMAN |
| A-845 | DIXIE |
| M900008 | DUBOIS |
| 14231 | EXCEL |
| LRA01218 | LUCAS ELECTRICAL EUROPE |
| 47-4384 | MINNPAR |
| A1T22971 | MITSUBISHI |
| 14231 | MPA |
| X14231 | MPA HD |
| X14231N | MPA NEW HD |
| 13-8191 | NAPA |
| 14231 | NAPA HD |
| 14231N | NAPA NEW HD |
| 213-8130 | NAPA POWER PREMIUM PLUS |
| 13-8130 | NAPA POWER SUPREME |
| 23100-B9810 | NISSAN |
| 973485 | TOWMOTOR |
| A430 | USA INDUSTRIES |
| 1-1112-01MI | WAI |
| 90-27-3176 | WILSON |
| 90-27-3176 | WILSON HD |
| 90-27-3176 | WILSON NEW |
| ALT31012 | WOOD AUTO |
| 14231 | WORLDWIDE |
| NISSAN | Lift Trucks | AEH | All | H20 Engine |
| NISSAN | Lift Trucks | AEH | All | Z24 Engine |
| NISSAN | Lift Trucks | AH | All | A15 Engine |
| NISSAN | Lift Trucks | AH | All | H20 Engine |
| NISSAN | Lift Trucks | APH | All | H20 Engine |
| NISSAN | Lift Trucks | APH | All | Z24 Engine |
| NISSAN | Lift Trucks | ASH | All | H20 Engine |
| NISSAN | Lift Trucks | ASH | All | Z24 Engine |
| NISSAN | Lift Trucks | BF | All | TB42 Engine |
| NISSAN | Lift Trucks | CEGH | All | H20 Engine |
| NISSAN | Lift Trucks | CEGH | All | Z24 Engine |
| NISSAN | Lift Trucks | CEH | All | H20 Engine |
| NISSAN | Lift Trucks | CEH | All | Z24 Engine |
| NISSAN | Lift Trucks | CPH | All | A15 Engine |
| NISSAN | Lift Trucks | CPH | All | H20 Engine |
| NISSAN | Lift Trucks | CPH | All | Z24 Engine |
| NISSAN | Lift Trucks | CRGH | All | Z24 Engine |
| NISSAN | Lift Trucks | DF | All | TB42 Engine |
| NISSAN | Lift Trucks | EGH | All | H20 Engine |
| NISSAN | Lift Trucks | EGH | All | Z24 Engine |
| NISSAN | Lift Trucks | EH | All | A15 Engine |
| NISSAN | Lift Trucks | EH | All | H20 Engine |
| NISSAN | Lift Trucks | F03 | 89-On | TB42 Engine |
| NISSAN | Lift Trucks | H01 | 86-On | H20 Gas & LPG Engine |
| NISSAN | Lift Trucks | H01 | 87-On | A15 Gas Engine |
| NISSAN | Lift Trucks | H02 | 1986 | A15 Gas Engine |
| NISSAN | Lift Trucks | H02 | 1987 | A15 Gas Engine |
| NISSAN | Lift Trucks | H02 | 1988 | A15 Gas Engine |
| NISSAN | Lift Trucks | H02 | 1989 | A15 Gas Engine |
| NISSAN | Lift Trucks | H02 | 1990 | A15 Gas Engine |
| NISSAN | Lift Trucks | H02 | 1991 | A15 Gas Engine |
| NISSAN | Lift Trucks | H02 | 1992 | A15 Gas Engine |
| NISSAN | Lift Trucks | H02 | 86-On | H20 Gas & LPG Engine |
| NISSAN | Lift Trucks | H02 | 86-On | Z24 LPG Engine |
| NISSAN | Lift Trucks | KAH | All | A15 Engine |
| NISSAN | Lift Trucks | KCPH | All | A15 Engine |
| NISSAN | Lift Trucks | KH01 | 93-On | A15 Gas Engine |
| NISSAN | Lift Trucks | KPH | All | A15 Engine |
| NISSAN | Lift Trucks | MF | All | TB42 Engine |
| NISSAN | Lift Trucks | UF05 | All | TB42 Engine |
| NISSAN | Lift Trucks | Various Models | 79-On | Z20 Engine |
| NISSAN | Lift Trucks | Various Models | 79-On | Z24 Engine |
| NISSAN | Lift Trucks | WF03 | All | TB42 Engine |
| NISSAN | Lift Trucks | WF05 | All | TB42 Engine |
| NISSAN | Lift Trucks | WGF03 | All | TB42 Engine |
| TCM EQUIPMENT | Lift Trucks | FCG10N7 | 85-On | A15 Engine |
| TCM EQUIPMENT | Lift Trucks | FCG15N6 | 85-On | J15PU240 Engine |
| TCM EQUIPMENT | Lift Trucks | FCG18N7 | 85-On | A15 Engine |
| TCM EQUIPMENT | Lift Trucks | FCG20N | 79-On | H20 Engine |
| TCM EQUIPMENT | Lift Trucks | FCG23N | 79-On | H20 Engine |
| TCM EQUIPMENT | Lift Trucks | FCG25N | 79-On | H20 Engine |
| TCM EQUIPMENT | Lift Trucks | FCG28N | 79-On | H20 Engine |
| TCM EQUIPMENT | Lift Trucks | FG10N | 85-On | A15 Engine |
| TCM EQUIPMENT | Lift Trucks | FG14N | 85-On | A15 Engine |
| TCM EQUIPMENT | Lift Trucks | FG15N | 85-On | A15 Engine |
| TCM EQUIPMENT | Lift Trucks | FG18N | 85-On | A15 Engine |
| TCM EQUIPMENT | Lift Trucks | FG20N | 79-On | H20 Engine |
| TCM EQUIPMENT | Lift Trucks | FG20N | 85-On | A15 Engine |
| TCM EQUIPMENT | Lift Trucks | FG23N | 79-On | H20 Engine |
| TCM EQUIPMENT | Lift Trucks | FG23N | 85-On | A15 Engine |
| TCM EQUIPMENT | Lift Trucks | FG25N | 80-On | H20 Engine |
| TCM EQUIPMENT | Lift Trucks | FG25N | 85-On | A15 Engine |
| TCM EQUIPMENT | Lift Trucks | FG28N | 79-On | H20 Engine |
| TCM EQUIPMENT | Lift Trucks | FG30N | 79-On | H20 Engine |
| TCM EQUIPMENT | Lift Trucks | FG35N7 | 92-On | TB42 Engine |
| TCM EQUIPMENT | Lift Trucks | FG40N7 | 92-On | TB42 Engine |
| TCM EQUIPMENT | Lift Trucks | FG9 | 85-On | A15 Engine |
| TCM EQUIPMENT | Lift Trucks | FG9N | 85-On | A15 Engine |
| TCM EQUIPMENT | Lift Trucks | FHG15N | 80-On | H20 Engine |
| TCM EQUIPMENT | Lift Trucks | FHG18N | 80-On | H20 Engine |
| TCM EQUIPMENT | Lift Trucks | FHG20N | 89-On | Z24 Engine |
| TCM EQUIPMENT | Lift Trucks | FHG25N | 89-On | Z24 Engine |
| TCM EQUIPMENT | Lift Trucks | FHG30N | 89-On | Z24 Engine |
| TCM EQUIPMENT | Misc. Equipment | SG10N | 80-On | H20 Engine |
| TCM EQUIPMENT | Misc. Equipment | SG12N | 80-On | H20 Engine |
| NISSAN | Auto and Light Truck | 620 PICKUP | 1978 | 2.0L |
| NISSAN | Auto and Light Truck | 620 PICKUP | 1979 | 2.0L |
| NISSAN | Auto and Light Truck | 720 PICKUP | 1980 | 2.0L |
| BRG0012 | ND949100-0350 | BEARING - ROLLER |
| BRG0015 | ND949100-2951 | BEARING - ROLLER |
| AMT7507 | | BRUSH - ALTERNATOR |
| AMT7501 | | BRUSH - ALTERNATOR |
| | | PLUG CODE |
| AMT1205 | | RECTIFIER |
| AMT6009 | | REGULATOR w/BRUSHES |
| | | ROTOR |
| | | TEST LEAD |
