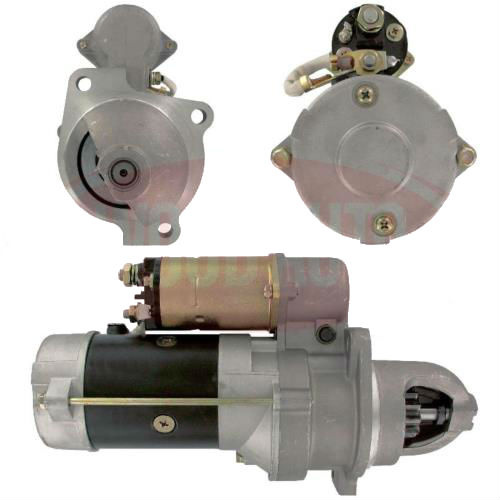

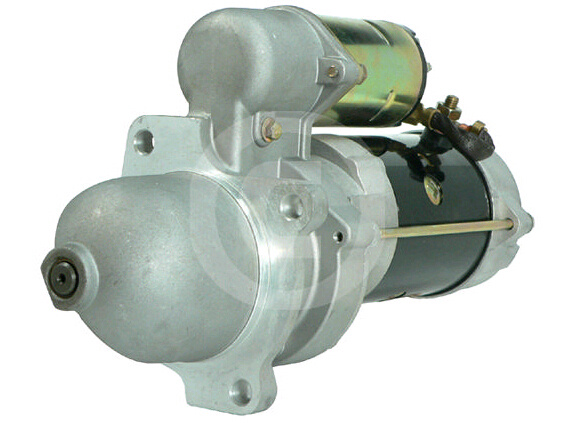

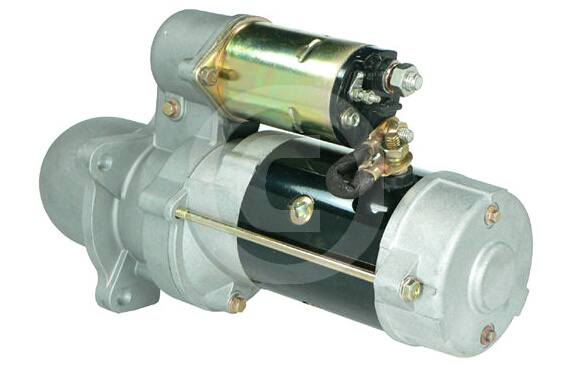

12V 2.5A 10t Starter Motor for Delco Hyster Lester 6588

Unit Type	Starter
Part Type	UNIT
Voltage	12
Rotation	CW
Teeth	10
Manufacturer	DELCO
Starter Type	OSGR
Brief	HYSTER ADDL INFO: DELCO 28MT STARTER ADDL INFO: DRIVE 509412 (40mm GEAR OD) ADDL INFO: WET CLUTCH ADDL INFO: 3-TERMINAL SOLENOID SEARCH: 480234 (DRY CLUTCH)
Detailed	This is a Delco 28MT (12V, CW, 10T, 3-Terminal Solenoid) which is the Wet Clutch Version of the 6572. This Will Also Replace the Delco OEM No. 1998468 (27MT).

SNK0015	ARROWHEAD
1100-0106	ATLANTIC
1400-0152	ATLANTIC
6588	LESTER
140-908	PIC
150108	API MARINE
510-6588	BARSANCO
6588	BBB HD
22-6588	BBB SMALL MOTOR
112268	CARGO
10461485	DELCO
1113290	DELCO
TS-1618	DIXIE
201-28112	DIXIE NEW
28MT	FAMILY
410-12144	J & N
57-2715	MINNPAR
X76588	MPA HD
P625N	MPA SMALL MOTOR
76588	NAPA HD
RN6588	NAPA SMALL MOTOR
0-23000-2010	NIKKO
02-23-1024	NIKKO DENKI
STR-7066	NSA
23438A	RCP
RS41326	REMY SMALL MOTOR
6588	USA INDUSTRIES
50-8417	WAI
50-8417	WAI SALES
91-01-4364	WILSON
91-01-4364	WILSON HD
71-01-6588	WILSON SMALL ENGINE
STR7066	WOOD AUTO

HYSTER	Lift Trucks	H-150-275H	1985	Perkins 6-354
HYSTER	Lift Trucks	H-150-275H	1986	Perkins 6-354
HYSTER	Lift Trucks	H-350A	1985	Perkins 6-354
HYSTER	Lift Trucks	H-350A	1986	Perkins 6-354
HYSTER	Lift Trucks	H-350A	1987	Perkins 6-354
HYSTER	Lift Trucks	H-350A	1988	Perkins 6-354

SNK3000		ARMATURE - STARTER
BRG0011	ND949100-0570	BEARING - ROLLER
BRG0007	BF00M990405	BEARING - ROLLER
		BEARING - ROLLER
BRG0009	35-4706E	BEARING - ROLLER
SNK7500		BRUSH (GRD)
SNK7501		BRUSH (POS)
SNK1300		BRUSH HOLDER (EMPTY) - STR.
SNK1500		BRUSH SPRING - STARTER
SNK7100		BUSHING - D.E.
SDR7223		BUSHING - STARTER DRIVE
SNK1000		CASTING - C.E.
SNK2401		CASTING - C.S.
SNK2003		CASTING - D.E.
SNK5001	ZN0649	DRIVE
SNK4000		FIELD CASE ASSY.
SNK4400		FIELD COIL - STARTERS
		GASKET - PLUG
SNK9103		PARTS KIT - STARTERS
IHW9204		RETAINING RING - DRIVE
SNK2601		SEAL - C.S. HOUSING
SNK2500		SHIFT LEVER
SNK6001	ZM805	SOLENOID - STARTER
		SOLENOID BOOT
		SOLENOID CAP
		SOLENOID KIT (COMPLETE)
IHW9104		STOP COLLAR - DRIVE
SNK9102		TERMINAL KIT - FIELD / BATTERY
IHW1400		THRU BOLT - STR.
HDW6515		WASHER - SPACER (FIBER)
		WASHER - SPACER (METAL)
HDW3407		WASHER - SPACER (METAL)

This is a Delco 28MT (12V, CW, 10T, 3-Terminal Solenoid) Which is the Wet Clutch Version of the 6572. This Will Also Replace the Delco OEM No. 1998468 (27MT).
We control the raw material with strict standard, especially for the copper wire. We use 10# steel and good magnet materials.

Production Equipment:

The armature and stator are produced by automatic equipment.

Inspection equipment:

We have more than 60 quality inspection equipment. We can inspect all items according to starter GB standard and analyze the quality differences.

Armature, stator, solenoid switch and the starter assembly are all 100% inspected.

Whole set laboratory equipment:

We have whole set laboratory equipment for the starter performance test.

Market share:

We are No 1 for single cylinder diesel engine starter production in China. The annual selling quantity is more than 400000 sets.

Experiences:
Plentiful Experience to ensure quality
Most of our workers are with more than 10 years even 20 years experiences.
Our R&D engineers are also with more than 20 years experiences.

9.  After-sales service:
Good and fast response for after- sale Services
Once we receive quality problems complaint, we will reply customer within 5 hours, if domestic customers, we our engineers will go to solve the problem in the spot as quick as possible.
Competitive price ------

Over 90% parts produced by our own factory

Regular Starters, Next Day Delivery.
Save Money Repair it, Do not replace it.
1 year warranty
100% brand new product

Major product family:
    Alt: CS, AD, ND, Ford, SI, Leece Neville, Marelli, Bosch, Valeo, Mitsubishi, Lucas, etc.
    Str: Ford PMGR, PG260D/G/L/F1/F2/M, Bosch, Valeo, Mitsubishi, etc.
 Market (%):
     North America 60%; Middle East 15%; Europe 15%; Local 10%.


We are specialized in Auto alternator and starter motor since 2000. Quality first, price second. Usually, our alternator and starter motor can match with each other smoothly in the same model Vehicle.

Our company boasts a high-quality management team from top to bottom for the purpose of an efficient operation system. We control every part and every working procedure strictly because we regard product quality as a basis of our corporate development. Based on the original ISO9001: 2000 International Quality Management System, all links of our production and management are strictly guided by the standard of ISO/TS16949
