| Unit Type | Starter |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Teeth | 10 |
| Manufacturer | DELCO |
| Starter Type | OSGR |
| Brief | CUMMINGS DIESEL ENGINES
ADDL INFO: DELCO 28MT STARTER
ADDL INFO: DRIVE 509410 (32mm GEAR OD)
ADDL INFO: DRY CLUTCH STARTER
SEARCH: 480263 (WET CLUTCH VERSION)
SEARCH 480192 (LONGER BATTERY STUD)
SEARCH: 480983 (29MT REPLACEMENT)
SEARCH: 475045 475047 (MITSUBISHI)
SEARCH: 485611 485673 (DENSO OSGR)
SEARCH: 478118 (BOSCH)
SEARCH: 483722 (ISKRA)
SEARCH: 483217 (LEECE NEVILLE M93R) |

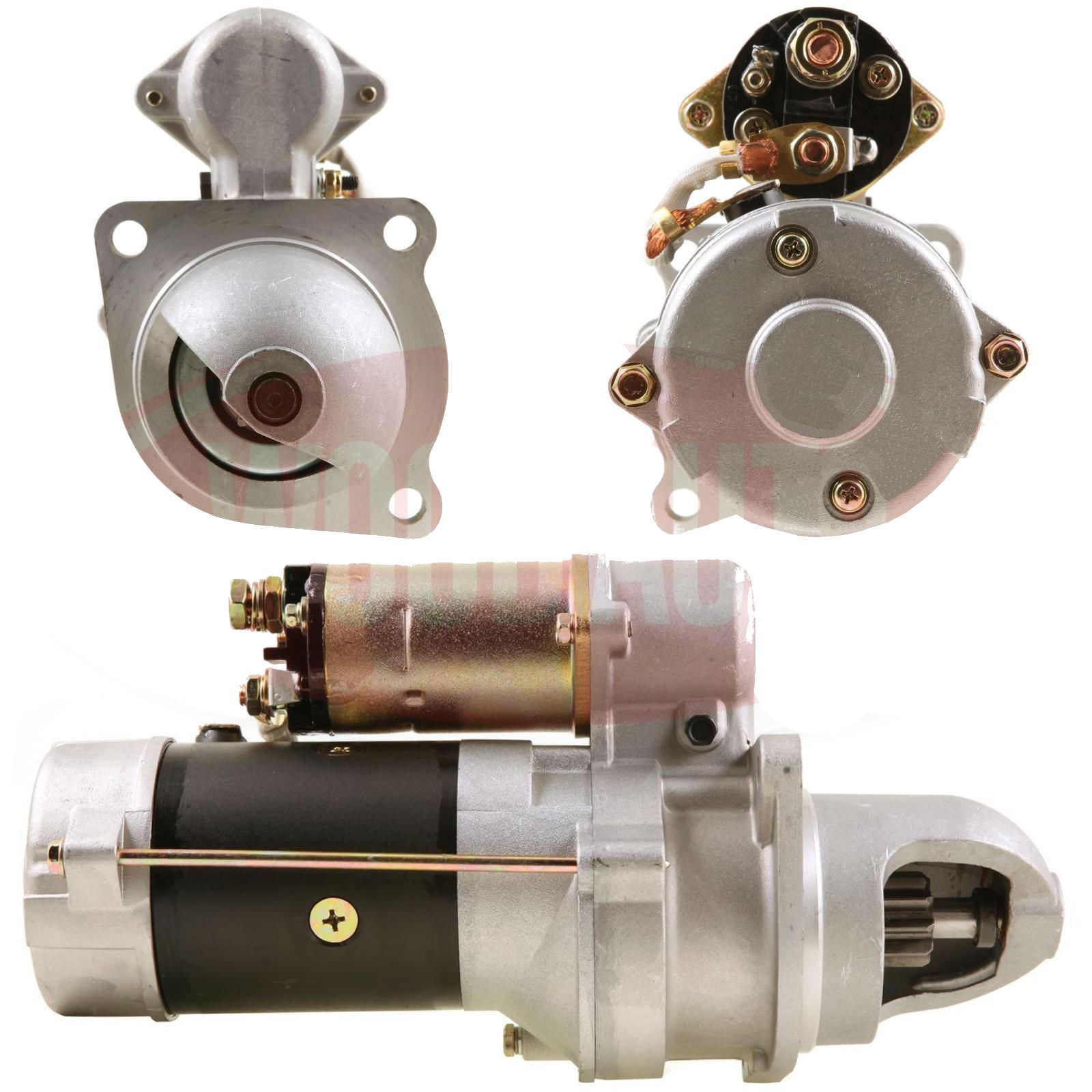

| Detailed | This is a Delco 28MT (12V, CW, 10T, 3-Terminal Solenoid) for Small Cummins Diesel Engines, Including the Ford 6.9L Diesel. This Unit Looks Very Much Like, and Could Replace, the Common Starter Used on Older Ford 6.9L Trucks as well as Other Cummins Diesel Engines (Lester No. 3300 - 479854). |
| SNK0006 | ARROWHEAD |
| IS1090 | ARROWHEAD (OEM) |
| MS148 | ARROWHEAD (OEM) |
| NK0-23000-1818 | ARROWHEAD (OEM) |
| 6800-0100 | ATLANTIC |
| 6573 | LESTER |
| 140-920 | PIC |
| 323-419 | AC DELCO |
| CM-8006 | ACE |
| 150101 | API MARINE |
| 150103 | API MARINE |
| 510-6573 | BARSANCO |
| 6573 | BBB HD |
| 22-6573 | BBB SMALL MOTOR |
| 6651636 | BOBCAT |
| BSO7194R | BOWERS |
| 112267 | CARGO |
| 3604648RX | CUMMINS |
| 3916854 | CUMMINS |
| 10465026 | DELCO |
| 10465043 | DELCO |
| 10465407 | DELCO |
| 10479621 | DELCO |
| 1113276 | DELCO |
| 10465403 | DELCO REMAN |
| TS-1578 | DIXIE |
| 201-28106 | DIXIE NEW |
| 681276 | DUBOIS |
| 4-6947 | EMP PARTS |
| E-821104X | EUCLID |
| 2918 | EXCEL |
| 28MT | FAMILY |
| 410-12130 | J & N |
| 410-12496 | J & N |
| IS 1090 | LETRIKA (ISKRA) AFTERMARKET |
| LRS01408 | LUCAS ELECTRICAL EUROPE |
| MS148 | MAHLE |
| 50-805991 | MERCURY MARINE |
| S7051M | MES MOTORCYCLE & MARINE |
| 57-1316 | MINNPAR |
| X76573 | MPA HD |
| X76573N | MPA NEW HD |
| P159N | MPA SMALL MOTOR |
| 76573 | NAPA HD |
| 76573N | NAPA NEW HD |
| RN6573 | NAPA SMALL MOTOR |
| 0-23000-1818 | NIKKO |
| 0-23000-2458 | NIKKO |
| 0-61000-0020 | NIKKO |
| 0-61000-0230 | NIKKO |
| STR-7051 | NSA |
| 23439A | RCP |
| 6573 | USA INDUSTRIES |
| 415001 | WAGNER |
| 2-1749-DR | WAI |
| 50-8407 | WAI SALES |
| 30-34804291 | WHITE |
| 91-01-4313 | WILSON |
| 91-01-4313 | WILSON HD |
| 71-01-6573 | WILSON SMALL ENGINE |
| STR7051 | WOOD AUTO |
| 61274 | WORLDWIDE |
| 80.280.01 | ZM |
| CUMMINS ENGINES | Engines - Industrial | B Series | 94-On | 3.9L |
| CUMMINS ENGINES | Engines - Industrial | B Series | 94-On | 3.9L |
| CUMMINS ENGINES | Engines - Industrial | B Series | 94-On | 3.9L |
| CUMMINS ENGINES | Engines - Industrial | B Series | 94-On | 5.9L |
| CUMMINS ENGINES | Engines - Industrial | B Series | 94-On | 5.9L |
| CUMMINS ENGINES | Engines - Industrial | B Series | 94-On | 5.9L |
| INGERSOLL RAND | Sandblasters | Cyclonaire | 90-On | Cummins 4-239 |
| INGERSOLL RAND | Sandblasters | Cyclonaire | 90-On | Cummins 4-239 |
| INGERSOLL RAND | Sandblasters | Cyclonaire | 90-On | Cummins 4-239 |
| PERKINS | Engines - Industrial | Various Models | | 4.236M 3860cc |
| PERKINS | Engines - Industrial | Various Models | | 4.236M 3860cc |
| PERKINS | Engines - Industrial | Various Models | | 4.236M 3860cc |
| TIMBERJACK | Misc. Equipment | 610 Forwarder | 95-On | |
| TIMBERJACK | Misc. Equipment | 610 Forwarder | 95-On | |
| TIMBERJACK | Misc. Equipment | 610 Forwarder | 95-On | |
| TUG | Air Conditioner | AC20D | All | Cummins B3.9 |
| TUG | Air Conditioner | AC20D | All | Cummins B3.9 |
| TUG | Air Conditioner | AC20D | All | Cummins B3.9 |
| TUG | Air Conditioner | DEH-30 Heater | All | Cummins B3.9 |
| TUG | Air Conditioner | DEH-30 Heater | All | Cummins B3.9 |
| TUG | Air Conditioner | DEH-30 Heater | All | Cummins B3.9 |
| TUG | Air Start | AS100 | All | Cummins B5.9 |
| TUG | Air Start | AS100 | All | Cummins B5.9 |
| TUG | Air Start | AS100 | All | Cummins B5.9 |
| TUG | GPU | GPU 400-60 | All | Cummins B3.9 Tier I |
| TUG | GPU | GPU 400-60 | All | Cummins B3.9 Tier I |
| TUG | GPU | GPU 400-60 | All | Cummins B3.9 Tier I |
| TUG | GPU | GPU 400-90 | All | Cummins B5.9 |
| TUG | GPU | GPU 400-90 | All | Cummins B5.9 |
| TUG | GPU | GPU 400-90 | All | Cummins B5.9 |
| SNK3000 | | ARMATURE - STARTER |
| BRG0011 | ND949100-0570 | BEARING - ROLLER |
| BRG0007 | BF00M990405 | BEARING - ROLLER |
| | | BEARING - ROLLER |
| BRG0009 | 35-4706E | BEARING - ROLLER |
| SNK7500 | | BRUSH (GRD) |
| SNK7501 | | BRUSH (POS) |
| SNK1300 | | BRUSH HOLDER (EMPTY) - STR. |
| SNK1500 | | BRUSH SPRING - STARTER |
| SNK7100 | | BUSHING - D.E. |
| SDR7223 | | BUSHING - STARTER DRIVE |
| SNK1000 | | CASTING - C.E. |
| SNK2451 | | CASTING - C.S. |
| SNK2006 | | CASTING - D.E. |
| SNK5006 | ZN1194 | DRIVE |
| SNK9100 | | DRIVE RETAINER KIT |
| SNK4000 | | FIELD CASE ASSY. |
| SNK4400 | | FIELD COIL - STARTERS |
| | | O-RING - STARTER |
| SNK9103 | | PARTS KIT - STARTERS |
| IHW9204 | | RETAINING RING - DRIVE |
| SNK2500 | | SHIFT LEVER |
| SNK6001 | ZM805 | SOLENOID - STARTER |
| | | SOLENOID BOOT |
| | | SOLENOID CAP |
| | | SOLENOID KIT (COMPLETE) |
| IHW9104 | | STOP COLLAR - DRIVE |
| SNK9102 | | TERMINAL KIT - FIELD / BATTERY |
| IHW1400 | | THRU BOLT - STR. |
| HDW6515 | | WASHER - SPACER (FIBER) |
| | | WASHER - SPACER (METAL) |
| HDW3407 | | WASHER - SPACER (METAL) |
