| Unit Type | Alternator |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Amperage | 120 |
| Pulley Class | S6 |
| Regulator | ER |
| Fan Type | IF |
| Manufacturer | DENSO |
| Brief | CHRYSLER SEBRING 2.4L, 2.7L 2001-06
DODGE STRATUS 2.4L, 2.7L 2001-06
6-GROOVE PULLEY 64mm OD
ADDL INFO: TOP MOUNTING HOLE ROUND
SEARCH: 495497 (MTG. HOLE OBLONG) |

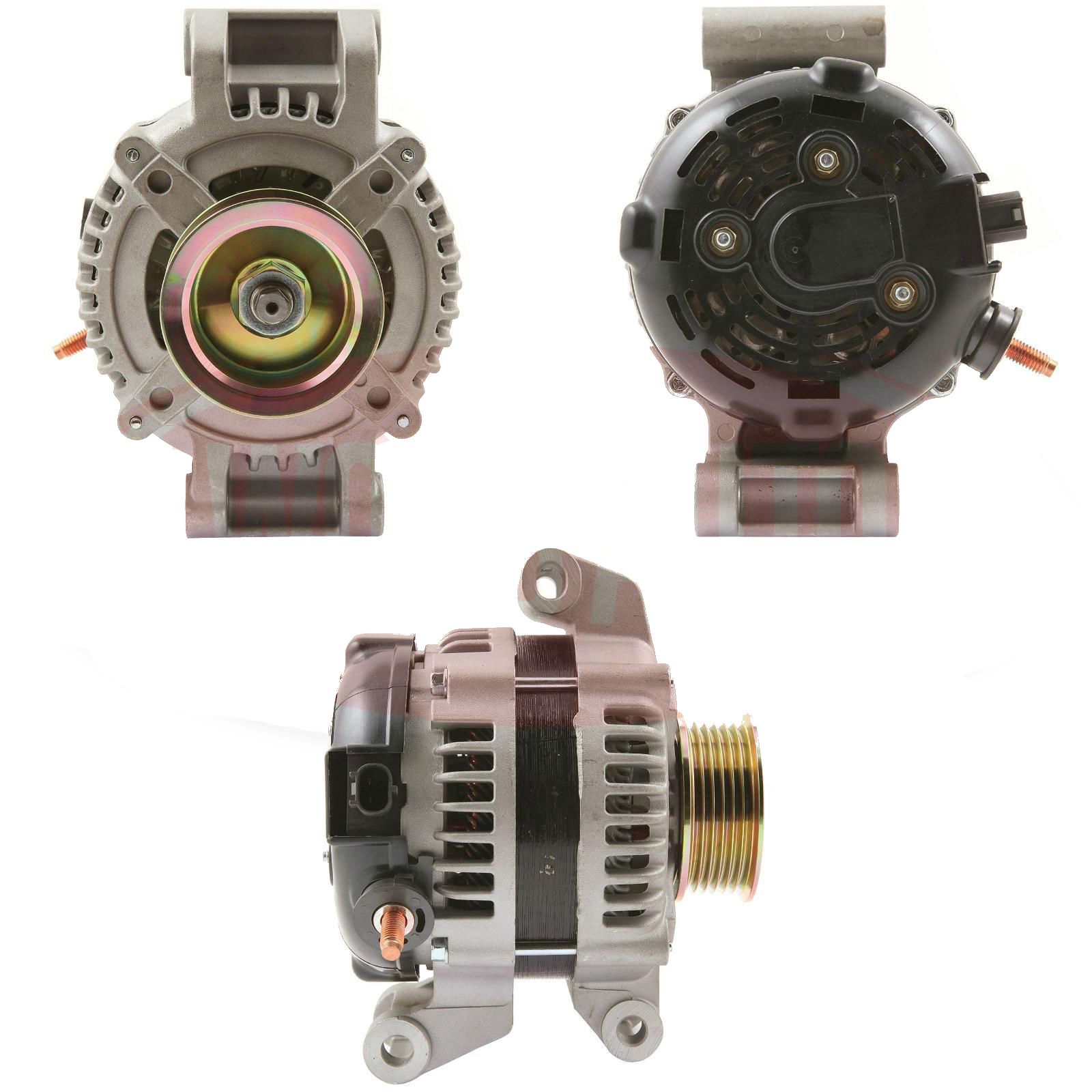

| Detailed | This is a New Style 421000 Series Denso Alternator for the 2.4L Chrysler Engine which Mounts Sideways Similar to the 7750 7768 etc. The Unit Actually Mounts Upside Down (Bottom Mounts are on Top)
the B+ Stud is at 4:00 and the Plug is at 3:00. This Unit Uses a Conventional 6-Groove Pulley. The Later 421000-0062 and 421000-0230 Have an Oblong Shaped Top Mounting Ear (If the Unit is Mounted Upside Down in the Car It would Actually Be the Bottom Mount) while the Original 421000-0060 421000-00601 Have a Round Mounting Hole. Chrysler Superseeded the Original Unit 495496 to the Later Version 495497 So the Shape of the Hole May Not Matter (?) |
| AND0298 | ARROWHEAD |
| 13868 | LESTER |
| 290-5120 | PIC |
| 334-1403 | AC DELCO |
| 210-13868 | BARSANCO |
| 13868 | BBB |
| 13868 | BBB NEW |
| 186-6413 | BECK ARNLEY |
| 04606755AA | CHRYSLER |
| 04606755AB | CHRYSLER |
| 4606755AA | CHRYSLER |
| 4606755AB | CHRYSLER |
| 121000-2520 | DENSO |
| 421000-0060 | DENSO |
| 421000-0061 | DENSO |
| 421000-0062 | DENSO |
| 5-121000-252 | DENSO |
| 210-0516 | DENSO FIRST TIME FIT |
| A-8904 | DIXIE |
| 10608 | EXCEL |
| Denso Hairpin | FAMILY |
| 400-52113 | J & N |
| LRA03263 | LUCAS ELECTRICAL EUROPE |
| 13868 | MPA |
| 213-9474 | NAPA POWER PREMIUM PLUS |
| 13-9474 | NAPA POWER SUPREME |
| A2868 | USA INDUSTRIES |
| 1-2324-01ND | WAI |
| 90-29-5368 | WILSON |
| 90-29-5368 | WILSON NEW |
| 12276 | WORLDWIDE |
| 94108 | WORLDWIDE |
| CHRYSLER | Auto and Light Truck | SEBRING | 2001 | 2.4L(148) L4 |
| CHRYSLER | Auto and Light Truck | SEBRING | 2001 | 2.7L(167) V6 |
| CHRYSLER | Auto and Light Truck | SEBRING | 2002 | 2.4L(148) L4 |
| CHRYSLER | Auto and Light Truck | SEBRING | 2002 | 2.7L(167) V6 |
| CHRYSLER | Auto and Light Truck | SEBRING | 2003 | 2.4L(148) L4 |
| CHRYSLER | Auto and Light Truck | SEBRING | 2003 | 2.7L(167) V6 |
| CHRYSLER | Auto and Light Truck | SEBRING | 2004 | 2.7L(167) V6 |
| CHRYSLER | Auto and Light Truck | SEBRING | 2005 | 2.7L(167) V6 |
| CHRYSLER | Auto and Light Truck | SEBRING | 2006 | 2.7L(167) V6 |
| DODGE | Auto and Light Truck | STRATUS | 2001 | 2.4L(148) L4 |
| DODGE | Auto and Light Truck | STRATUS | 2001 | 2.7L(167) V6 |
| DODGE | Auto and Light Truck | STRATUS | 2002 | 2.4L(148) L4 |
| DODGE | Auto and Light Truck | STRATUS | 2002 | 2.7L(167) V6 |
| DODGE | Auto and Light Truck | STRATUS | 2003 | 2.4L(148) L4 |
| DODGE | Auto and Light Truck | STRATUS | 2003 | 2.7L(167) V6 |
| DODGE | Auto and Light Truck | STRATUS | 2004 | 2.7L(167) V6 |
| DODGE | Auto and Light Truck | STRATUS | 2005 | 2.7L(167) V6 |
| DODGE | Auto and Light Truck | STRATUS | 2006 | 2.7L(167) V6 |
| BRG0005 | ND949100-2250 | BEARING - ROLLER |
| BRG0014 | ND949100-2790 | BEARING - ROLLER |
| AND7501 | ND021660-0390 | BRUSH - ALTERNATOR |
| | | BRUSH COVER |
| AND1308 | | BRUSH HOLDER - ALTERNATOR |
| | | COVER - RECTIFIER |
| IHW2612 | ND021506-0070 | DUST SHIELD - SRE BRG |
| AND1628 | | INSULATOR - ALT. B+ STUD |
| AND1625 | ND021605-3070 | INSULATOR - ALT. B+ STUD |
| | | PLUG CODE |
| AND5007 | ND021041-5530 | PULLEY |
| AND1239 | ND021580-5891 | RECTIFIER |
| | ND021200-8160 | ROTOR |
| | | SEAL - RUBBER - B/H TO COVER |
| AND3501 | | SLIP RING |
| AND4030 | ND021100-4940 | STATOR |
| AND1640 | | TERMINAL BLOCK - ALTERNATOR |
| | | TEST LEAD |
| HDW1326 | | THRU BOLT - ALT. |
| | | WIRE / PLUG - ALT. |
| AND9207 | | WIRE / PLUG - ALT. |
