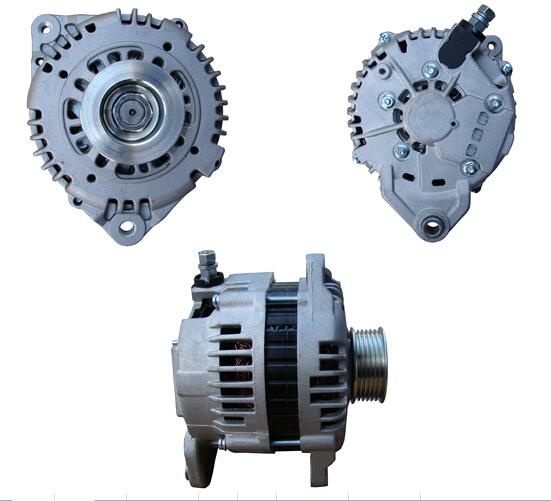

| Unit Type | Alternator |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Amperage | 110 |
| Pulley Class | S6 |
| Regulator | IR |
| Manufacturer | HITACHI |
| Brief | NISSAN MAXIMA, INFINITI I30 1995-99
6-GROOVE PULLEY 62mm OD
SEARCH: 487925 (125 AMP VERSION) |
| Detailed | This is a 110A Version of the 125A 13612. Both Units Fit the Nissan Maxima and Infiniti I30. Nissan Has Recalled the 1997 (2/97 Thru 2/98) Maxima and Infiniti I30 With One or Both of the Alternators Used (Recall #02V171000 - See 13612) Because One of the Diodes Used in the Alternator May Have Been Damaged When Built. This Can Eventually Result in Failure of the Diode and an Electrical Short Which Could Melt the Plastic Housing. The Recall Notice Goes on to Say That a Fire Could Result If the Combustible Gas Emitted By the Melting Plastic Does Not Disperse (Properly). Also it is Critical That the Stators and Rear Housings on the 13612 and 13639 are NOT Mixed Up as the Stator on the 13612 is Wider Than the 13639 and There is a Different Bushing on the Rear Bottom Mounting Hole to Compensate so the Distance Between the Inside of the Front and Inside of the Bushing (Which is Basically the Length of the Mounting Spool in the Vehicle) is 79mm. If the Stator and Rear Housings are Mixed Up at All Then the Spacing May Vary and There Could Be a Problem With Housings Breaking When the Units are Installed. |
| MFG# | MFG NAME |
|---|
| AHI0018 | ARROWHEAD |
| 13639 | LESTER |
| 204-316 | PIC |
| 334-2041 | AC DELCO |
| 200-13639 | BARSANCO |
| 13639 | BBB |
| 11709 | BBB (OLD) |
| 13639 | BBB NEW |
| N13639 | BBB NEW |
| B13639 | BBB PACE |
| 186-0773 | BECK ARNLEY |
| 111381 | CARGO |
| A-8985 | DIXIE |
| 913639 | DUBOIS |
| 10350 | EXCEL |
| LR1110-705 | HITACHI |
| LR1110-705B | HITACHI |
| 400-44006 | J & N |
| LRA01755 | LUCAS ELECTRICAL EUROPE |
| 47-2035 | MINNPAR |
| 15938 | MPA |
| 13-8986 | NAPA |
| 1N-8986 | NAPA POWER NEW |
| 213-8986 | NAPA POWER PREMIUM PLUS |
| 13-8986 | NAPA POWER SUPREME |
| 23100-31U01 | NISSAN |
| ALT-3511 | NSA |
| AL-13639 | RCP |
| A2075 | USA INDUSTRIES |
| 437683 | VALEO REMAN |
| 1-2098-01HI | WAI |
| 90-25-1075 | WILSON |
| 90-25-1075 | WILSON NEW |
| 90-25-1075N | WILSON NEW |
| ALT3511 | WOOD AUTO |
| 13402 | WORLDWIDE |
| MAKE | TYPE | MODEL | YEAR | ENGINE |
|---|
| NISSAN | Auto and Light Truck | MAXIMA | 1995 | 3.0L |
| NISSAN | Auto and Light Truck | MAXIMA | 1996 | 3.0L |
| NISSAN | Auto and Light Truck | MAXIMA | 1997 | 3.0L |
| AEP Number | AEP (OEM) | PART TYPE |
|---|
| AHI1650 |
| BAFFLE |
| BRG0054 | 35-2710E | BEARING - ROLLER |
| BRG0107 | 35-2710AE | BEARING - ROLLER |
| BRG0024 | B1120905533 | BEARING - ROLLER |
| AHI7510 |
| BRUSH - ALTERNATOR |
| AHI1319 |
| BRUSH HOLDER - ALTERNATOR |
|
| CAPACITOR |
| AHI1406 |
| DIODE - NEGATIVE |
| AHI1407 |
| DIODE - POSITIVE |
| AHI1604 |
| INSULATOR - ALT. B+ STUD |
|
| INSULATOR - ALT. B+ STUD |
|
| PLUG CODE |
| AHI5005 |
| PULLEY |
| AHI1248 |
| RECTIFIER |
| AHI6039 |
| REGULATOR |
|
| REGULATOR INSERT |
| AHI3014 |
| ROTOR |
| AHI3502 |
| SLIP RING |
| AHI4014 |
| STATOR |
|
| TEST LEAD |
| SSP0202 |
| TEST LEAD |
We control the raw material with strict standard, especially for the copper wire. We use 10# steel and good magnet materials.
Production Equipment:
The armature and stator are produced by automatic equipment.
Inspection equipment:
We have more than 60 quality inspection equipment. We can inspect all items according to starter GB standard and analyze the quality differences.
Armature, stator, solenoid switch and the starter assembly are all 100% inspected.
Whole set laboratory equipment:
We have whole set laboratory equipment for the starter performance test.
Market share:
We are No 1 for single cylinder diesel engine starter production in China. The annual selling quantity is more than 400000 sets.
Experiences:
Plentiful Experience to ensure quality
Most of our workers are with more than 10 years even 20 years experiences.
Our R&D engineers are also with more than 20 years experiences.
9. After-sales service:
Good and fast response for after- sale Services
Once we receive quality problems complaint, we will reply customer within 5 hours, if domestic customers, we our engineers will go to solve the problem in the spot as quick as possible.
Competitive price ------
Over 90% parts produced by our own factory
Regular Starters, Next Day Delivery.
Save Money Repair it, Do not replace it.
1 year warranty
100% brand new product
Major product family:
Alt: CS, AD, ND, Ford, SI, Leece Neville, Marelli, Bosch, Valeo, Mitsubishi, Lucas, etc.
Str: Ford PMGR, PG260D/G/L/F1/F2/M, Bosch, Valeo, Mitsubishi, etc.
Market (%):
North America 60%; Middle East 15%; Europe 15%; Local 10%.
We are specialized in Auto alternator and starter motor since 2000. Quality first, price second. Usually, our alternator and starter motor can match with each other smoothly in the same model Vehicle.
Our company boasts a high-quality management team from top to bottom for the purpose of an efficient operation system. We control every part and every working procedure strictly because we regard product quality as a basis of our corporate development. Based on the original ISO9001: 2000 International Quality Management System, all links of our production and management are strictly guided by the standard of ISO/TS16949
Ningbo Hi-Tech Altering Motor Co., Ltd.
Factory established 1996.
Specialized in Heavy Duty diesel alternator and starter motor.
Warranty is one year after operation.
Delivery is 45 days after confirming the order.
NingBo Hi-Tech Altering Tech. Co., Ltd. Locates in Ningbo Hi-tech Zone, east of China and we are having specialized in alternator and starter motor industry since 2000. We have a full set of advanced equipments for production, inspection and testing. Now its annual production capacity is one million auto alternators and half a million auto starters. The company has a powerful R&D capability, which ensures it lead position of the manufacturing profession in the speed & quality of new products development.
The main products of ALTERING currently have over 50 series ( over 500 part numbers ) of auto alternators and auto starters, such as, PMGR, LUCAS, MARELLI, BOSCH, VALEO and so on, which are sold to America, Europe, Middle East, Southeast Asia, etc...We turnover ranks high in the manufacturing profession. The company is making efforts to expand business of aftermarket and OEM as well. Up to now, We have been a supplier of several domestic vehicle manufacturers.
We pursues the corporate philosophy of "quality first, prestige first" all the time, and keeps developing more and more new products. We welcome peoples of all circles to visit or call for business cooperation.
