| Unit Type | Starter |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Teeth | 10 |
| Manufacturer | DELCO |
| Starter Type | DD |
| Brief | CATERPILLAR, CUMMINS ENGINES, IHC TRUCKS 1980-93
ADDL INFO: DELCO 37MT STARTER
ADDL INFO: DE HOUSING #1986333
ADDL INFO: 1/2 INCH MOUNTING HOLES
ADDL INFO: 3/8 INCH SOLENOID BATTERY POST
ADDL INFO: 480813 480814 480815 480816ALL INTERCHANGE
SEARCH: 481003 (38MT RELACEMENT) |

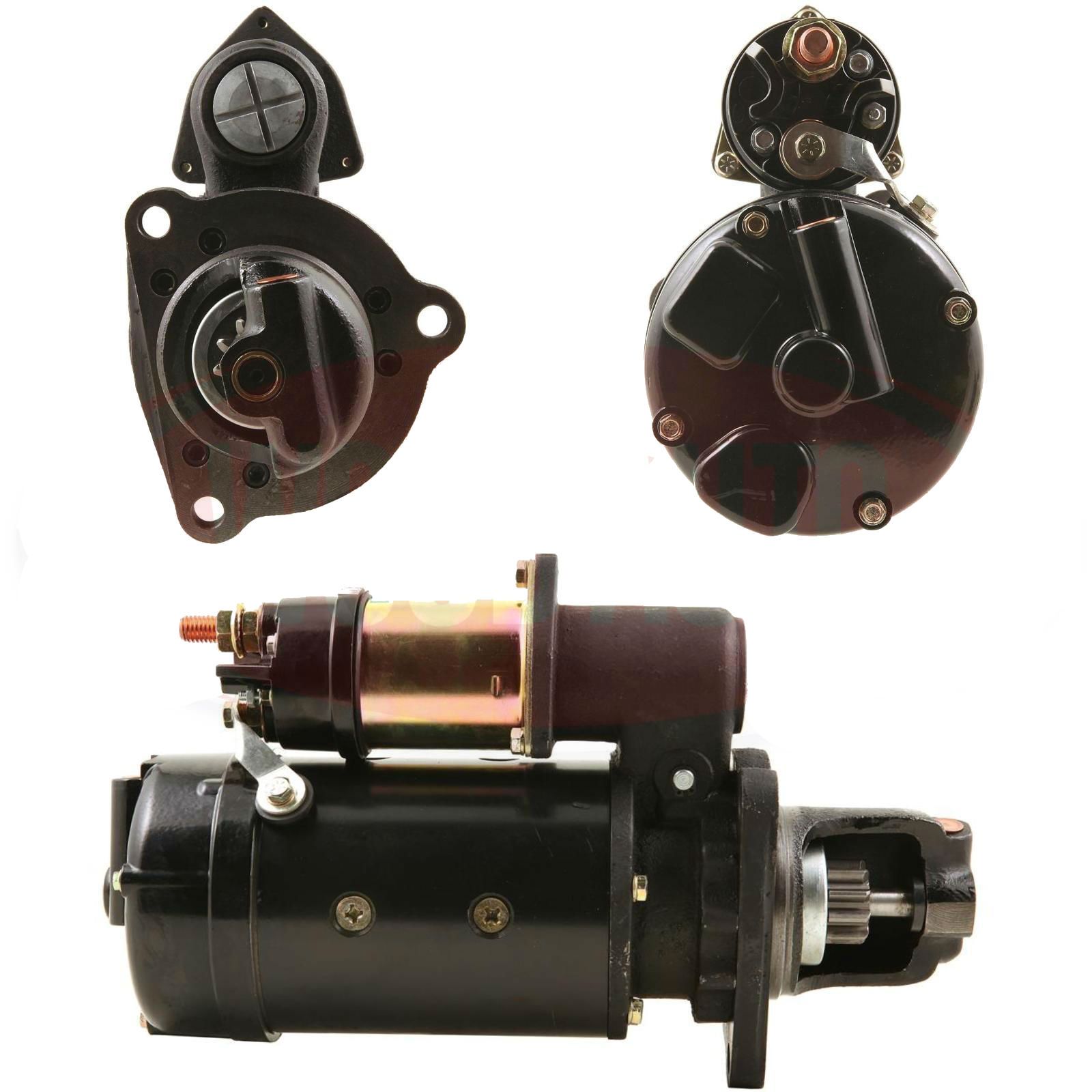

| Detailed | This is a Delco 37MT (12V) Starter, Using DE Housing #1986333, a 10-T Drive, No Case Ground Studs, and a 1/2 (Upgraded From Those Few That Came with a 3/8) Battery Stud. All Versions Came with a 3-Terminal Solenoid, Although Some Originally Came with 3/8 Battery Studs, Most Have 1/2 Studs Upon Replacement. |
| SDR0027 | ARROWHEAD |
| 3500-0108 | ATLANTIC |
| 6391 | LESTER |
| 141-310 | PIC |
| 323-834 | AC DELCO |
| CM-8040 | ACE |
| 510-6391 | BARSANCO |
| 6391 | BBB HD |
| 113124 | CARGO |
| 3604672RX | CUMMINS |
| 10461069 | DELCO |
| 10461108 | DELCO |
| 1990312 | DELCO |
| TS-1547 | DIXIE |
| 2919 | EXCEL |
| 37MT | FAMILY |
| 410-12193 | J & N |
| 410-12193R | J & N |
| 410-12503 | J & N |
| 410-12068 | J & N (OLD) |
| 410-12068R | J & N (OLD) |
| 57-2400 | MINNPAR |
| X76391 | MPA HD |
| X76391N | MPA NEW HD |
| 46-7059 | NAPA |
| 76391 | NAPA HD |
| 76391N | NAPA NEW HD |
| STR-4241 | NSA |
| 23588A | RCP |
| 50-158 | WAI |
| 50-158-1 | WAI SALES |
| 91-01-4140 | WILSON |
| 91-01-4140 | WILSON HD |
| 63110 | WORLDWIDE |
| CATERPILLAR | Tractors - Farm | D3B-SA | 1985 | Cat. 3204 |
| CATERPILLAR | Tractors - Farm | D3B-SA | 1986 | Cat. 3204 |
| CATERPILLAR | Tractors - Farm | D3B-SA | 1987 | Cat. 3204 |
| CUMMINS ENGINES | Engines - Industrial | B Series | 1980 | 5.9L |
| CUMMINS ENGINES | Engines - Industrial | B Series | 1981 | 5.9L |
| CUMMINS ENGINES | Engines - Industrial | B Series | 1982 | 5.9L |
| CUMMINS ENGINES | Engines - Industrial | B Series | 1983 | 5.9L |
| CUMMINS ENGINES | Engines - Industrial | B Series | 1984 | 5.9L |
| CUMMINS ENGINES | Engines - Industrial | B Series | 1985 | 5.9L |
| INTERNATIONAL | Medium & Heavy-Duty Trucks | Cargostar | 1985 | IHC 6.9L |
| INTERNATIONAL | Medium & Heavy-Duty Trucks | Cargostar | 1986 | IHC 6.9L |
| INTERNATIONAL | Medium & Heavy-Duty Trucks | Cargostar | 1987 | IHC 6.9L |
| SDR3009 | | ARMATURE - STARTER |
| SDR7523 | R-135 | BRUSH - STARTER |
| SDR1315 | | BRUSH HOLDER (EMPTY) - STR. |
| SDR1509 | | BRUSH SPRING - STARTER |
| SDR7143 | | BUSHING - D.E. AND / OR C.E. |
| SDR7162 | | BUSHING - LEVER HSG |
| SDR1016 | | CASTING - C.E. |
| SDR2407 | | CASTING - C.S. |
| | | CASTING - D.E. |
| HDW8915 | | CONNECTOR - FIELD COIL |
| SDR6621 | | CONNECTOR - FIELD COIL |
| SDR5014 | ZN0755 | DRIVE |
| SDR4513 | | FIELD COIL - STARTERS |
| SDR9203 | | O-RING - STARTER |
| HDW9115 | | O-RING - STARTER |
| HDW9114 | | O-RING - STARTER |
| HDW9120 | | O-RING - STARTER |
| HDW9124 | | O-RING - STARTER |
| SDR9202 | | O-RING - STARTER |
| SDR6457 | | PLUNGER ASSY. |
| | | POLE SHOE |
| HDW9125 | | RETAINING RING - DRIVE |
| | | SCREW - C.E. |
| HDW0403 | | SCREW - MISC. STARTER |
| HDW0608 | | SCREW - POLE SHOE |
| HDW0408 | | SCREW - SOLENOID MTG. |
| HDW0423 | | SCREW - SOLENOID MTG. |
| SDR2615 | | SEAL - C.S. HOUSING |
| SDR2513 | | SHIFT LEVER |
| HDW8006 | | SHIFT LEVER PIN |
| SDR6010 | ZM450 | SOLENOID - STARTER |
| SDR6613 | | SOLENOID BOOT |
| HDW9209 | | STOP COLLAR - DRIVE |
| HDW6510 | | WASHER - BRAKE |
| HDW3702 | | WASHER - SPACER (METAL) |
